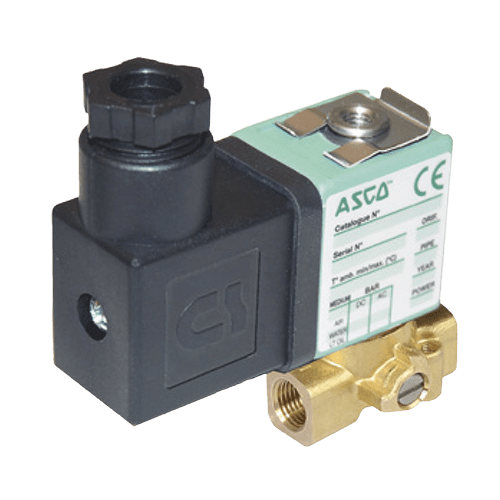

    G256 Solenoid Valves

    Solenoidový ventil G256
    • series of small solenoid valves designed for water, air, oil and non-fluid gases
    • directly controlled design with 2/2 NC and 2/2 NO functions; body in brass or AISI 316 stainless steel with G1/8" threaded connection
    • standard with viton FPM seals for medium temperatures -10 to +100 °C; maximum medium viscosity 40 cSt, changeover time 5-10 ms
    • includes valve, coil with selected voltage and standard DIN 43650 connector

    Solenoid valves G256 in brass
    Ordering
    number    		 Functions Thread
    "    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Min. pressure
    bar    		 Operating pressure bar
    AC air DC air AC water DC water
    G256NC-18A... 2/2NC 1/8" 1,2 0,8 0 28 20 28 20
    G256NC-18B... 2/2NC 1/8" 1,6 1,33 0 20 12 20 12
    G256NC-18C... 2/2NC 1/8" 2,0 1,83 0 15 6 15 6
    G256NC-18D... 2/2NC 1/8" 2,4 2,16 0 12 4 12 4
    G256NO-18A... 2/2 NO 1/8" 1,2 0,8 0 10 10 10 10

    G256 stainless steel solenoid valves
    Ordering
    number    		 Functions Thread
    "
    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Min. pressure
    bar    		 Operating pressure bar
    AC air DC air AC water DC water
    G256NCS-18A... 2/2NC 1/8" 1,2 0,8 0 28 20 28 20
    G256NCS-18B... 2/2NC 1/8" 1,6 1,33 0 20 12 20 12
    G256NCS-18C... 2/2NC 1/8" 2,0 1,83 0 15 6 15 6
    G256NCS-18D... 2/2NC 1/8" 2,4 2,16 0 12 4 12 4
    G256NOS-18A... 2/2 NO 1/8" 1,2 0,8 0 10 10 10 10
