    Home / Valves and automation / Solenoid valves; electromagnetic valves / Solenoid valves G238S; indirectly controlled, 2/2 NC and 2/2 NO function, stainless steel

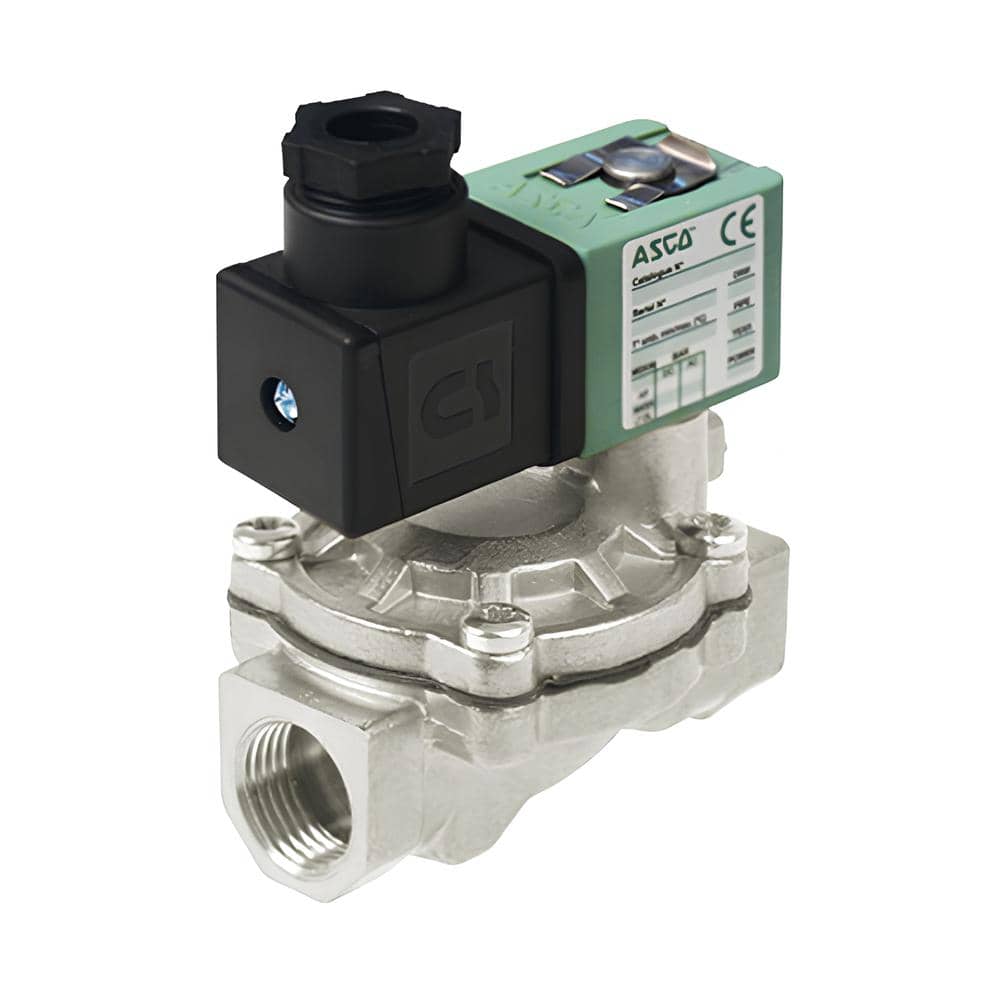

    G238S Solenoid Valves

    Solenoidový ventil nerezový G238S
    • solenoid valve series designed for water, air, non-fluid gases and other media compatible with the materials used
    • indirectly controlled design with a required pressure of at least 0.35 bar
    • with function 2/2 NC - no voltage closed or with function 2/2 NO - no voltage open
    • aISI316L stainless steel body with threaded connection, with FPM gasket for medium temperatures 0 to +130 °C
    • includes valve, coil with selected voltage and standard ISO 4400 or DIN 43650 connector depending on size

    Solenoid valves G238S with NC function
    Ordering
    number    		 Functions Thread
    "    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Minimum pressure
    bar    		 Operating pressure bar
    AC DC
    G238NCS-38... 2/2NC 3/8" 13,5 41,7 0,35 12 12
    G238NCS-12... 2/2NC 1/2" 13,5 63,3 0,35 12 12
    G238NCS-34... 2/2NC 3/4" 18 83,3 0,35 10 10
    G238NCS-10... 2/2NC 1" 24 200 0,35 10 10

    Solenoid valves G238S with NO function
    Ordering
    number    		 Functions Thread
    "    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Minimum pressure
    bar    		 Operating pressure bar
    AC DC
    G238NOS-38... 2/2 NO 3/8" 13,5 41,7 0,35 12 12
    G238NOS-12... 2/2 NO 1/2" 13,5 63,3 0,35 12 12
    G238NOS-34... 2/2 NO 3/4" 18 83,3 0,35 10 10
    G238NOS-10... 2/2 NO 1" 24 200 0,35 10 10

    Bestsellers

    Stainless steel solenoid valve 2/2 NO - G238NOS-10
    from 17 946 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-10
    up to 14 days
    Code: G238NOS-10-48VDC
    Was: 17 946 Kč  (–99 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Stainless steel solenoid valve 2/2 NO - G238NOS-34
    from 15 617 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-34
    up to 14 days
    Code: G238NOS-34-48VDC
    Was: 15 617 Kč  (–99 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Stainless steel solenoid valve 2/2 NO - G238NOS-12
    from 12 425 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-12
    up to 14 days
    Code: G238NOS-12-48VDC
    Was: 12 425 Kč  (–99 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Stainless steel solenoid valve 2/2 NO - G238NOS-38
    from 11 568 Kč up to –100 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-38
    up to 14 days
    Code: G238NOS-38-48VDC
    Was: 11 568 Kč  (–100 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Solenoid valves G238S 10 NC stainless steel
    from 16 540 Kč up to –100 %
    Solenoid valves G238S 10 NC stainless steel
    up to 14 days
    Code: G238NCS-10-48VDC
    Was: 16 540 Kč  (–100 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Stainless steel solenoid valve 2/2 NC - G238NCS-34
    from 13 533 Kč up to –100 %
    Stainless steel solenoid valve 2/2 NC - G238NCS-34
    up to 14 days
    Code: G238NCS-34-48VDC
    Was: 13 533 Kč  (–100 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Stainless steel solenoid valve 2/2 NC - G238NCS-12
    from 11 049 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NC - G238NCS-12
    up to 14 days
    Code: G238NCS-12-48VDC
    Was: 11 049 Kč  (–99 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Stainless steel solenoid valve 2/2 NC - G238NCS-38
    from 10 411 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NC - G238NCS-38
    up to 14 days
    Code: G238NCS-38-48VDC
    Was: 10 411 Kč  (–99 %)
    from 1 Kč
    (from 1 Kč excl. VAT)
    Show more products
    8 items total
    Solenoid valves G238S 10 NC stainless steel
    from 16 540 Kč up to –100 %
    Solenoid valves G238S 10 NC stainless steel
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G1" thread. 2/2NC function, 24 mm clearance. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM sealing...

    Code: G238NCS-10-48VDC
    Stainless steel solenoid valve 2/2 NC - G238NCS-12
    from 11 049 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NC - G238NCS-12
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G1/2" thread. Function 2/2NC, clearance 13,5 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM...

    Code: G238NCS-12-48VDC
    Stainless steel solenoid valve 2/2 NC - G238NCS-34
    from 13 533 Kč up to –100 %
    Stainless steel solenoid valve 2/2 NC - G238NCS-34
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G3/4" thread. Function 2/2NC, clearance 18 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM sealing...

    Code: G238NCS-34-48VDC
    Stainless steel solenoid valve 2/2 NC - G238NCS-38
    from 10 411 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NC - G238NCS-38
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G3/8" thread. Function 2/2NC, clearance 13,5 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM...

    Code: G238NCS-38-48VDC
    Stainless steel solenoid valve 2/2 NO - G238NOS-10
    from 17 946 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-10
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G1" thread. Function 2/2NO, clearance 13,5 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM sealing...

    Code: G238NOS-10-48VDC
    Stainless steel solenoid valve 2/2 NO - G238NOS-12
    from 12 425 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-12
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G1/2" thread. Function 2/2NO, clearance 13,5 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM...

    Code: G238NOS-12-48VDC
    Stainless steel solenoid valve 2/2 NO - G238NOS-34
    from 15 617 Kč up to –99 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-34
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G3/8" thread. Function 2/2NO, clearance 13,5 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM...

    Code: G238NOS-34-48VDC
    Stainless steel solenoid valve 2/2 NO - G238NOS-38
    from 11 568 Kč up to –100 %
    Stainless steel solenoid valve 2/2 NO - G238NOS-38
    up to 14 days
    from 1 Kč excl. VAT
    from 1 Kč / pcs
    Detail

    G238S series indirect solenoid valve with G3/8" thread. Function 2/2NO, clearance 13,5 mm. Designed for water, air, non-fluid gases. Made of stainless steel AISI316L, FPM...

    Code: G238NOS-38-48VDC
