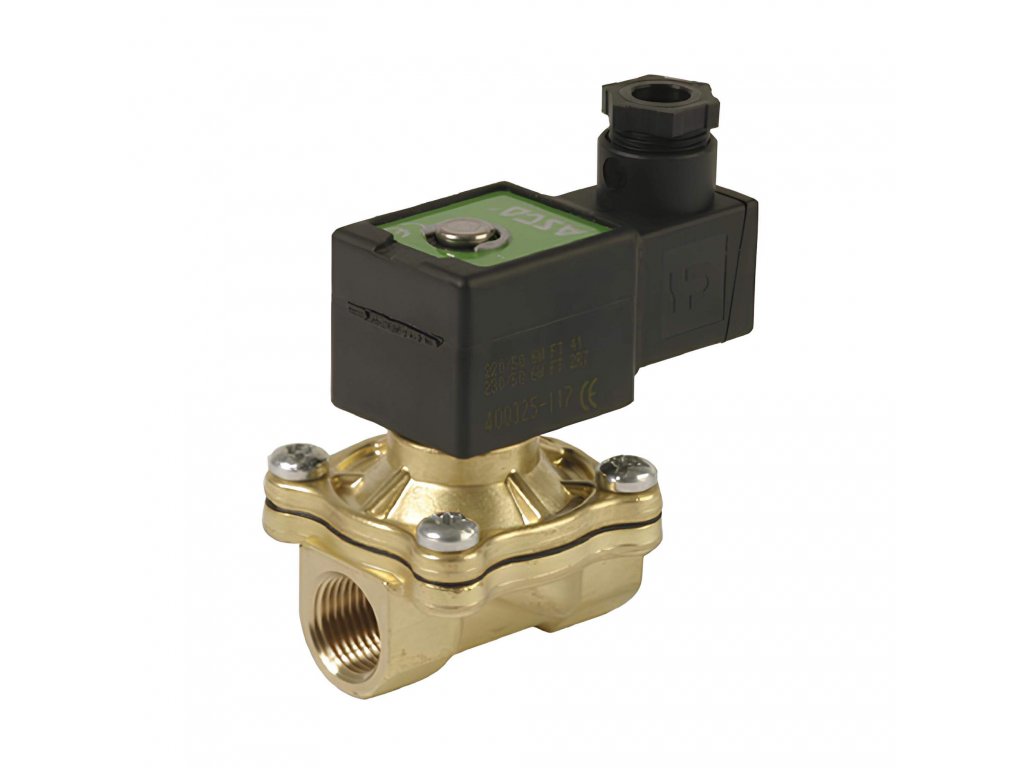

Solenoid valve brass 2/2 NC - G238-34

Code: G238-34-115VAC G238-34-230VAC G238-34-24VAC G238-34-24VDC G238-34-48VAC Choose variant
6 166 Kč 5 787 Kč from 2 856 Kč –99 % - - - –99 % up to –99 %
Solenoid valve brass 2/2 NC - G238-34
6 166 Kč 5 787 Kč from 2 856 Kč –99 % - - - –99 % up to –99 % 1 Kč / pcs 3 770 Kč / pcs 2 856 Kč / pcs 2 856 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 3 116 Kč excl. VAT 2 360 Kč excl. VAT 2 360 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days Stock (1 pcs) up to 14 days Stock (2 pcs) up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.01.2025 25.12.2024 13.01.2025 25.12.2024 13.01.2025 Choose variant
Solenoid valves series G238 with connection thread G3/4". Function 2/2NC, clearance 19 mm. Designed for controlling cold and hot water pipes with treatment against pressure surges in the pipe. Made of brass, NBR seal for temperatures -20 to +85°C. Delivery includes valve, spool and standard ISO4400 connector.

Detailed information

Product detailed description

Solenoid valve 2/2 NC - G238-34

  • series of solenoid valves designed to control cold and hot water pipes
  • directly controlled design without minimum required pressure, with 2/2 NC function - no voltage closed
  • anti-water hammer treatment
  • brass body with threaded connection, with NBR seal for medium temperatures -20 to +85 °C
  • includes valve, coil with selected voltage and standard ISO4400 connector

Additional parameters

Category: G238 Solenoid Valves
Pressure: 10 bars
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Brass
Medium: Water
Flow: 70 l/min
Brightness DN: 19
Seals: NBR
Thread: G 3/4"
Management: Directly controlled
Media temperature: -20 to +85 °C

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
