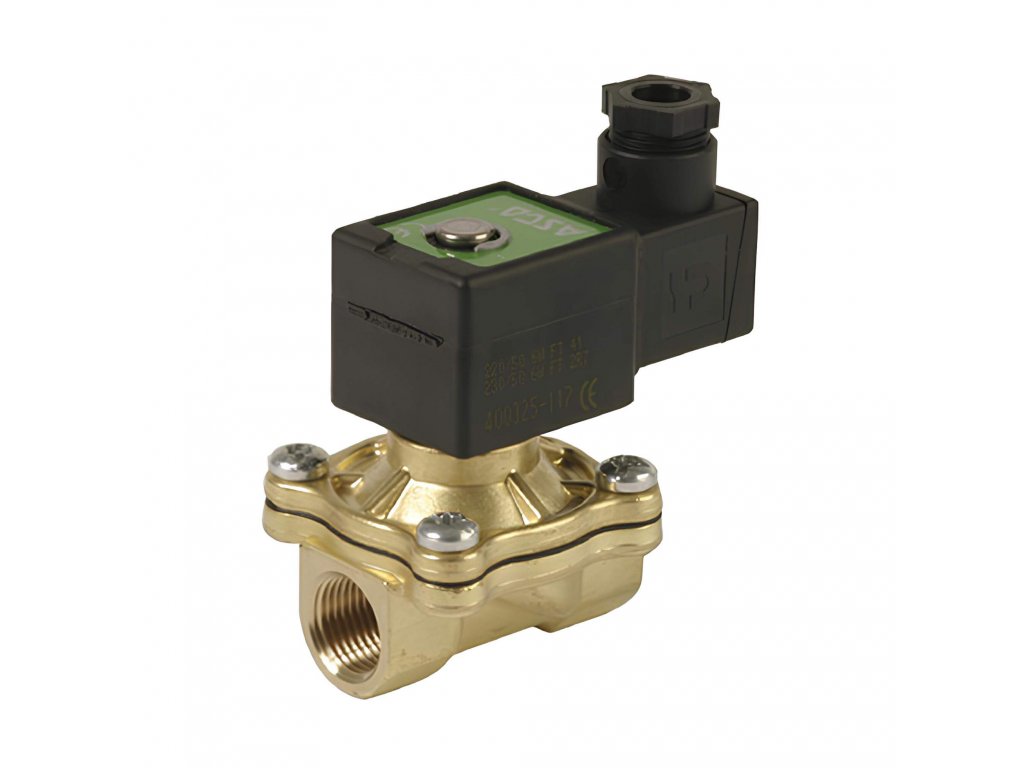

Solenoid valve brass 2/2 NC - G238-10

Code: G238-10-115VAC G238-10-230VAC G238-10-24VAC G238-10-24VDC G238-10-48VAC G238-10-48VDC Choose variant
6 290 Kč 6 290 Kč 8 985 Kč from 3 780 Kč –99 % - - - –99 % –99 % up to –99 %
Solenoid valve brass 2/2 NC - G238-10
6 290 Kč 6 290 Kč 8 985 Kč from 3 780 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 3 780 Kč / pcs 4 307 Kč / pcs 4 307 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 3 124 Kč excl. VAT 3 560 Kč excl. VAT 3 560 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days Stock (3 pcs) up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 18.10.2024 18.10.2024 30.09.2024 18.10.2024 18.10.2024 Choose variant
Solenoid valves series G238 with connection thread G1". Function 2/2NC, clearance 25 mm. Designed for controlling cold and hot water pipes with treatment against pressure surges in the pipe. Made of brass, NBR seal for temperatures -20 to +85°C. Delivery includes valve, spool and standard ISO4400 connector.

Detailed information

Product detailed description

Solenoid valve 2/2 NC - G238-10

  • series of solenoid valves designed to control cold and hot water pipes
  • directly controlled design without minimum required pressure, with 2/2 NC function - no voltage closed
  • anti-water hammer treatment
  • brass body with threaded connection, with NBR seal for medium temperatures -20 to +85 °C
  • includes valve, coil with selected voltage and standard ISO4400 connector

Additional parameters

Category: G238 Solenoid Valves
Pressure: 10 bars
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Brass
Medium: Water
Flow: 166 l/min
Brightness DN: 25
Seals: NBR
Thread: G 1"
Management: Directly controlled
Media temperature: -20 to +85 °C

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
