Solenoid valves series G220 with connection thread G1". Function 2/2NC, clearance 25 mm. Designed for hot water and steam. Made of brass, PTFE seal for temperatures +177°C. Delivery includes valve, spool and standard ISO4400 or DIN43650 connector depending on size.

Detailed information

Product detailed description

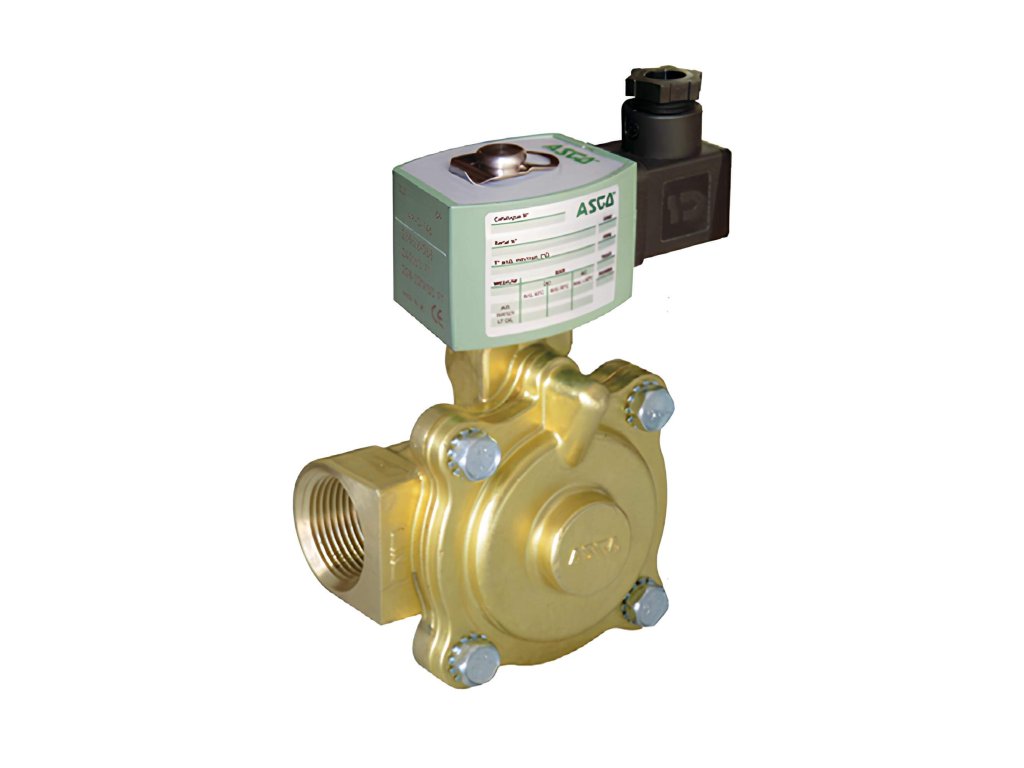

Solenoid valve 2/2 NC G220 1"

  • solenoid valve series for hot water up to +98°C and steam up to +177°C
  • indirectly controlled design with required pressure of at least 0.3 bar, with 2/2 NC function - no voltage closed
  • body made of brass with threaded connection, with PTFE gasket
  • includes valve, coil with selected voltage and standard ISO4400 or DIN 43650 connector depending on size
  • suitable for applications such as sterilization, autoclaves, mould cleaning, foundries, etc.

Additional parameters

Category: Solenoid valves E220 for hot water
Pressure: 9 bar
Coil: 24 V AC, 48 V AC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Brass
Medium: Water, Steam
Flow: 166,6 l/min
Brightness DN: 25
Seals: PTFE
Thread: G 1"
Management: Indirectly controlled
Media temperature: -10 to +180 °C
