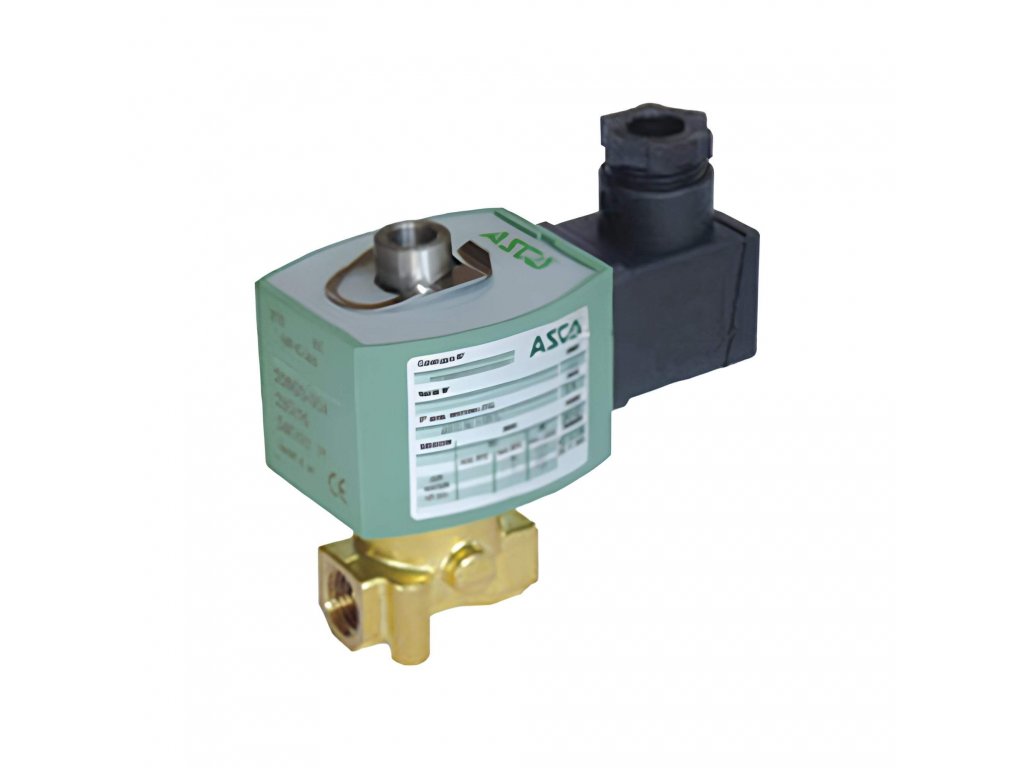

Brass solenoid valve 3/2NO - E314NO-14B

Code: E314NO-14B-115VAC E314NO-14B-230VAC E314NO-14B-24VAC E314NO-14B-24VDC E314NO-14B-48VAC E314NO-14B-48VDC Choose variant
5 491 Kč 5 493 Kč 5 491 Kč from 3 220 Kč –99 % - - - –99 % –99 % up to –99 %
Brass solenoid valve 3/2NO - E314NO-14B
5 491 Kč 5 493 Kč 5 491 Kč from 3 220 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 3 220 Kč / pcs 3 771 Kč / pcs 3 220 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 2 661 Kč excl. VAT 3 117 Kč excl. VAT 2 661 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 18.10.2024 Choose variant

Solenoid valves series E314 with connection thread G1/4". Function 3/2NO, clearance 2,4 mm. Maximum viscosity of the medium 65 cSt. Made of brass, NBR seal for temperatures -25 to +90°C. Delivery includes valve, spool and standard DIN43650 connector.

Detailed information

Product detailed description

Solenoid valve E314 NO type 14B

  • series of small solenoid valves designed for water, air, oil and non-fluid gases
  • directly controlled design with 3/2 NC and 3/2 NO functions
  • body in brass or AISI 316 stainless steel with threaded connection G1/4"
  • standard with NBR seals for medium temperatures -25 to +90 °C
  • maximum medium viscosity 65 cSt, changeover time 5-25 ms
  • includes valve, coil with selected voltage and standard DIN 43650 connector

Additional parameters

Category: Solenoid valves E314
Pressure: 12 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Realignment time: 5-25 ms
Functions: 3/2 NO
Material: Brass
Medium: Air, Water, Oil, Netečné plyny
Flow: 2,8 l/min
Brightness DN: 2,4
Seals: NBR
Thread: G 1/4"
Management: Directly controlled
Media temperature: -25 to +90 °C
