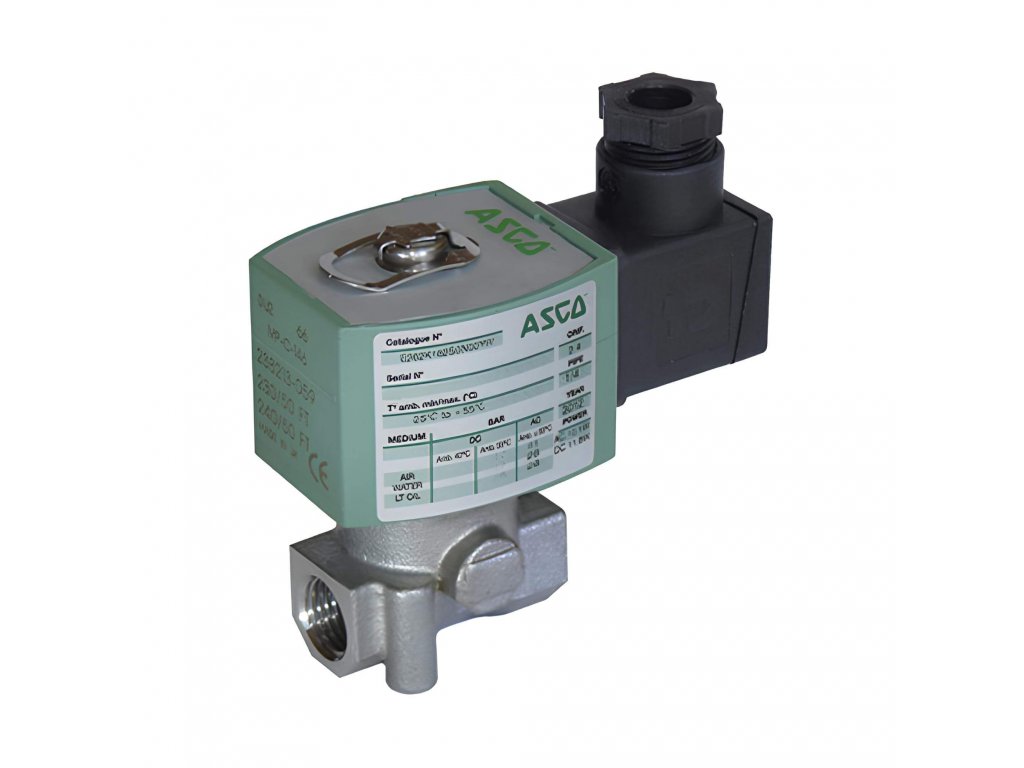

Stainless steel solenoid valve E262NOS-14E
Code: E262NOS-14E-115VAC E262NOS-14E-230VAC E262NOS-14E-24VAC E262NOS-14E-24VDC E262NOS-14E-48VAC E262NOS-14E-48VDC Choose variantProduct detailed description
Solenoid valve stainless steel E262 NO type 14E
- series of small solenoid valves designed for water, air, oil and non-fluid gases
- directly controlled design with 2/2 NC and 2/2 NO functions; brass body with G1/4" threaded connection
- standard with NBR seals for medium temperatures -25 to +80 °C; maximum medium viscosity 65 cSt, changeover time 5-25 ms
- includes valve, coil with selected voltage and standard DIN 43650 connector
Additional parameters
Category: | Solenoid valves E262 |
---|---|
Pressure: | 3 bar |
Coil: | 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC |
Realignment time: | 5-25 ms |
Functions: | 2/2 NO |
Material: | Stainless steel |
Medium: | Air, Water, Oil, Netečné plyny |
Flow: | 12 l/min |
Brightness DN: | 5,6 |
Seals: | NBR |
Thread: | G 1/4" |
Management: | Directly controlled |
Media temperature: | -25 to +80 °C |
Be the first who will post an article to this item!
Be the first who will post an article to this item!
Advanced Pneumatic Industries - Pneumatic Components for Automation Technology
Rich Experience Complements a Wide RangeOne of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions. |
Quality Certificate at a Good PriceFor the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses. |
The offered range from API is brought to you by our company Compressors air technology here.
