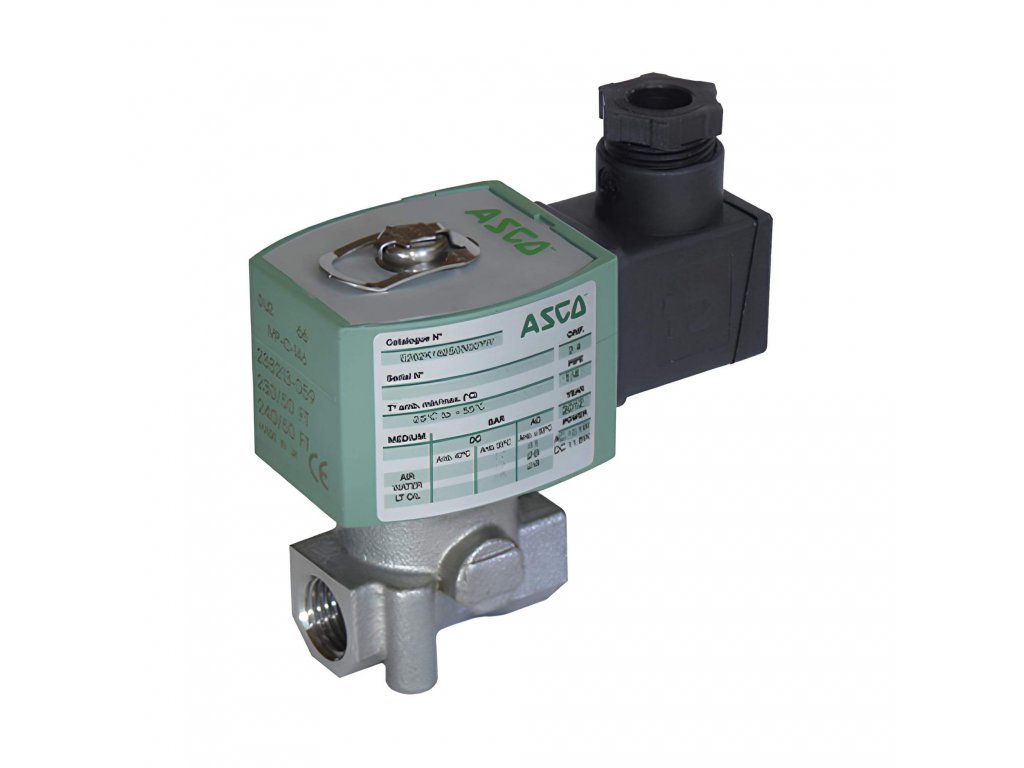

Stainless steel solenoid valve E262NCS-14D
Code: E262NCS-14D-115VAC E262NCS-14D-230VAC E262NCS-14D-24VAC E262NCS-14D-24VDC E262NCS-14D-48VAC E262NCS-14D-48VDC Choose variantProduct detailed description
Stainless steel solenoid valve E262 NC type 14D
- series of small solenoid valves designed for water, air, oil and non-fluid gases
- directly controlled design with 2/2 NC and 2/2 NO functions; brass body with G1/4" threaded connection
- standard with NBR seals for medium temperatures -25 to +80 °C; maximum medium viscosity 65 cSt, changeover time 5-25 ms
- includes valve, coil with selected voltage and standard DIN 43650 connector
Additional parameters
Category: | Solenoid valves E262 |
---|---|
Pressure: | 20 bar |
Coil: | 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC |
Realignment time: | 5-25 ms |
Functions: | 2/2 NC |
Material: | Stainless steel |
Medium: | Air, Water, Oil, Netečné plyny |
Flow: | 7,5 l/min |
Brightness DN: | 4,0 |
Seals: | NBR |
Thread: | G 1/4" |
Management: | Directly controlled |
Media temperature: | -25 to +80 °C |
