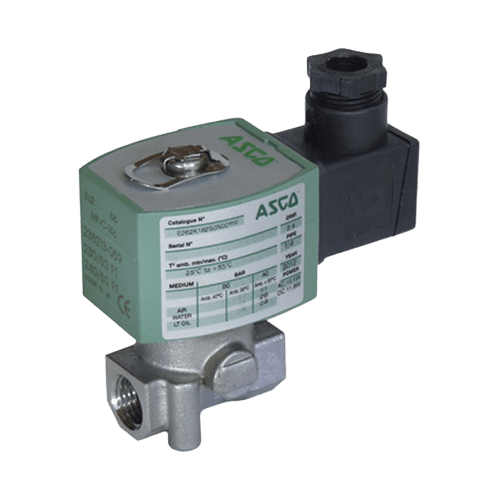

    Solenoid valves E262

    Solenoidový ventil E262
    • series of small solenoid valves designed for water, air, oil and non-fluid gases
    • directly controlled design with 2/2 NC and 2/2 NO functions; body in brass or AISI 316 stainless steel with 1/4" threaded connection
    • standard with NBR seals for medium temperatures -25 to +80 °C; maximum medium viscosity 65 cSt
    • changeover time 5-25 ms
    • includes valve, coil with selected voltage and standard DIN 43650 connector

    Solenoid valves E262 in brass
    Ordering
    number    		 Functions Thread
    "    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Minimal
    pressure
    bar    		 Operating pressure
    bar
    AC air DC air AC water DC water
    E262NC-14A... 2/2NC 1/4" 1,2 0,8 0 51 51 51 41
    E262NC-14B... 2/2NC 1/4" 2,4 3 0 34 19 24 13
    E262NC-14C... 2/2NC 1/4" 3,2 5 0 12 8 12 6,5
    E262NC-14D... 2/2NC 1/4" 4 7,5 0 14 3,5 13 3,5
    E262NC-14E... 2/2NC 1/4" 5,6 10,5 0 8,5 4 8,5 4
    E262NC-14F... 2/2NC 1/4" 7,1 12,7 0 4 1,5 5 1,5
    E262NO-14A... 2/2 NO 1/4" 1,2 0,8 0 51 44 51 38
    E262NO-14B... 2/2 NO 1/4" 2,4 3 0 18 11 15 9
    E262NO-14C... 2/2 NO 1/4" 3,2 5 0 11 6,5 10 6,5
    E262NO-14D... 2/2 NO 1/4" 4 7,8 0 6 4 6 3,5
    E262NO-14E... 2/2 NO 1/4" 5,6 12 0 3 2 3 1,7
    E262NO-14F... 2/2 NO 1/4" 7,1 13,8 0 2 1,3 2 1,1

    Solenoid valves E262 in stainless steel
    Ordering
    number    		 Functions Thread
    "    		 Luminosity
    mm    		 Flow Kv
    l/min    		 Minimal
    pressure
    bar    		 Operating pressure
    bar
    AC air DC air AC water DC water
    E262NCS-14B... 2/2NC 1/4" 2,4 3 0 40 16 28 16
    E262NCS-14C... 2/2NC 1/4" 3,2 5 0 23 7,5 20 7
    E262NCS-14D... 2/2NC 1/4" 4 7,5 0 20 7,5 14 7,5
    E262NCS-14E... 2/2NC 1/4" 5,6 10,5 0 8,5 4 8,5 4
    E262NCS-14F... 2/2NC 1/4" 7,1 12,7 0 4 1,5 5 1,5
    E262NOS-14A... 2/2 NO 1/4" 1,2 0,8 0 51 44 51 38
    E262NOS-14C... 2/2 NO 1/4" 3,2 5 0 11 6,5 10 6,5
    E262NOS-14D... 2/2 NO 1/4" 4 7,8 0 6 4 6 3,5
    E262NOS-14E... 2/2 NO 1/4" 5,6 12 0 3 2 3 1,7
    E262NOS-14F... 2/2 NO 1/4" 7,1 13,8 0 2 1,3 2 1,1
