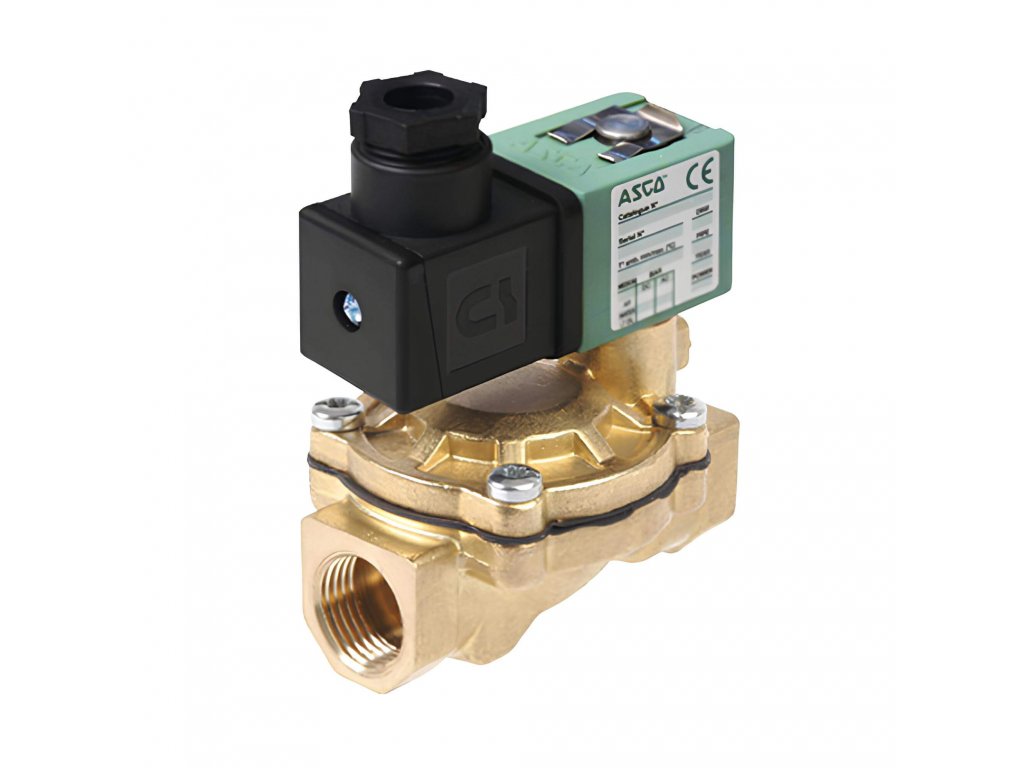

Solenoid valve 2/2 NC - E238-38A
Code: E238-38A-115VAC E238-38A-230VAC E238-38A-24VAC E238-38A-24VDC E238-38A-48VAC E238-38A-48VDC Choose variantProduct detailed description
Indirectly controlled solenoid valve G238 - 2/2 NC type 38A
- solenoid valve series designed for water, air, non-fluid gases and other media compatible with the materials used
- indirectly controlled design with required pressure of at least 0.3/0.5 bar, with 2/2 NC function - no voltage closed
- body made of brass with threaded connection, with NBR seal for medium temperatures -10 to +85 °C
- includes valve, coil with selected voltage and standard ISO4400 or DIN 43650 connector depending on size
Additional parameters
Category: | Solenoid valves E238 |
---|---|
Pressure: | 10 bars |
Coil: | 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC |
Functions: | 2/2 NC |
Material: | Brass |
Medium: | Air, Water, Oil, Netečné plyny |
Flow: | 40 l/min |
Brightness DN: | 12 |
Seals: | NBR |
Thread: | G 3/8" |
Management: | Indirectly controlled |
Media temperature: | -10 to +85 °C |
