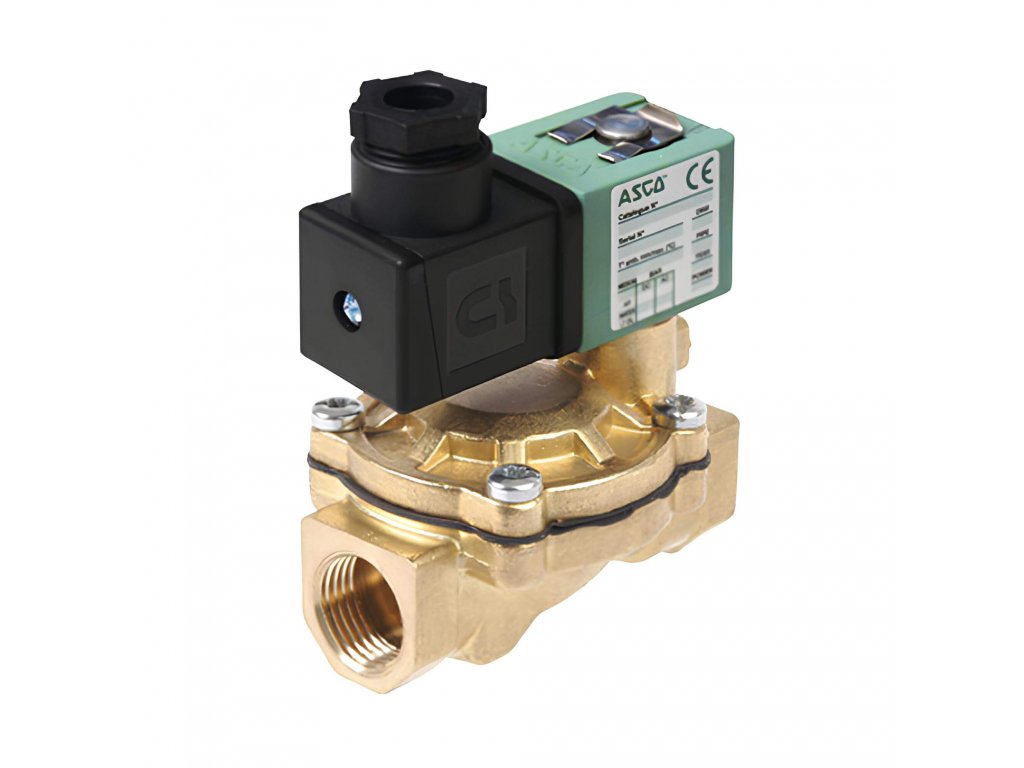

Solenoid valve 2/2 NC - E238-34B

Code: E238-34B-115VAC E238-34B-230VAC E238-34B-24VAC E238-34B-24VDC E238-34B-48VAC E238-34B-48VDC Choose variant
5 333 Kč 5 333 Kč 5 333 Kč from 4 444 Kč –99 % - - - –99 % –99 % up to –99 %
Solenoid valve 2/2 NC - E238-34B
5 333 Kč 5 333 Kč 5 333 Kč from 4 444 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 4 444 Kč / pcs 4 444 Kč / pcs 4 444 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 3 673 Kč excl. VAT 3 673 Kč excl. VAT 3 673 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
13.12.2024 13.12.2024 13.12.2024 13.12.2024 13.12.2024 13.12.2024 Choose variant

Indirectly controlled solenoid valve G238 with connection thread G3/4". Function 2/2NC, clearance 20 mm. Designed for water, air, non-fluid gases. Made of brass, NBR seal for temperatures -10 to +85°C. Delivery includes valve, spool and standard ISO4400 or DIN43650 connector depending on size.

Detailed information

Product detailed description

Indirectly controlled solenoid valve G238 - 2/2 NC type 34B

  • solenoid valve series designed for water, air, non-fluid gases and other media compatible with the materials used
  • indirectly controlled design with required pressure of at least 0.3/0.5 bar, with 2/2 NC function - no voltage closed
  • body made of brass with threaded connection, with NBR seal for medium temperatures -10 to +85 °C
  • includes valve, coil with selected voltage and standard ISO4400 or DIN 43650 connector depending on size

Additional parameters

Category: Solenoid valves E238
Pressure: 16 bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Brass
Medium: Air, Water, Oil, Netečné plyny
Flow: 110 l/min
Brightness DN: 20
Seals: NBR
Thread: G 3/4"
Management: Indirectly controlled
Media temperature: -10 to +85 °C
