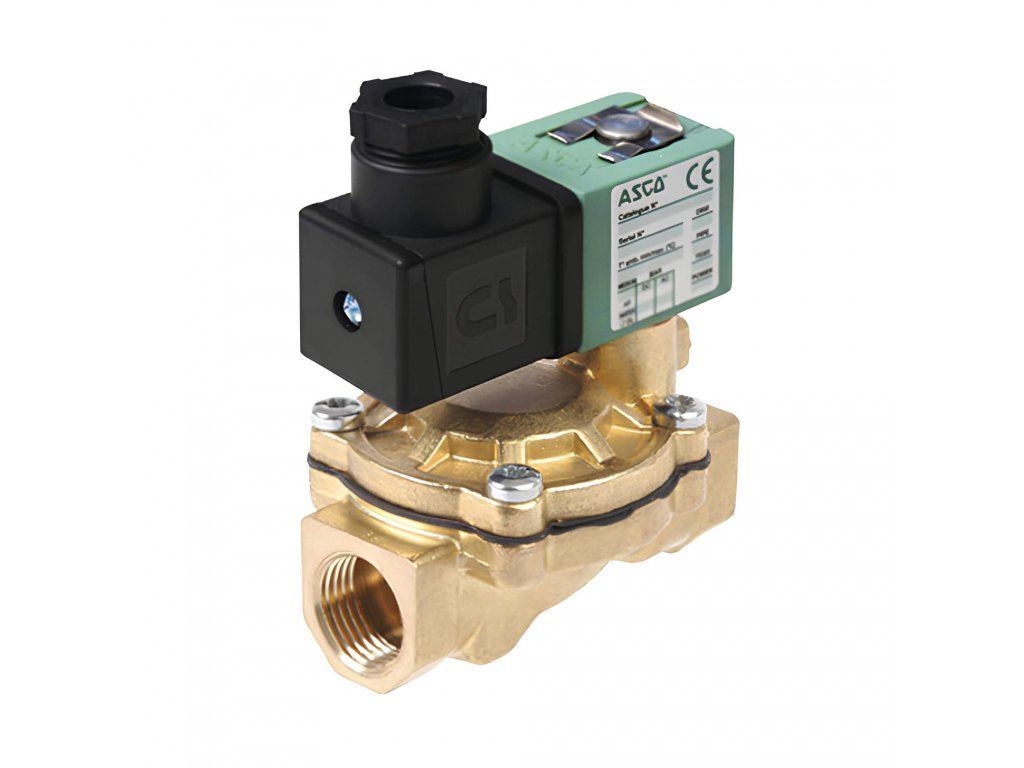

Solenoid valve 2/2 NC - E238-10A

Code: E238-10A-115VAC E238-10A-230VAC E238-10A-24VAC E238-10A-24VDC E238-10A-48VAC E238-10A-48VDC Choose variant
5 464 Kč 5 464 Kč 5 464 Kč from 3 467 Kč –99 % - - - –99 % –99 % up to –99 %
Solenoid valve 2/2 NC - E238-10A
5 464 Kč 5 464 Kč 5 464 Kč from 3 467 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 3 467 Kč / pcs 3 467 Kč / pcs 3 467 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 2 865 Kč excl. VAT 2 865 Kč excl. VAT 2 865 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days up to 14 days up to 14 days Stock (2 pcs) up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
16.12.2024 16.12.2024 16.12.2024 27.11.2024 16.12.2024 16.12.2024 Choose variant

Indirectly controlled solenoid valve G238 with connection thread G1". Function 2/2NC, clearance 25 mm. Designed for water, air, non-fluid gases. Made of brass, NBR seal for temperatures -10 to +85°C. Delivery includes valve, spool and standard ISO4400 or DIN43650 connector depending on size.

Detailed information

Product detailed description

Indirectly controlled solenoid valve G238 - 2/2 NC type 10A

  • solenoid valve series designed for water, air, non-fluid gases and other media compatible with the materials used
  • indirectly controlled design with required pressure of at least 0.3/0.5 bar, with 2/2 NC function - no voltage closed
  • body made of brass with threaded connection, with NBR seal for medium temperatures -10 to +85 °C
  • includes valve, coil with selected voltage and standard ISO4400 or DIN 43650 connector depending on size

Additional parameters

Category: Solenoid valves E238
Pressure: 10 bars
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Brass
Medium: Air, Water, Oil, Netečné plyny
Flow: 165 l/min
Brightness DN: 25
Seals: NBR
Thread: G 1"
Management: Indirectly controlled
Media temperature: -10 to +85 °C

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic components for automation technology

A wide range of products complements our extensive experience

One of the traditional suppliers of pneumatic components is API (Advanced Pneumatic Industries), which was founded in the late 1980s near Milan, Italy. More than three decades of experience have served API to improve the manufacture of all pneumatic components. At the turn of the new millennium, the company invested heavily in its own development and started its own production of valves and cylinders. Since 2007, the API catalogue contains the widest possible range in its field and the products soon travel all over the world. Today, the company offers production and assembly of valves, cylinders and mounting accessories not only in aluminium and steel, but also in stainless steel. In addition to the standard offer, API also offers the possibility of supplying solutions such as valve terminal assemblies or special ATEX designs.

api-provozovna
API

Quality certificate at a good price

For all the Italian company's product range, the customer can rely on it. These are products with good technical features, while the price tag is still within reasonable ranges. These words are confirmed by our hundreds of satisfied customers (mainly from industry) for whom API is the preferred brand. Beyond words, however, the reliability of the products is proven by meticulous quality systems such as ISO 9001, CISQ, ICIM or IQNet, whose certificates the products boast. The supply range currently includes pneumatic cylinders, grippers, swing drives, cylinder accessories and mounting brackets, solenoid, pneumatic, mechanical and manual valves, air treatment equipment, fittings, couplings and hoses.

The range of products offered by API is brought to you by our company Air Compressors here.
