Solenoid valve brass 2/2 NC - E210-12

Code: E210NC-12-115VAC E210NC-12-230VAC E210NC-12-24VAC E210NC-12-24VDC E210NC-12-48VAC E210NC-12-48VDC Choose variant
6 848 Kč 6 848 Kč 6 848 Kč from 2 490 Kč –99 % - - - –99 % –99 % up to –99 %
Solenoid valve brass 2/2 NC - E210-12
6 848 Kč 6 848 Kč 6 848 Kč from 2 490 Kč –99 % - - - –99 % –99 % up to –99 % 1 Kč / pcs 2 490 Kč / pcs 2 490 Kč / pcs 2 490 Kč / pcs 1 Kč / pcs 1 Kč / pcs from 1 Kč / pcs 1 Kč excl. VAT 2 058 Kč excl. VAT 2 058 Kč excl. VAT 2 058 Kč excl. VAT 1 Kč excl. VAT 1 Kč excl. VAT from 1 Kč excl. VAT
up to 14 days Stock (3 pcs) up to 14 days Stock (3 pcs) up to 14 days up to 14 days Choose variant
Coil
Chosen variant is not available. Reset selected parameters.
Delivery to:
18.10.2024 30.09.2024 18.10.2024 30.09.2024 18.10.2024 18.10.2024 Choose variant

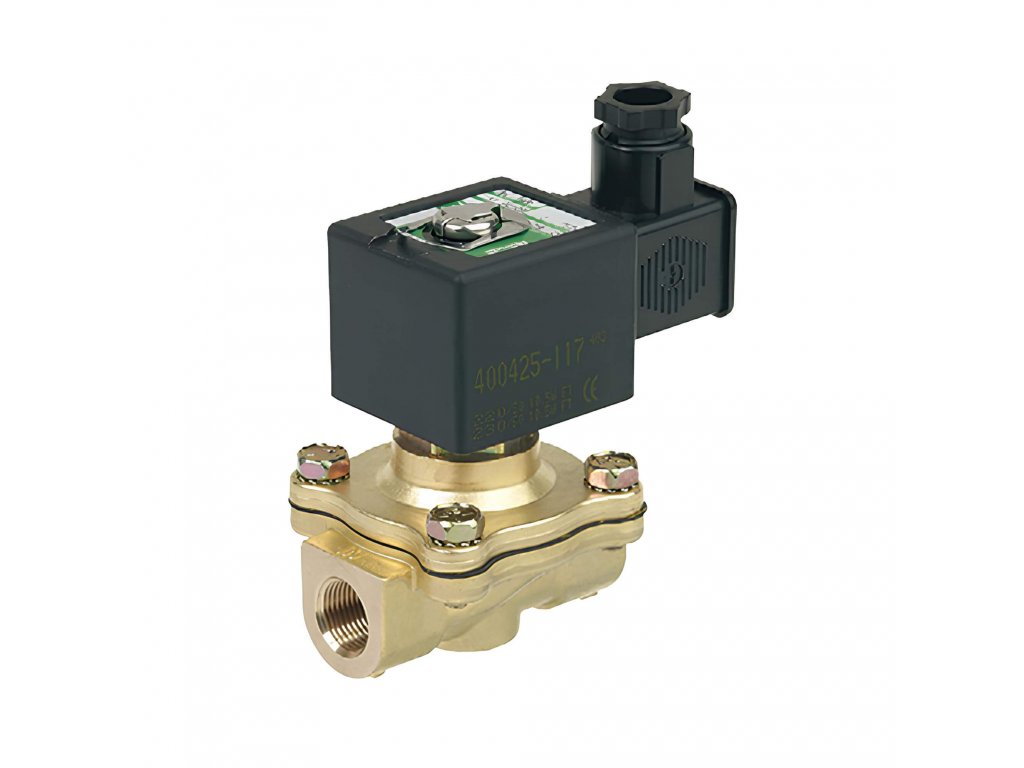

Solenoid valves series E210 with connection thread G1/2". Function 2/2NC, clearance 16 mm. Designed for water, air, non-fluid gases and light oils. Made of brass, NBR seal for temperatures -20 to +85°C. Delivery includes valve, spool and standard ISO4400 connector.

Detailed information

Product detailed description

Solenoid valve 2/2 NC G238-12

  • series of solenoid valves designed for water, air, non-fluid gases and light oils
  • directly controlled design with no minimum pressure required
  • version with 2/2 NC - no voltage closed or 2/2 NO - no voltage open
  • brass body with threaded connection, with NBR seal for medium temperatures -20 to +85 °C
  • includes valve, coil with selected voltage and standard ISO4400 connector

Additional parameters

Category: Solenoid valves E210
Pressure: 9 Bar
Coil: 24 V AC, 24 V DC, 48 V AC, 48 V DC, 115 V AC, 230 V AC
Functions: 2/2 NC
Material: Brass
Medium: Water, Oil, Netečné plyny
Flow: 57 l/min
Brightness DN: 16
Seals: NBR
Thread: G 1/2"
Management: Directly controlled
Media temperature: -20 to +85 °C

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
