Activated carbon columns TAC

Separace oleje ze stlačeného vzduchu aktivním uhlím TAC
  • activated carbon columns separate oil in the form of liquid and oil vapour from the compressed air
  • dry separation based on the principle of pressure adsorption on the surface and in the pores of activated carbon
  • body made of high quality carbon steel, flow control for constant delivery
  • residual oil content <0.003mg/m3; meets Class 0/1 for oil according to ISO 8573-1
  • operating temperature +1.5/+50 °C, working pressure 0-16 bar, low pressure gradient 20 mbar
  • recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
  • designed for industrial enterprises with high demands on air quality - food industry, beverage industry, petrochemical industry, etc.
  • important note: for the use of TAC columns, a dust filter with a filtration capacity of 1 µm and a coalescing microfilter of 0.01 µm are required
  • reference conditions for flow measurement: temperature +20 °C, working pressure 7 bar. For conditions other than the reference, a correction factor must be used for the calculation - please contact our company.

Dry separators using activated carbon TAC

Ordering
number
Flow Pressure
bar
Connection
"
Dimensions mm Weight Order no.
SERVICE KIT
l/min m³/h d with in kg
TACM-6 100 6 16 3/8" 130 164 492 4 TACM-6S
TACM-12 200 12 16 3/8" 130 164 492 5,5 TACM-12S
TACM-23 400 24 16 3/8" 130 164 492 8,2 TACM-23S
TACM-35 600 36 16 3/8" 130 164 492 11,1 TACM-35S
TACM-56 1 000 60 16 3/4" 160 212 1 082 17,4 TACM-56S
TACM-70 1 250 75 16 3/4" 160 212 1 082 20,3 TACM-70S
TACM-105 1 950 117 16 3/4" 160 212 1 082 26 TACM-105S
TACM-150 2 500 150 16 1" 240 328 1 393 50 TACM-150S
TACM-200 3 333 200 16 1" 240 328 1 393 57,5 TACM-200S
TAC-110 1 833 100 16 1" 252 350 1 522 45 TAC-110S
TAC-150 2 500 150 16 1" 252 350 1 766 52 TAC-150S
TAC-200 3 333 200 16 1" 303 400 1 532 71 TAC-200S
TAC-250 4 333 260 16 1 1/2" 303 400 1 784 83 TAC-250S
TAC-300 5 333 320 16 1 1/2" 357 450 1 551 97 TAC-300S
TAC-400 6 833 400 16 1 1/2" 357 450 1 798 114 TAC-400S
TAC-600 9 833 590 16 1 1/2" 424 650 1 893 160 TAC-600S
TAC-800 12 833 770 16 2" 468 650 1 877 201 TAC-800S
TAC-1000 16 667 1 000 16 2" 506 650 1 961 242 TAC-1000S
Reference flow measurement conditions: temperature +20 °C, working pressure 7 bar

#ShowMore#

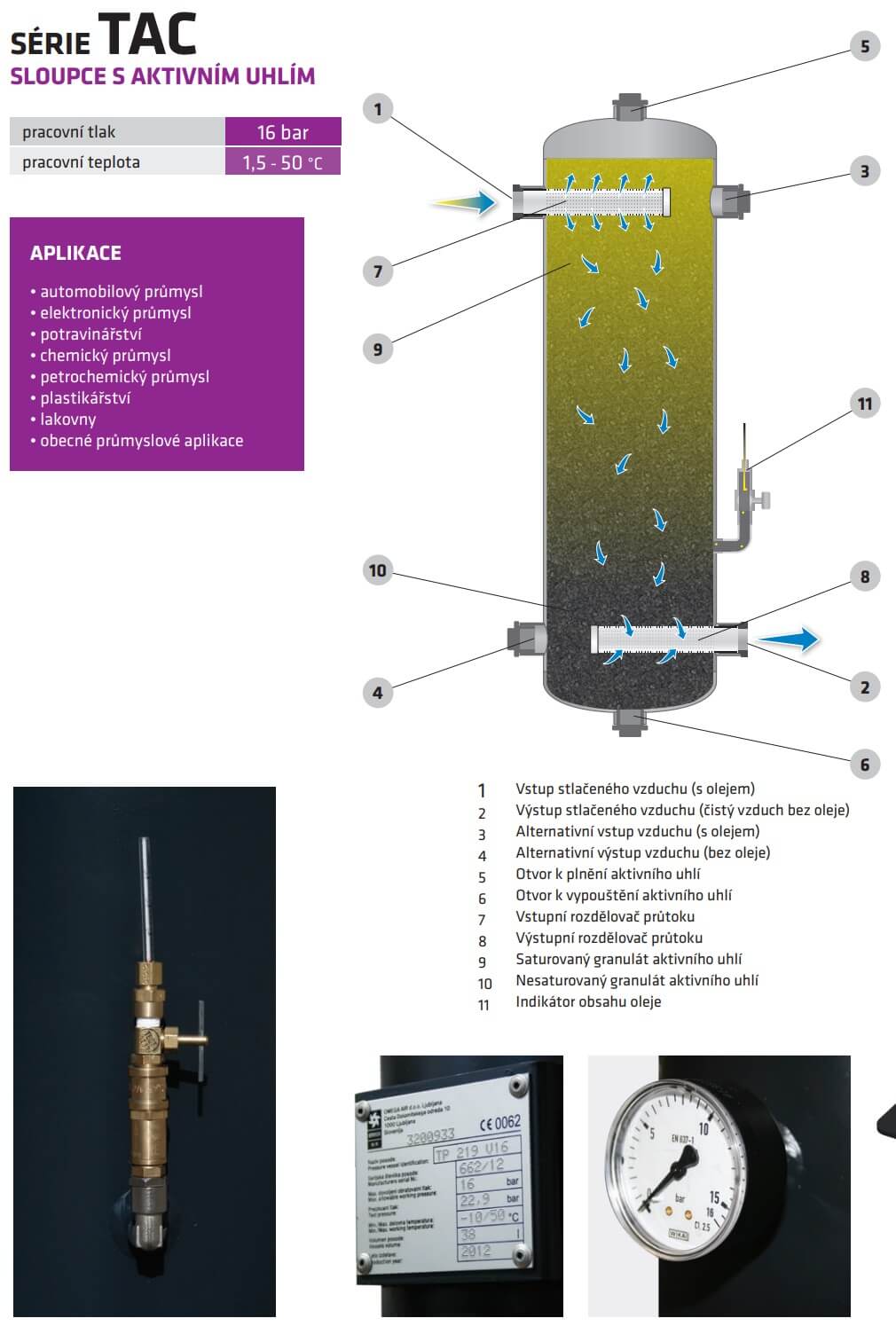

SLOUPCE S AKTIVNÍM UHLÍM a separace oleje

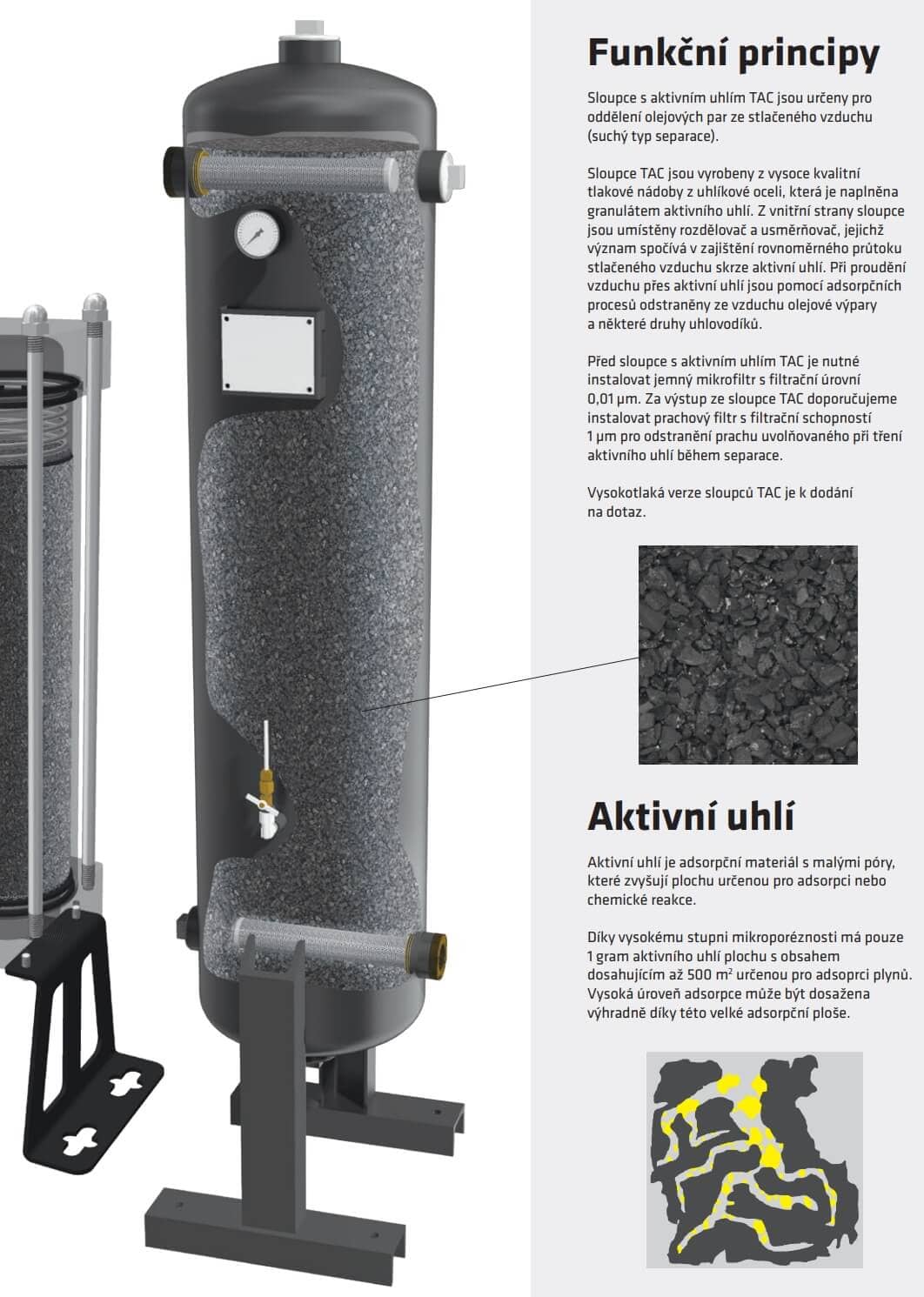

Funkční principy Aktivní uhlí stlačený vzduch a kompresor

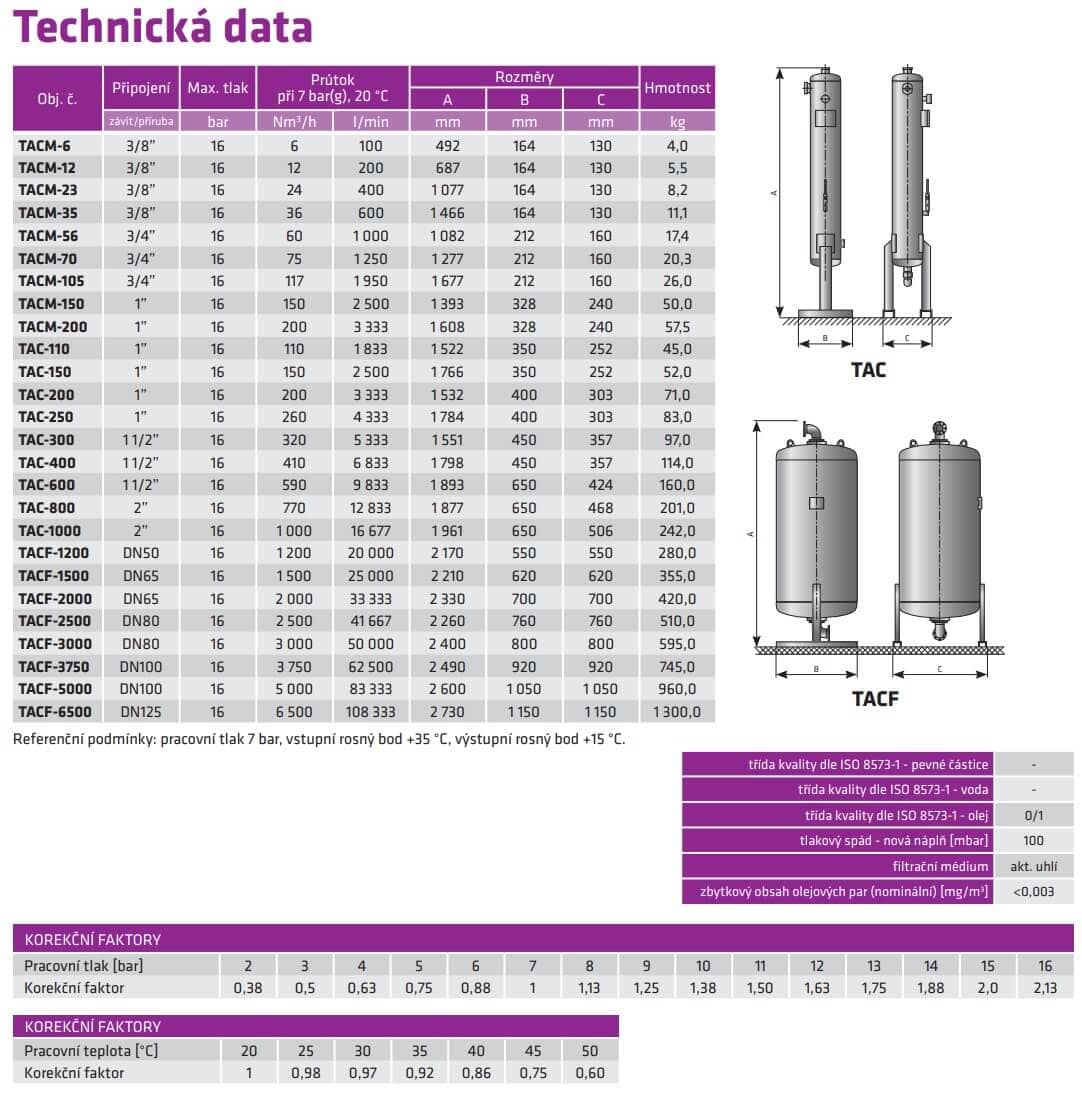

Technická data aktivního uhlí a separace vzduchu z kompresoru
