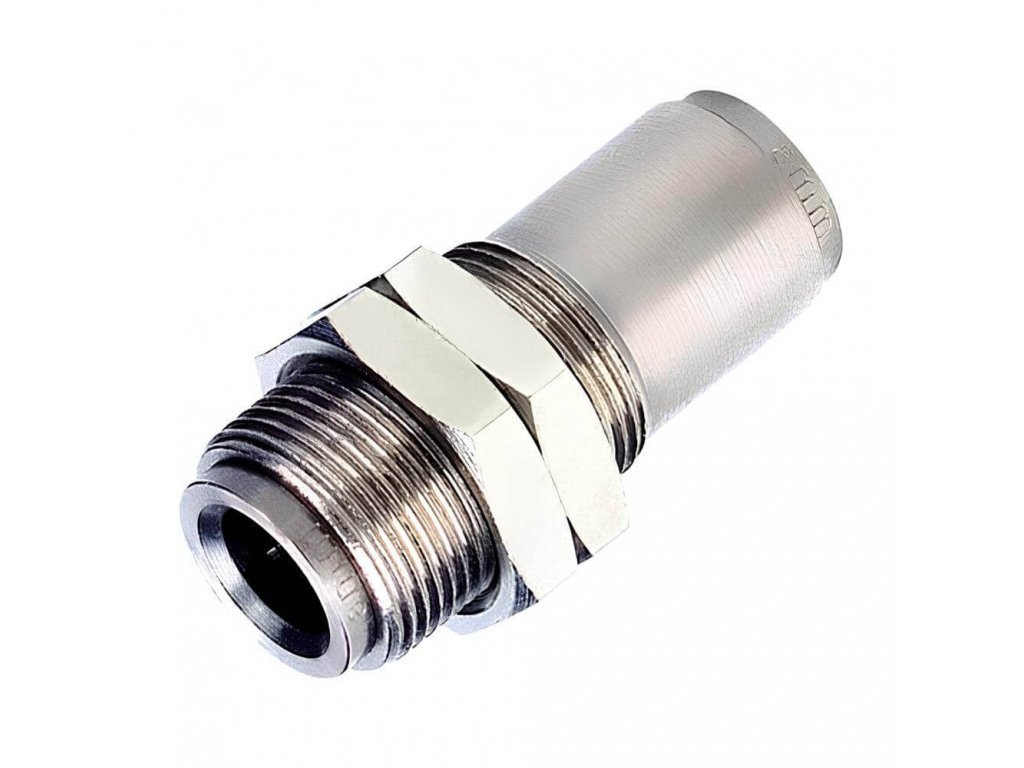

    Scotch joint partition 6 mm

    Code: MPM-6
    Not rated
    128 Kč –5 %
    Scotch joint partition 6 mm
    128 Kč –5 % 121 Kč / pcs 100 Kč excl. VAT
    Stock (109 pcs)
    Delivery to:
    25.12.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

    Socket coupling bulkhead 6 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Push-in brass partition couplings
    Pressure: 10 bars
    A tube: 6 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Outer metric
    SW (key): 17
    Thread: M14 x 1
    Connection system: Plug-in system
    Sealing ring made of Teflon PTFE DR-12TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-12TE
    Stock (60 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/2" thread. The inner diameter is 21.3 mm and the outer diameter is 28.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12TE
    Copper sealing ring DR-14CU
    Copper sealing ring DR-14CU
    Stock (25 pcs)
    5 Kč excl. VAT
    6 Kč

    Designed for G 1/4" thread. The inner diameter is 13 mm and the outer diameter is 18 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-14CU
    Copper sealing ring DR-20CU
    88 Kč –5 %
    Copper sealing ring DR-20CU
    up to 14 days
    69 Kč excl. VAT
    83 Kč

    Designed for G 2" thread. The inner diameter is 60 mm and the outer diameter is 68 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-20CU
    Sealing ring made of elastomer and brass DR-12EL
    40 Kč –5 %
    Sealing ring made of elastomer and brass DR-12EL
    Stock (16 pcs)
    31 Kč excl. VAT
    38 Kč

    Designed for G 1/2" thread. The inner diameter is 20.8 mm and the outer diameter is 26.3 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12EL
    Sealing ring made of Teflon PTFE DR-34TE
    20 Kč –5 %
    Sealing ring made of Teflon PTFE DR-34TE
    up to 14 days
    16 Kč excl. VAT
    19 Kč

    Designed for G 3/4" thread. The inner diameter is 26.5 mm and the outer diameter is 33.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-34TE
    Copper sealing ring DR-M5CU
    Copper sealing ring DR-M5CU
    Stock (30 pcs)
    3 Kč excl. VAT
    4 Kč

    Designed for M5 thread. The inner diameter is 5 mm and the outer diameter is 9 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-M5CU
    Sealing ring made of elastomer and brass DR-18EL
    28 Kč –3 %
    Sealing ring made of elastomer and brass DR-18EL
    Stock (50 pcs)
    22 Kč excl. VAT
    27 Kč

    Designed for G 1/8" thread. The inner diameter is 10.1 mm and the outer diameter is 14.7 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-18EL
    Copper sealing ring DR-12CU
    9 Kč –11 %
    Copper sealing ring DR-12CU
    Stock (3 pcs)
    7 Kč excl. VAT
    8 Kč

    Designed for G 1/2" thread. The inner diameter is 21 mm and the outer diameter is 26 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-12CU
    Copper sealing ring DR-18CU
    Copper sealing ring DR-18CU
    Stock (30 pcs)
    3 Kč excl. VAT
    4 Kč

    Designed for G 1/8" thread. The inner diameter is 10 mm and the outer diameter is 14 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-18CU
    Quick coupling nickel-plated mandrel 13 mm
    Tip
    323 Kč –4 %
    Quick coupling nickel-plated mandrel 13 mm
    Stock (18 pcs)
    254 Kč excl. VAT
    307 Kč

    Nickel-plated quick couplings DN7,2 with shank for hose with 13 mm inner diameter. Version in nickel-plated brass MS 58 with one-way closable valve. New mandrel contour for...

    Code: ESN13T
    Sealing ring from Teflon PTFE DR-10TE
    23 Kč –4 %
    Sealing ring from Teflon PTFE DR-10TE
    Stock (20 pcs)
    18 Kč excl. VAT
    22 Kč

    Designed for G 1" thread. The inner diameter is 33.5 mm and the outer diameter is 39.1 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-10TE
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    1 148 Kč –3 %
    Dutchman R2 1/2" internal thread fitting
    Stock (7 pcs)
    920 Kč excl. VAT
    1 113 Kč

    Holendr cast iron fitting with internal threads R 2 1/2" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-25
    Sealing ring made of Teflon PTFE DR-38TE
    13 Kč –7 %
    Sealing ring made of Teflon PTFE DR-38TE
    Stock (25 pcs)
    10 Kč excl. VAT
    12 Kč

    Designed for G 1/4" thread. The inner diameter is 13.5 mm and the outer diameter is 18.0 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38TE
    RA340 sroubeni litina tvarovky armatury 25 bar tlak vzduch rozvody potrubi
    3 230 Kč –3 %
    Dutchman fitting with internal threads R4"
    up to 14 days
    2 589 Kč excl. VAT
    3 133 Kč

    Holendr cast iron fitting with internal threads R 4" up to 25 bar. Made of tempered hot-dip galvanized cast iron. Designed primarily for water and compressed air piping...

    Code: RA340-40
    Sealing ring made of elastomer and brass DR-38EL
    31 Kč –3 %
    Sealing ring made of elastomer and brass DR-38EL
    Stock (20 pcs)
    25 Kč excl. VAT
    30 Kč

    Designed for G 3/8" thread. The inner diameter is 16.9 mm and the outer diameter is 21.8 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-38EL
    Copper sealing ring DR-10CU
    22 Kč –4 %
    Copper sealing ring DR-10CU
    Stock (5 pcs)
    17 Kč excl. VAT
    21 Kč

    Designed for G 1" thread. The inner diameter is 33 mm and the outer diameter is 39 mm. Basic sealant for sealing threaded joints in pneumatic equipment.

    Code: DR-10CU
