    Scotch joint partition 5 mm

    Code: MPM-5
    Not rated
    112 Kč –4 %
    Scotch joint partition 5 mm
    112 Kč –4 % 107 Kč / pcs 88 Kč excl. VAT
    Stock (116 pcs)
    Delivery to:
    25.12.2024
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Product detailed description

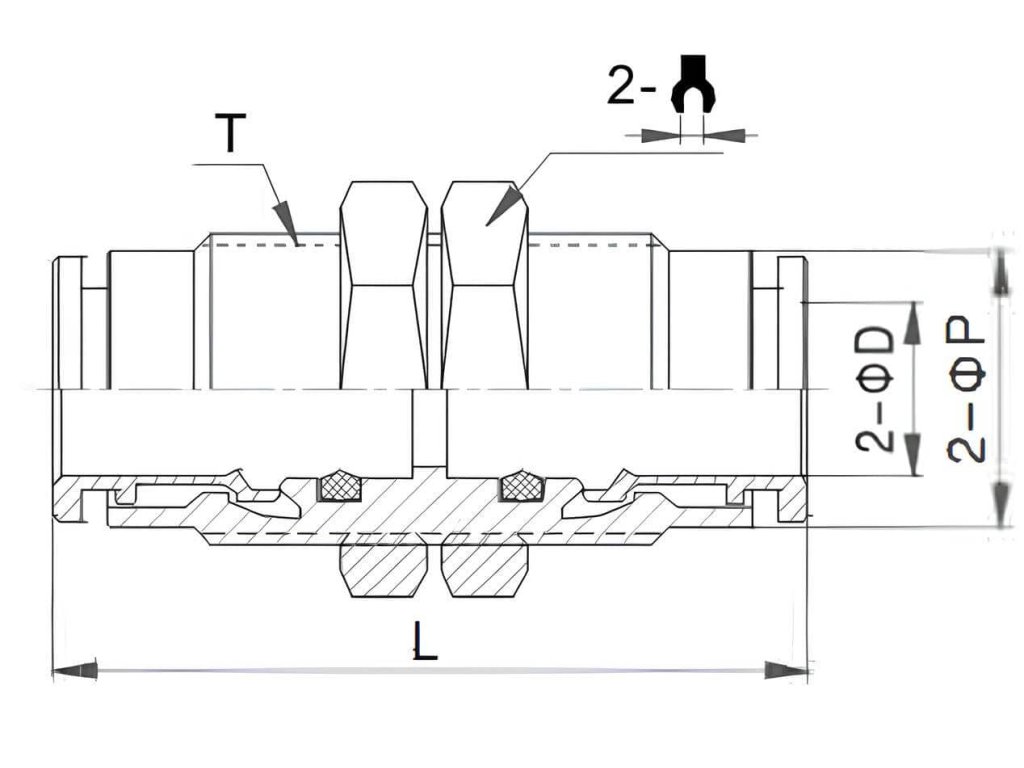

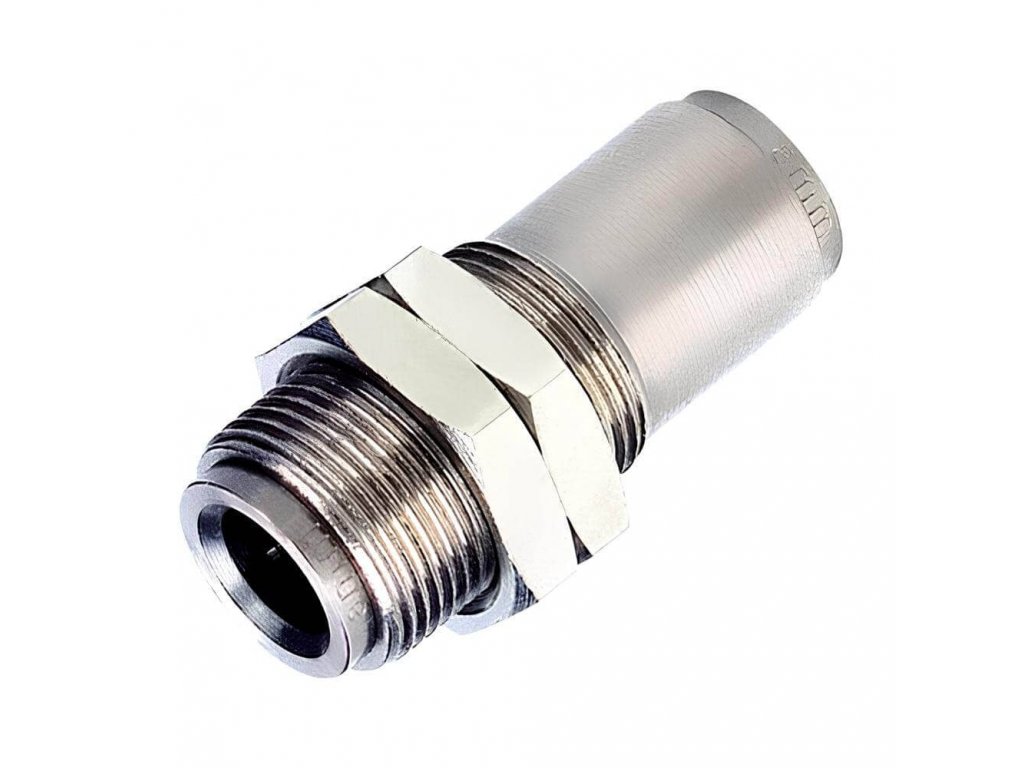

    Socket coupling bulkhead 5 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Push-in brass partition couplings
    Pressure: 10 bars
    A tube: 5 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Outer metric
    SW (key): 17
    Thread: M14 x 1
    Connection system: Plug-in system
