    Scotch joint partition 4 mm

    Code: MPM-4
    Not rated
    103 Kč –4 %
    Scotch joint partition 4 mm
    103 Kč –4 % 98 Kč / pcs 81 Kč excl. VAT
    Stock (31 pcs)
    Delivery to:
    23.01.2025
    Delivery offer
    Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

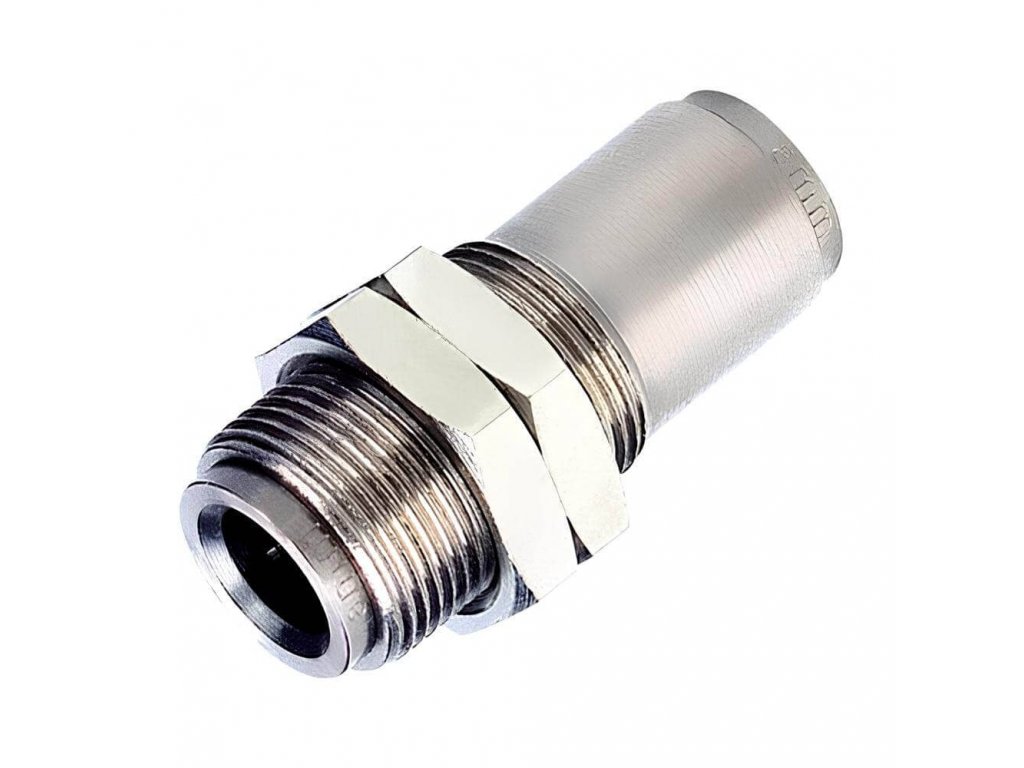

    Socket coupling bulkhead 4 mm - metal socket version

    • Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
    • Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
    • The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

    Additional parameters

    Category: Push-in brass partition couplings
    Pressure: 10 bars
    A tube: 4 mm
    Material: Brass
    Medium: Compressed air
    Working temperature: -10 / +80 °C
    Thread design: Outer metric
    SW (key): 30
    Thread: M10 x 1
    Connection system: Plug-in system
