Scotch coupler partition 10 mm

Code: MPM-10

Not rated

Brand: Pneumatics & Hydraulics

165 Kč –4 %

165 Kč –4 % 157 Kč / pcs 130 Kč excl. VAT

(184 pcs)

Delivery to: 22.11.2024

Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology. The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

Detailed information

Product detailed description

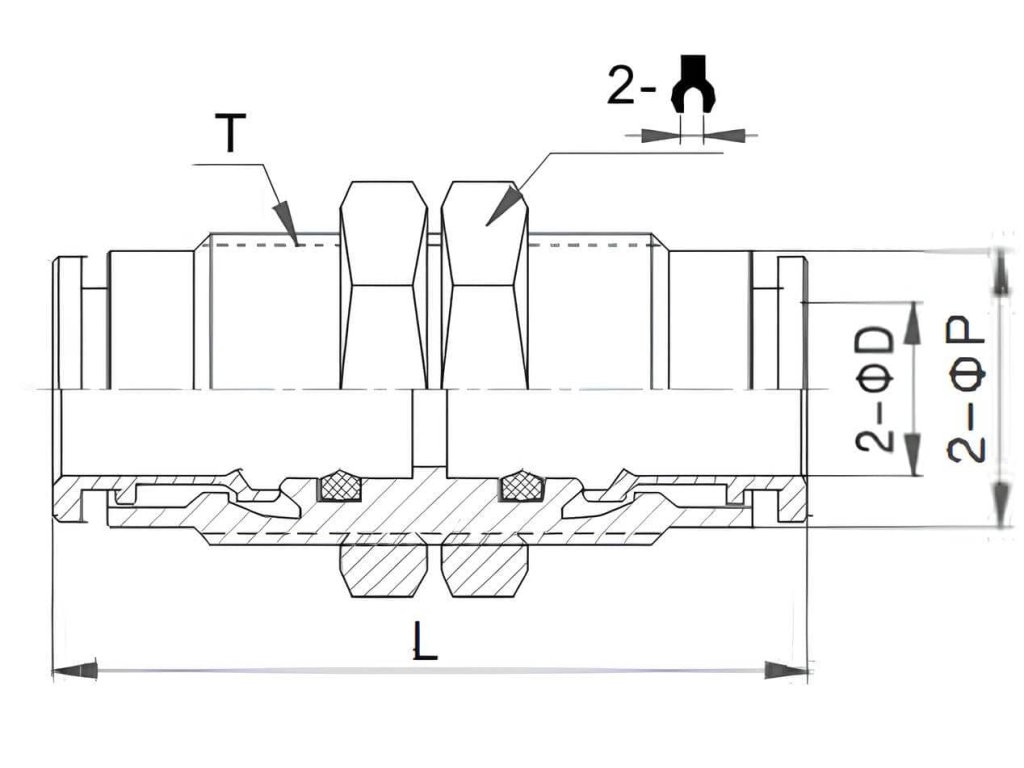

10 mm bulkhead socket coupling - metal socket version

Socket couplings designed for quick and easy assembly of plastic tubing in the field of automation, measuring and control technology.
Materials used : MS58 brass, NBR sealing, Teflon coated threads or o-ring
The all-metal design is particularly suitable for applications with high mechanical stress demands on the couplings.

Additional parameters

Category:	Push-in brass partition couplings
Pressure:	10 bars
A tube:	10 mm
Material:	Brass
Medium:	Compressed air
Working temperature:	-10 / +80 °C
Thread design:	Outer metric
SW (key):	22
Thread:	M18 x 1
Connection system:	Plug-in system
