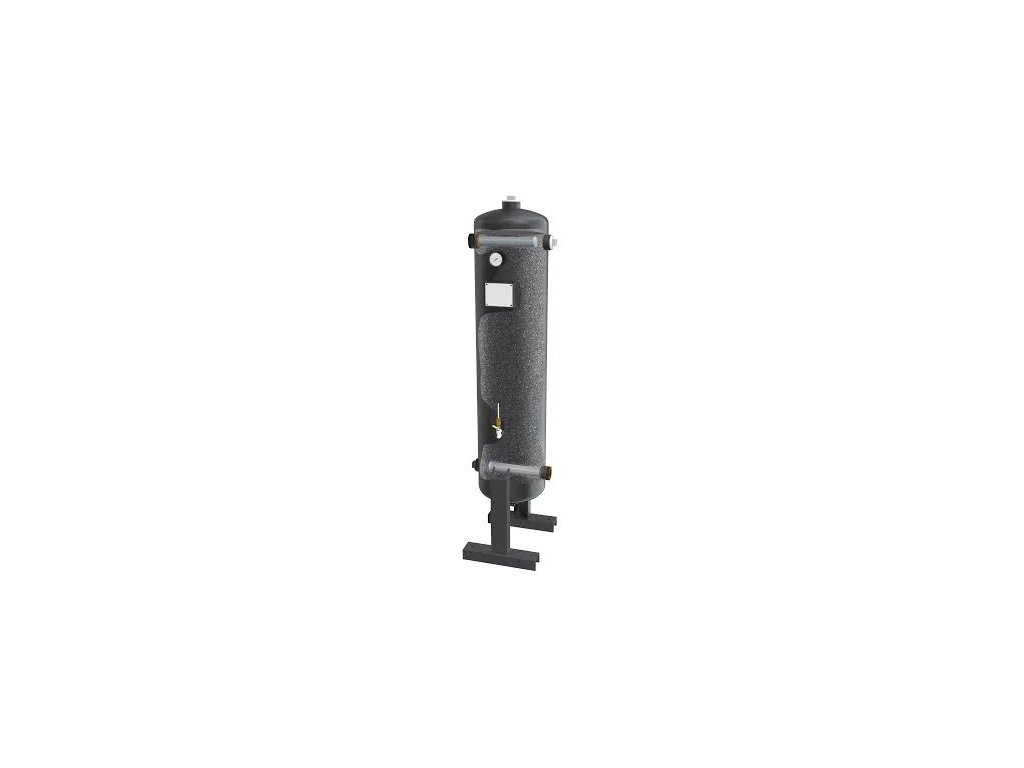

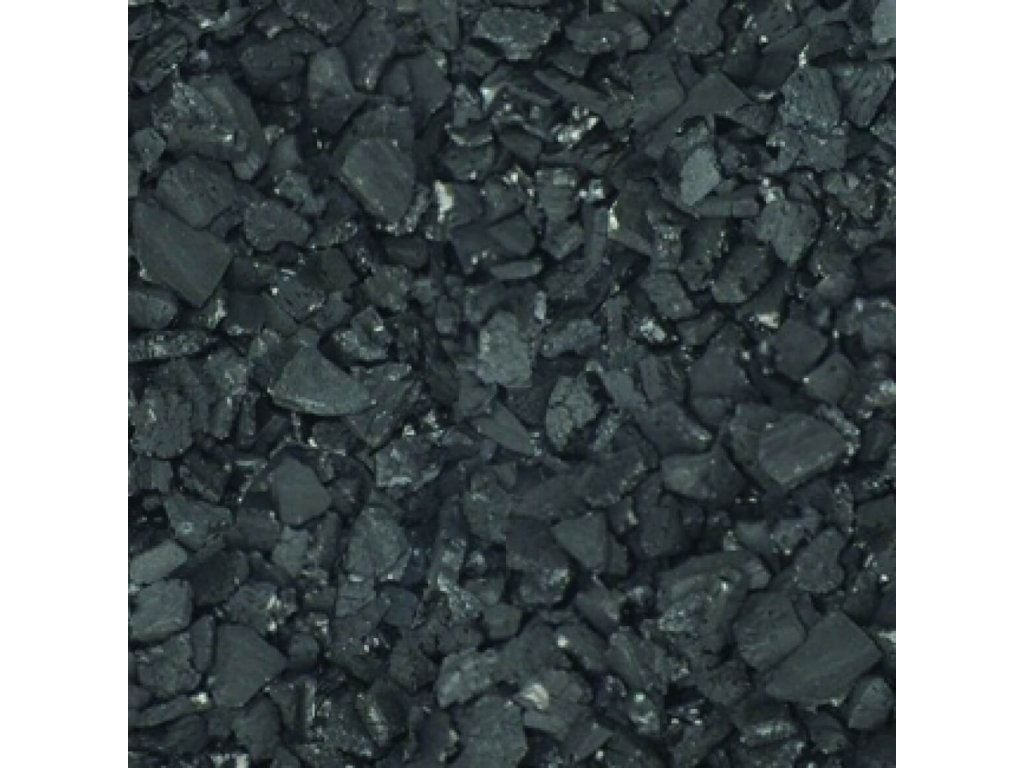

Service kit for the TAC-800 activated carbon column. Activated carbon is a material in the form of small pellets designed to purify compressed air and gases in adsorption processes.

Detailed information

Code: TAC-800S
Brand: OMEGA AIR
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Service KIT for TAC-800

  • activated carbon columns separate oil in the form of liquid and oil vapour from the compressed air
  • dry separation based on the principle of pressure adsorption on the surface and in the pores of activated carbon
  • body made of high quality carbon steel, flow control for constant delivery
  • residual oil content <0.003mg/m3; meets Class 0/1 for oil according to ISO 8573-1
  • operating temperature +1.5/+50 °C, working pressure 0-16 bar, low pressure gradient 20 mbar
  • recommended maintenance: check differential pressure once a month, change activated carbon cartridge once a year
  • designed for industrial enterprises with high demands on air quality - food industry, beverage industry, petrochemical industry, etc.
  • important note: for the use of TAC columns, a dust filter with a filtration capacity of 1 µm and a coalescing microfilter of 0.01 µm are required
  • reference conditions for flow measurement: temperature +20 °C, working pressure 7 bar. For conditions other than the reference, a correction factor must be used for the calculation - please contact our company.

separace oleje ze stlačeného vzduchu v podobě kapalin a olejových par

Product is included in the following categories: Air conditioning Air dryers

Technical parameters

Category: Compressed Air Moisture Removal Air Dryers
Service interval: KIT for TAC-800
ISO class: 0/1 - ISO 8573.1
Equipment:: Activated carbon
Residual oil: 0.003 mg/m
Dryer type: Activated carbon
