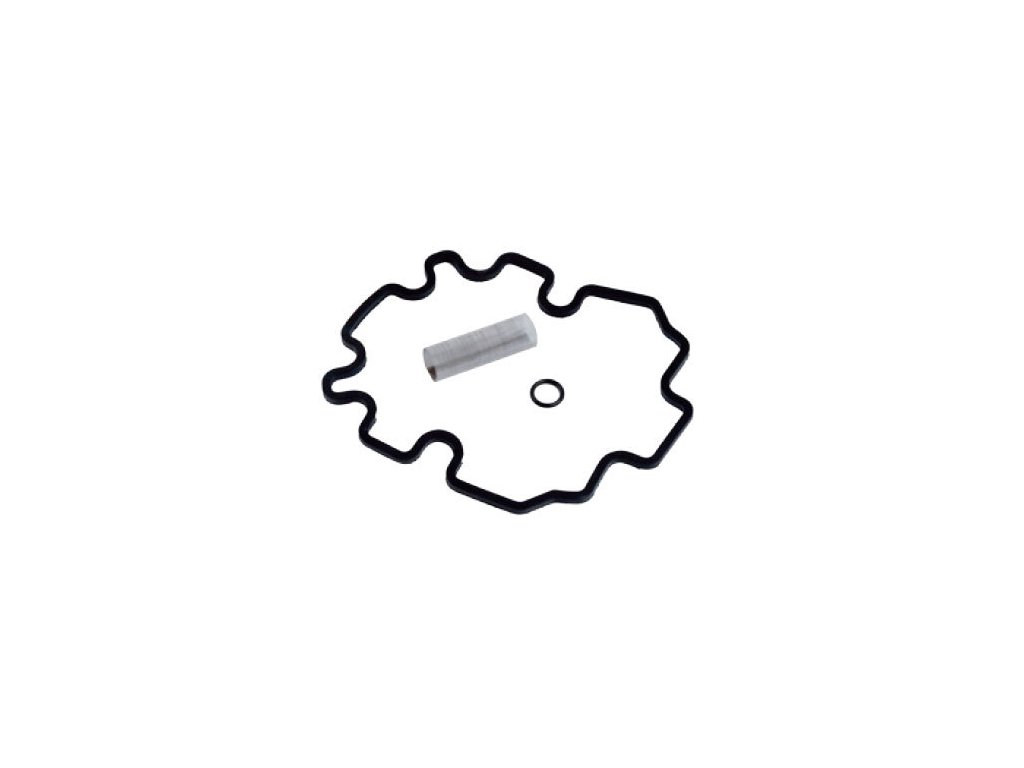

Service kit for annual maintenance of LD

Product detailed description

Why use intelligent condensate discharge - LD200

Condensate can form in the pressure vessel or air receiver when air is compressed. This accumulates in the container and corrosion occurs. Unwanted condensate also binds to the outgoing compressed air and damages other pneumatic components such as pneumatic tools, cylinders and NC machines. In order to prevent this process, it is necessary to drain the condensate from the compressor pressure vessel from time to time to carry out the necessary maintenance of the machine. For easy and comfortable draining, we can choose these automatic condensate drainers, which will perform the necessary maintenance automatically for us. Prevent wear and corrosion in the compressed air system. Small size, no noise and discharge of water alone without compressed air. This does not reduce the air flow as in the case of automatic bleeders.

The main advantages of condensate drains easy drainage of condensate from all equipment in the compressor room less wear and tear on piping and production equipment less production downtime almost no maintenance
Risk reduction preventing wear and corrosion of the compressed air system
Usage: for all equipment using compressed air - dryers, filters, pressure vessels

The new range of LD condensate drainers uses a system called capacitive drainage for its function. Compared to traditional time forgiveness, this system has several significant advantages.

Condensate discharge process

The condensate enters through connection ❶. In tank ❷ condensate is collected and the diaphragm valve ❸ leaves the drain hole closed. When raising the level the floating body rises ❹ and after reaching the upper level valve ❻ opens, which is controlled by a logic circuit of solenoid valve ❺. Condensate is forgiven and when the level reaches the minimum level, the membrane closes again the drain hole without the compressed air escaping out. In the hose holder has a new filter and flow regulator.
