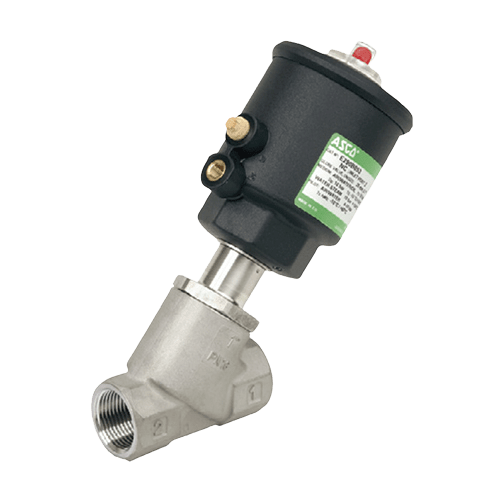

Seat pressure operated valves E290 stainless steel
 |
|
Seat valves E290 stainless steel, 2/2 NC function |
|||||||||||||
| Ordering number |
Functions | Thread " |
Luminosity DN |
Flow Kv l/min |
Pilot pressure bar |
Min. pressure bar |
Max. pressure bar |
Operator Avg. mm |
|||||
| E290NCS-38A | 2/2 NC | 3/8" | 10 | 47 | 4 to 10 | 0 | 16 | 32 | |||||
| E290NCS-12A | 2/2 NC | 1/2" | 15 | 68 | 4 to 10 | 0 | 12 | 32 | |||||
| E290NCS-12B | 2/2 NC | 1/2" | 15 | 82 | 4 to 10 | 0 | 16 | 50 | |||||
| E290NCS-34A | 2/2 NC | 3/4" | 20 | 108 | 4 to 10 | 0 | 6 | 32 | |||||
| E290NCS-34B | 2/2 NC | 3/4" | 20 | 157 | 4 to 10 | 0 | 10 | 50 | |||||
| E290NCS-34C | 2/2 NC | 3/4" | 20 | 157 | 4 to 10 | 0 | 16 | 63 | |||||
| E290NCS-10A | 2/2 NC | 1" | 25 | 213 | 4 to 10 | 0 | 6 | 50 | |||||
| E290NCS-10B | 2/2 NC | 1" | 25 | 275 | 4 to 10 | 0 | 10 | 63 | |||||
| E290NCS-10C | 2/2 NC | 1" | 25 | 275 | 4 to 10 | 0 | 16 | 90 | |||||
| E290NCS-54A | 2/2 NC | 1 1/4" | 32 | 450 | 4 to 10 | 0 | 6 | 63 | |||||
| E290NCS-54B | 2/2 NC | 1 1/4" | 32 | 450 | 4 to 10 | 0 | 12 | 90 | |||||
| E290NCS-15A | 2/2 NC | 1 1/2" | 40 | 750 | 4 to 10 | 0 | 4 | 63 | |||||
| E290NCS-15B | 2/2 NC | 1 1/2" | 40 | 750 | 4 to 10 | 0 | 8 | 90 | |||||
| E290NCS-15C | 2/2 NC | 1 1/2" | 40 | 800 | 2.5 to 10 | 0 | 10 | 125 | |||||
| E290NCS-15D | 2/2 NC | 1 1/2" | 40 | 983 | 4 to 10 | 0 | 16 | 125 | |||||
| E290NCS-20A | 2/2 NC | 2" | 50 | 983 | 4 to 10 | 0 | 2,5 | 63 | |||||
| E290NCS-20B | 2/2 NC | 2" | 50 | 800 | 4 to 10 | 0 | 6 | 90 | |||||
| E290NCS-20C | 2/2 NC | 2" | 50 | 1100 | 4 to 10 | 0 | 10 | 125 | |||||
| E290NCS-25A | 2/2 NC | 2 1/2" | 65 | 1567 | 4 to 10 | 0 | 2 | 90 | |||||
| E290NCS-25B | 2/2 NC | 2 1/2" | 65 | 1850 | 4 to 10 | 0 | 6 | 125 | |||||
Seat valves G290 stainless steel, 2/2 NO function |
|||||||||||||
| Ordering number |
Functions | Thread " |
Luminosity DN |
Flow Kv l/min |
Pilot pressure bar |
Min. pressure bar |
Max. pressure bar |
Operator Avg. mm |
|||||
| E290NOS-38A | 2/2 NO | 3/8" | 10 | 47 | 0 to 10 | 0 | 16 | 32 | |||||
| E290NOS-12A | 2/2 NO | 1/2" | 15 | 68 | 0 to 10 | 0 | 16 | 32 | |||||
| E290NOS-34A | 2/2 NO | 3/4" | 20 | 108 | 0 to 10 | 0 | 16 | 32 | |||||
| E290NOS-10A | 2/2 NO | 1" | 25 | 275 | 0 to 10 | 0 | 16 | 63 | |||||
| E290NOS-54A | 2/2 NO | 1 1/4" | 32 | 450 | 0 to 10 | 0 | 16 | 63 | |||||
| E290NOS-15A | 2/2 NO | 1 1/2" | 40 | 750 | 0 to 10 | 0 | 11 | 63 | |||||
| E290NOS-15B | 2/2 NO | 1 1/2" | 40 | 750 | 0 to 10 | 0 | 16 | 90 | |||||
| E290NOS-20A | 2/2 NO | 2" | 50 | 983 | 0 to 10 | 0 | 7 | 63 | |||||
| E290NOS-20B | 2/2 NO | 2" | 50 | 983 | 0 to 10 | 0 | 13 | 90 | |||||
| E290NOS-20C | 2/2 NO | 2" | 50 | 1100 | 0 to 10 | 0 | 16 | 125 | |||||
| E290NOS-25A | 2/2 NO | 2 1/2" | 65 | 1567 | 0 to 10 | 0 | 7 | 90 | |||||
| E290NOS-25B | 2/2 NO | 2 1/2" | 65 | 1850 | 0 to 10 | 0 | 16 | 125 | |||||
