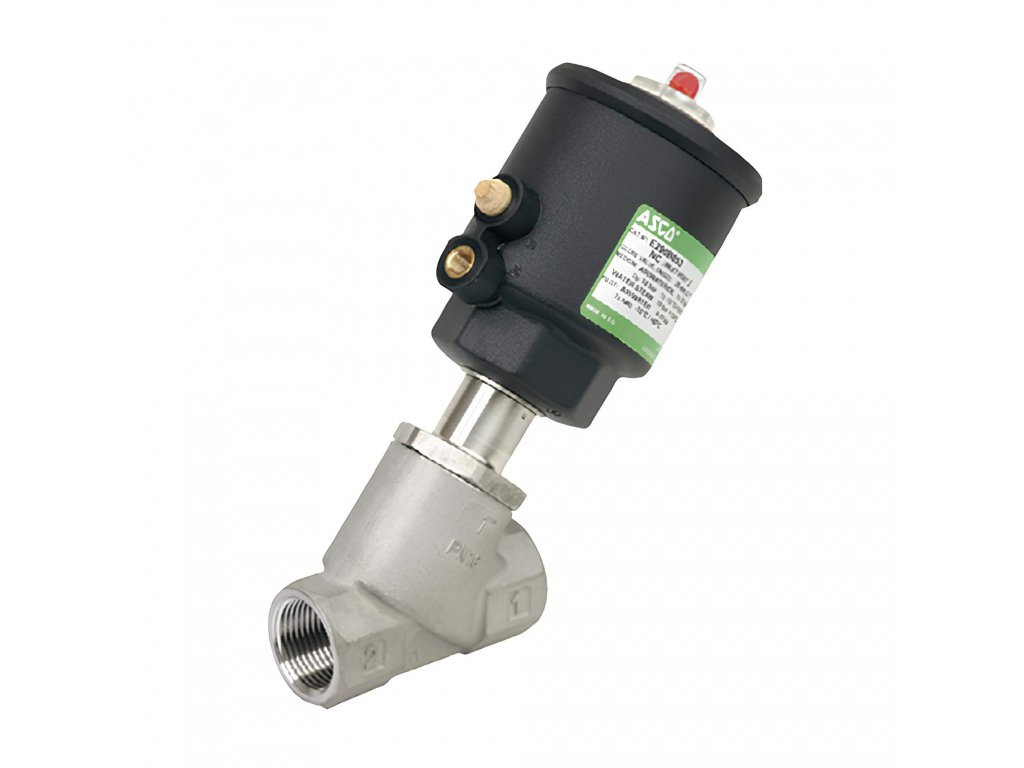

Seat valves E290 NC 20B stainless steel

Code: E290NCS-20B
23 273 Kč / pcs 19 234 Kč excl. VAT
up to 14 days
Delivery to:
13.12.2024
E290 pressure operated valves with 2/2 NC function. Connection thread G2", clearance DN 50, flow Kv 983 l/min. With anti-water hammer treatment. Designed in AISI316L stainless steel with PTFE seal for temperatures from -10 to +184°C.

Detailed information

Product detailed description

Seat valves E290 NC 20B

  • 2/2 NC function
  • connecting thread G2"
  • clearance DN 50
  • flow rate Kv 983 l/min
  • pilot pressure 4 to 10 bar
  • working pressure 0 to 6 bar
  • temperature -10 to +184°C
  • stainless steel material

Additional parameters

Category: Seat pressure operated valves E290 stainless steel
Pressure: 6 bar
Functions: 2/2 NC
Material: Stainless steel
Medium: Air, Water, Vacuum
Flow: 983 l/min
Brightness DN: 50
Seals: PTFE
Thread: G 2"
Management: Indirectly controlled
Media temperature: -10 až +184 °C
