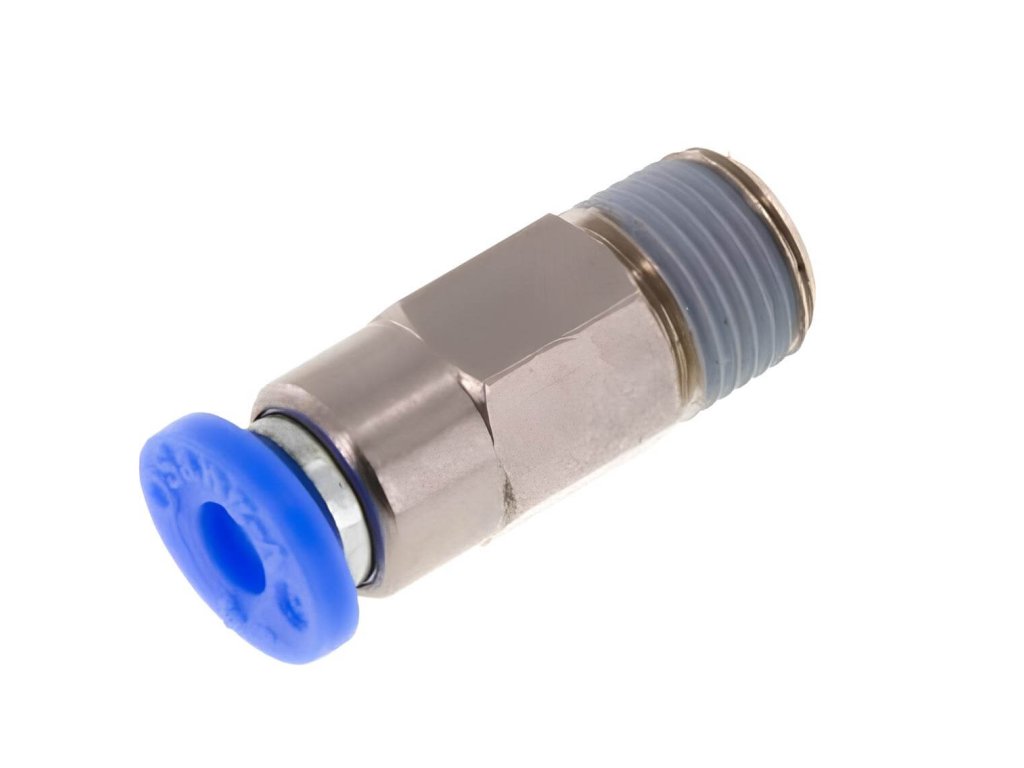

Self-closing direct coupling external 6 - R1/8"
Code: SPC-186Product detailed description
Direct self-closing couplings male thread SPC-186
- Special couplings in lockable design

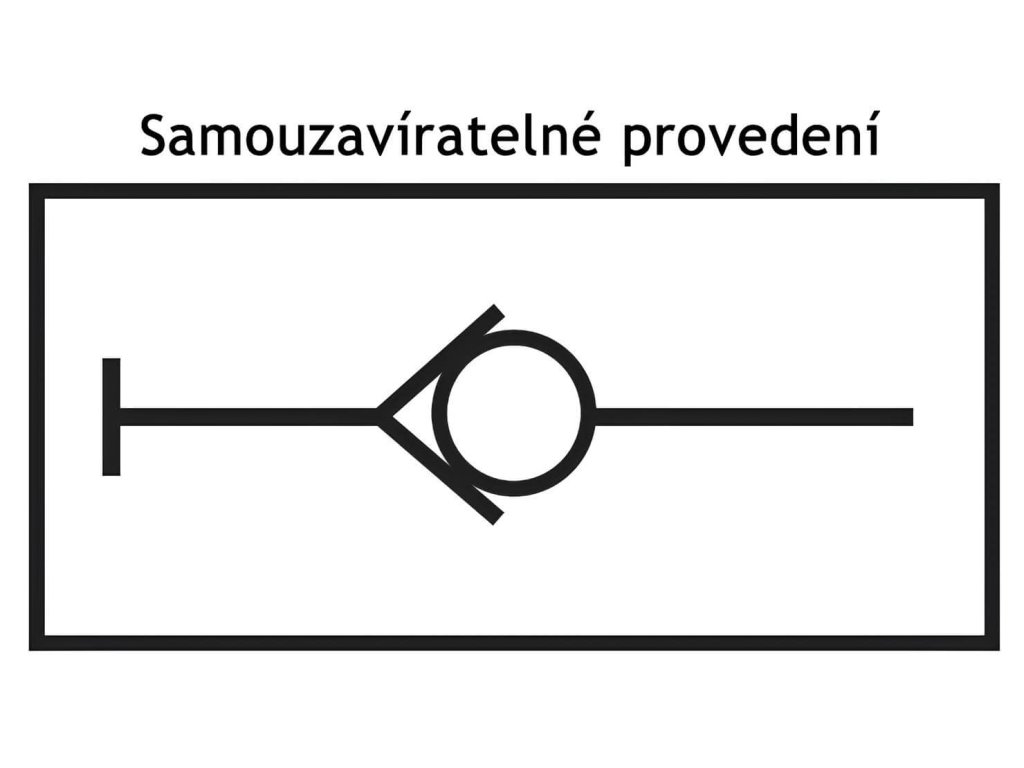

- If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
- Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology
Additional parameters
| Category: | Direct self-closing couplings external thread |
|---|---|
| Pressure: | 10 bars |
| Functions: | Self-closing clutch |
| A tube: | 6 mm |
| Material: | Brass, PU |
| Medium: | Compressed air |
| Working temperature: | 0 / +60 °C |
| Thread design: | Outer taper R |
| Seals: | PTFE |
| Thread: | R 1/8" |
| Connection system: | Plug-in system |
