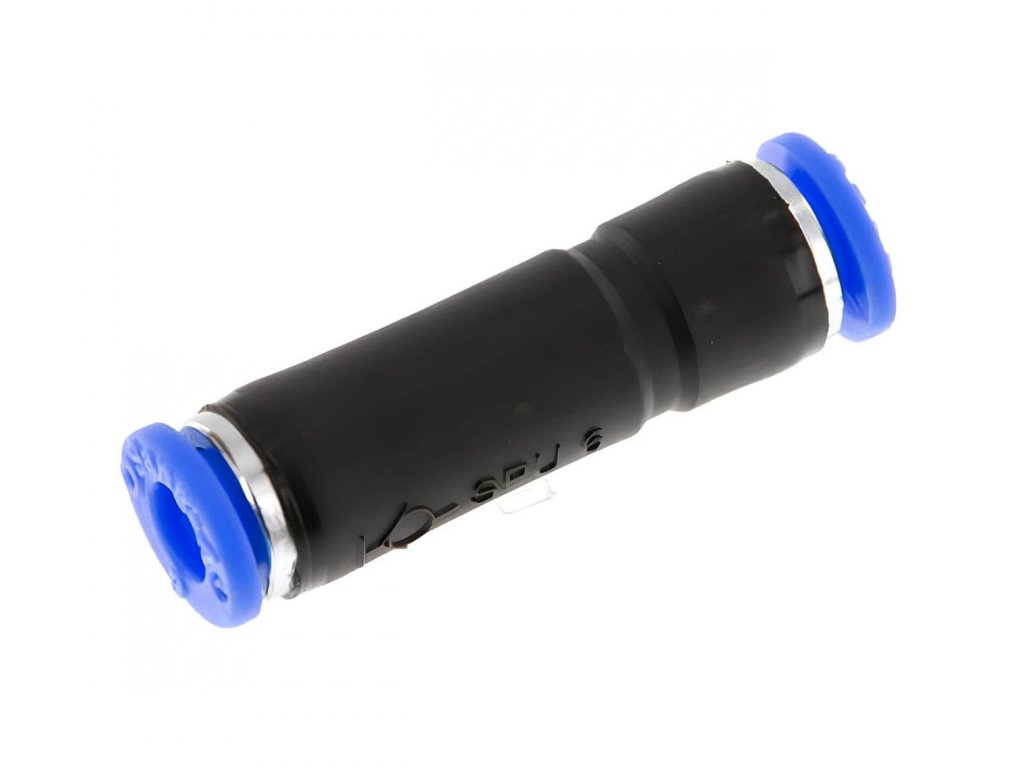

    Self-closing straight coupling 10 mm

    Code: SPUC-10
    Not rated
    229 Kč –4 %
    Self-closing straight coupling 10 mm
    229 Kč –4 % 218 Kč / pcs 180 Kč excl. VAT
    Stock (10 pcs)
    Delivery to:
    23.01.2025
    Delivery offer
    Special straight socket coupling with non-return valve for 10 mm hose. If the hose is inserted in the coupling, the coupling is through, otherwise it closes. Designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Direct self-closing couplings SPUC-10

    • Special couplings in lockable design
    • If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Direct self-closing couplings
    Pressure: 10 bars
    Functions: Self-closing clutch
    A tube: 10 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Seals: PTFE
    Connection system: Plug-in system
