    Home / Fasteners / Self-closing couplings; plug-in version / L-clutch swivel; external thread R / Self-locking l-coupling swivel outer 8 mm - R3/8"

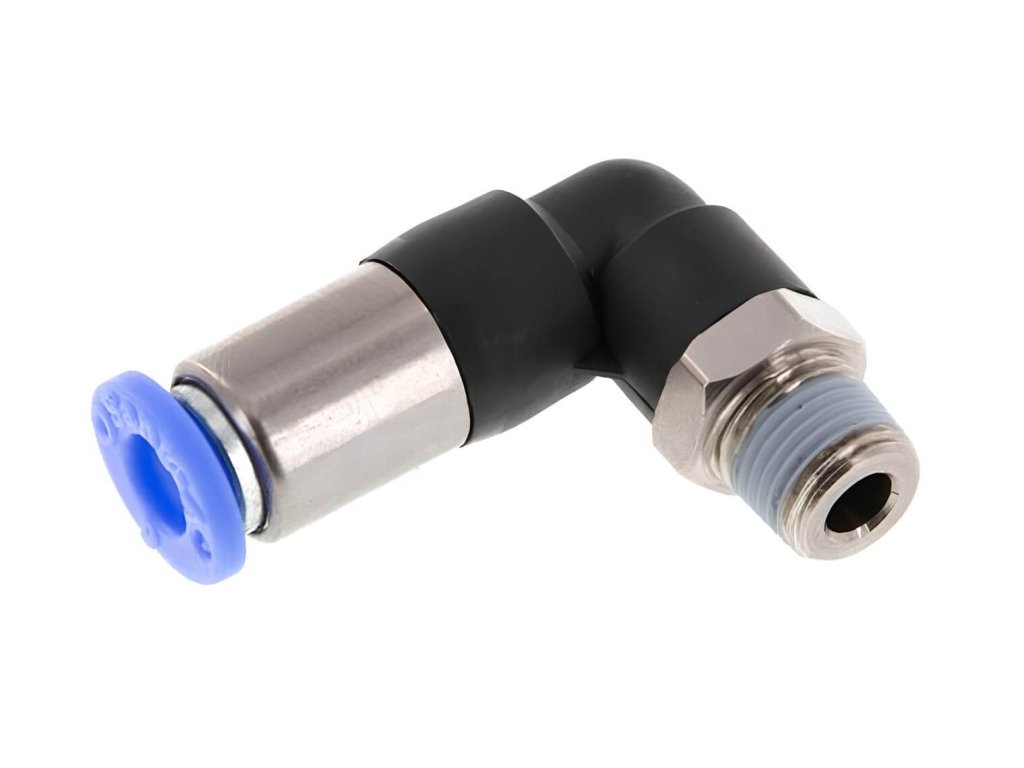

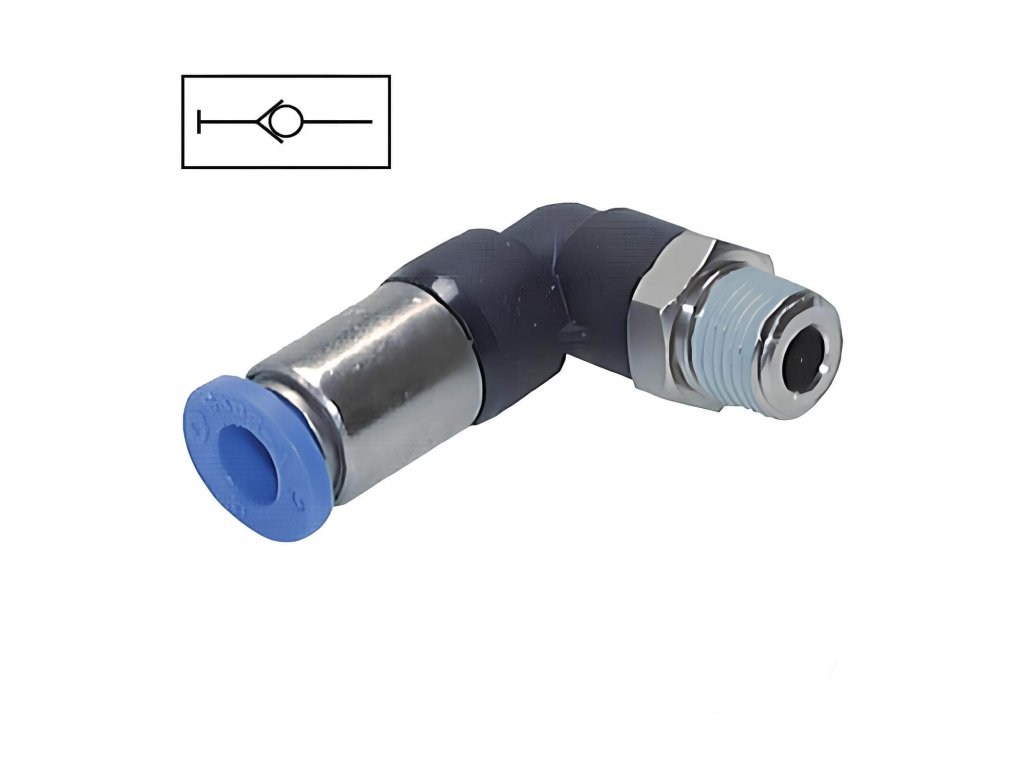

    Self-locking l-coupling swivel outer 8 mm - R3/8"

    Code: SPL-388
    Not rated
    342 Kč –4 %
    Self-locking l-coupling swivel outer 8 mm - R3/8"
    342 Kč –4 % 325 Kč / pcs 269 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024

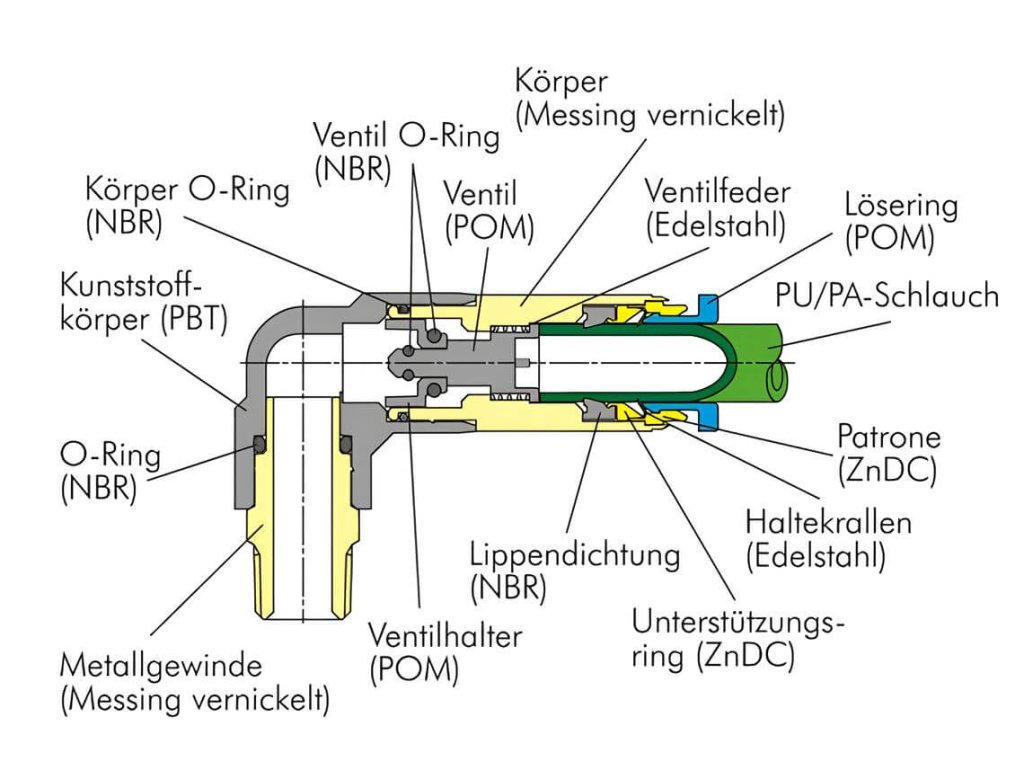

    Special corner fitting in socket design with check valve for 8 mm hose and 3/8" male taper thread. If the hose is inserted in the coupling, the coupling is through, otherwise it closes. Designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Corner self-closing screwdriver male thread SPL-388

    • Special couplings in lockable design

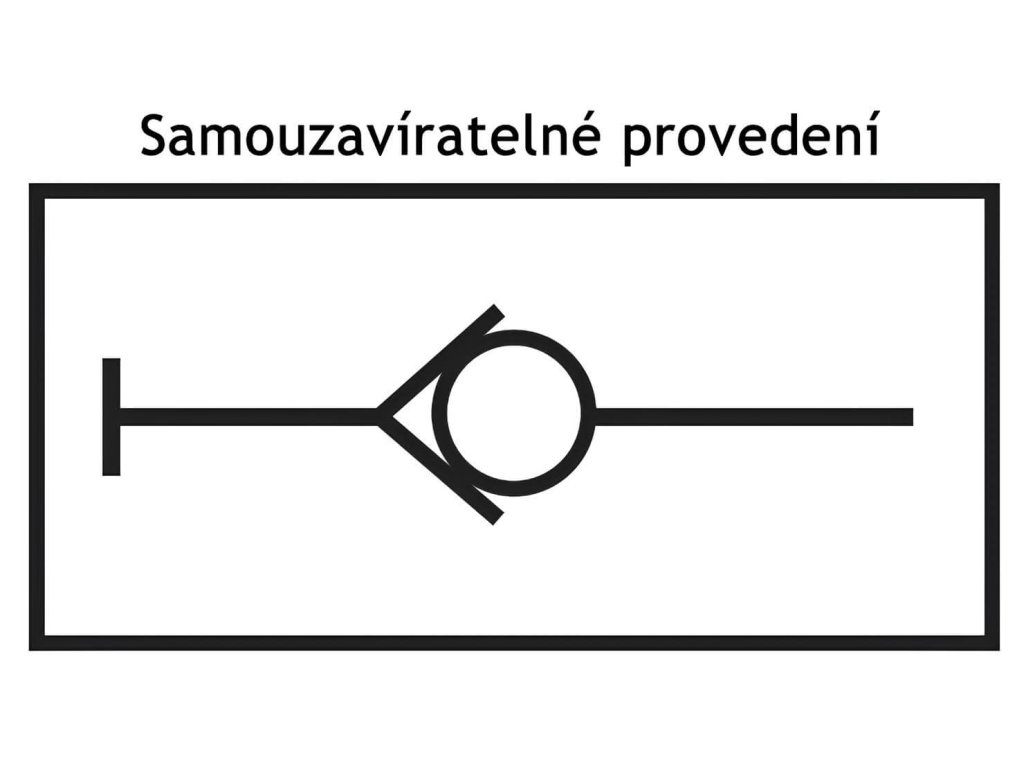

    • If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Corner self-closing L-couplings
    Pressure: 10 bars
    Functions: Self-closing clutch
    A tube: 8 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer taper R
    Seals: PTFE
    Thread: R 3/8"
    Connection system: Plug-in system
    L-coupling 8 - R3/8"
