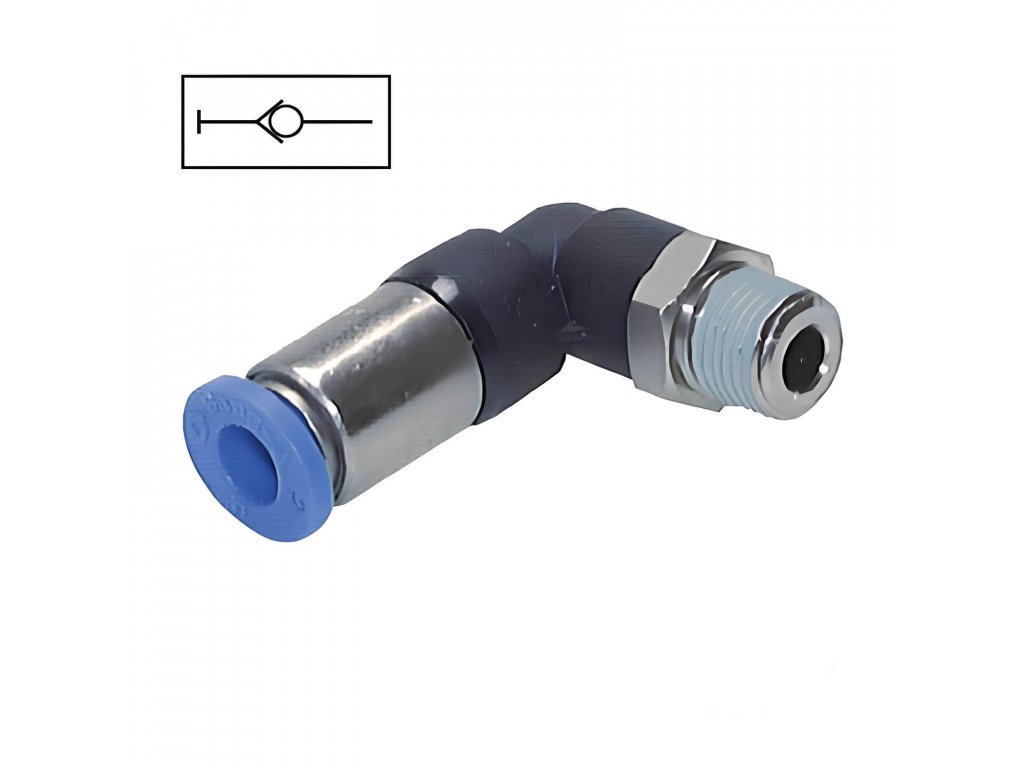

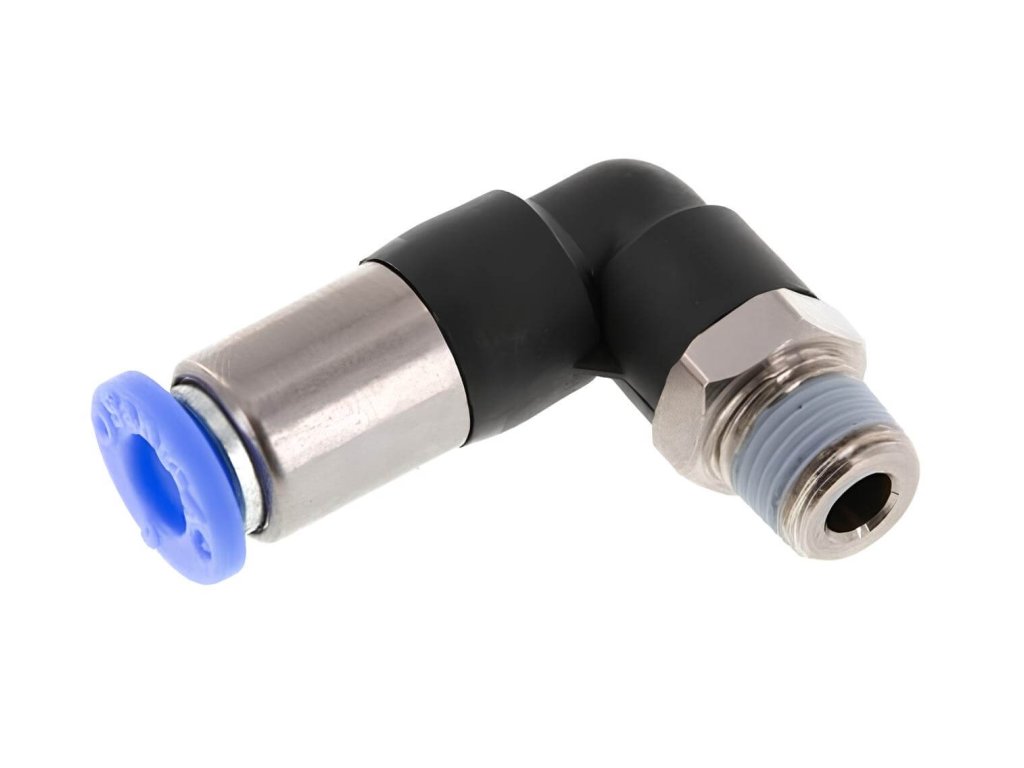

    Self-locking l-coupling swivel outer 6 mm - R1/8"

    Code: SPL-186
    Not rated
    171 Kč –4 %
    Self-locking l-coupling swivel outer 6 mm - R1/8"
    171 Kč –4 % 163 Kč / pcs 135 Kč excl. VAT
    up to 14 days
    Delivery to:
    17.03.2025
    Delivery offer

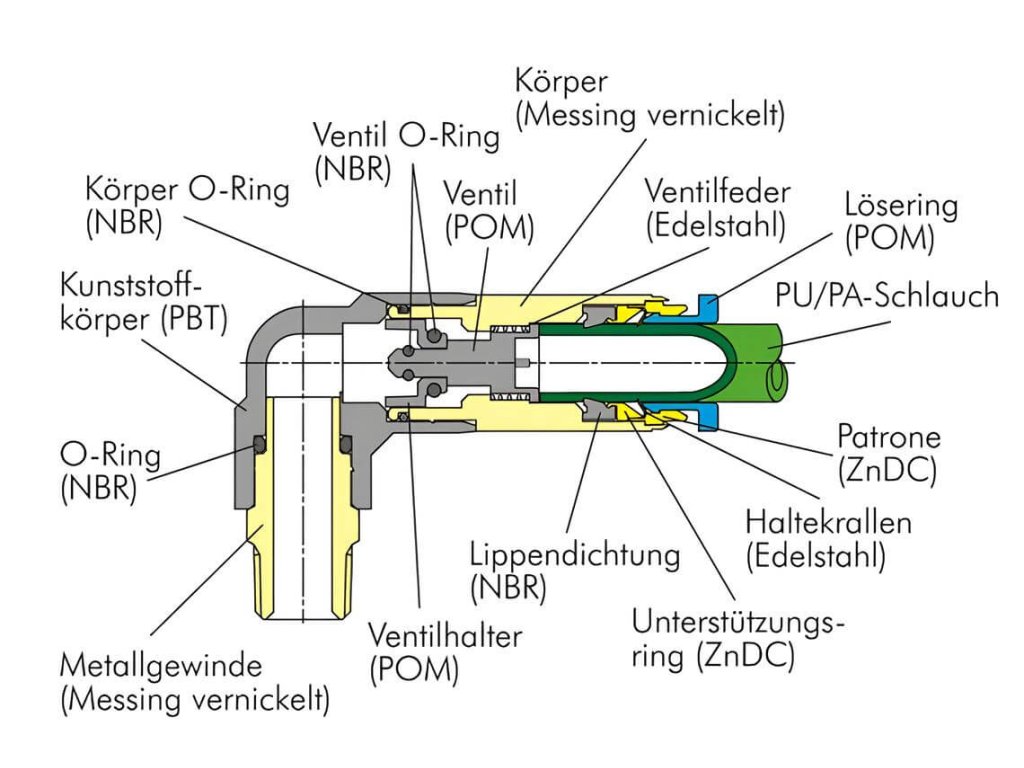

    Special corner fitting in socket design with non-return valve for 6 mm hose and 1/8" male tapered thread. If the hose is inserted in the coupling, the coupling is through, otherwise it closes. Designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Free shipping
    Free shipping
    For purchases over 5,000 CZK
    We guarantee
    We guarantee
    Extended warranty and service
    Discount voucher
    Discount voucher
    For every purchase
    Return of goods within 30 days
    Return of goods within 30 days
    Completely at our expense

    Product detailed description

    Corner self-closing screwdriver male thread SPL-186

    • Special couplings in lockable design
    • If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Corner self-closing L-couplings
    Pressure: 10 bars

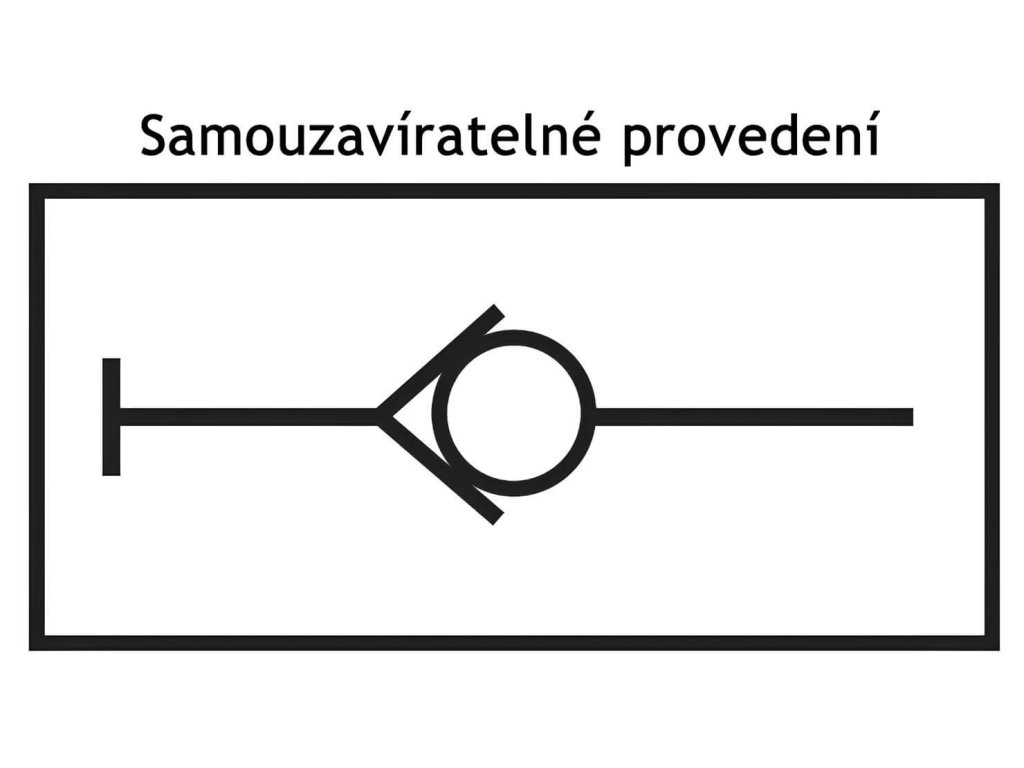

    Functions: Self-closing clutch
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer taper R
    Seals: PTFE
    Thread: R 1/8"
    Connection system: Plug-in system
    L-coupling 6 - R1/8"
