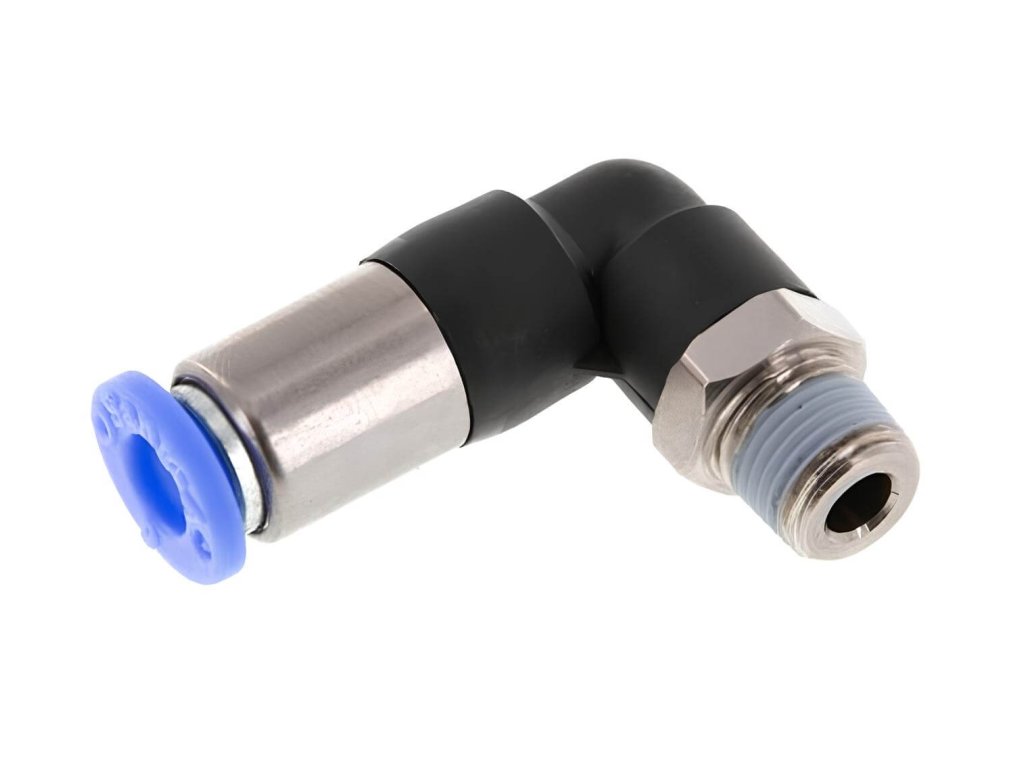

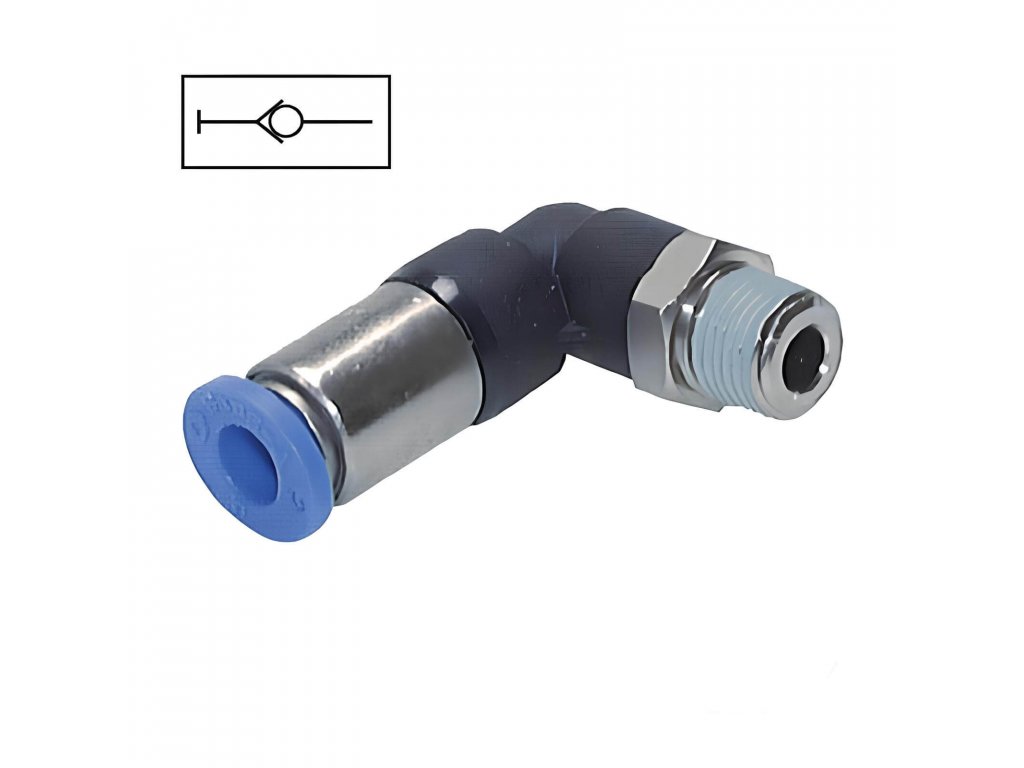

    Self-closing l-coupling, rotatable external 6 mm - M6

    Code: SPL-M56
    Not rated
    396 Kč –5 %
    Self-closing l-coupling, rotatable external 6 mm - M6
    396 Kč –5 % 376 Kč / pcs 311 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    Special corner fitting in socket design with non-return valve for 6 mm hose and external metric thread M5. If the hose is inserted in the coupling, the coupling is through, otherwise it closes. Designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

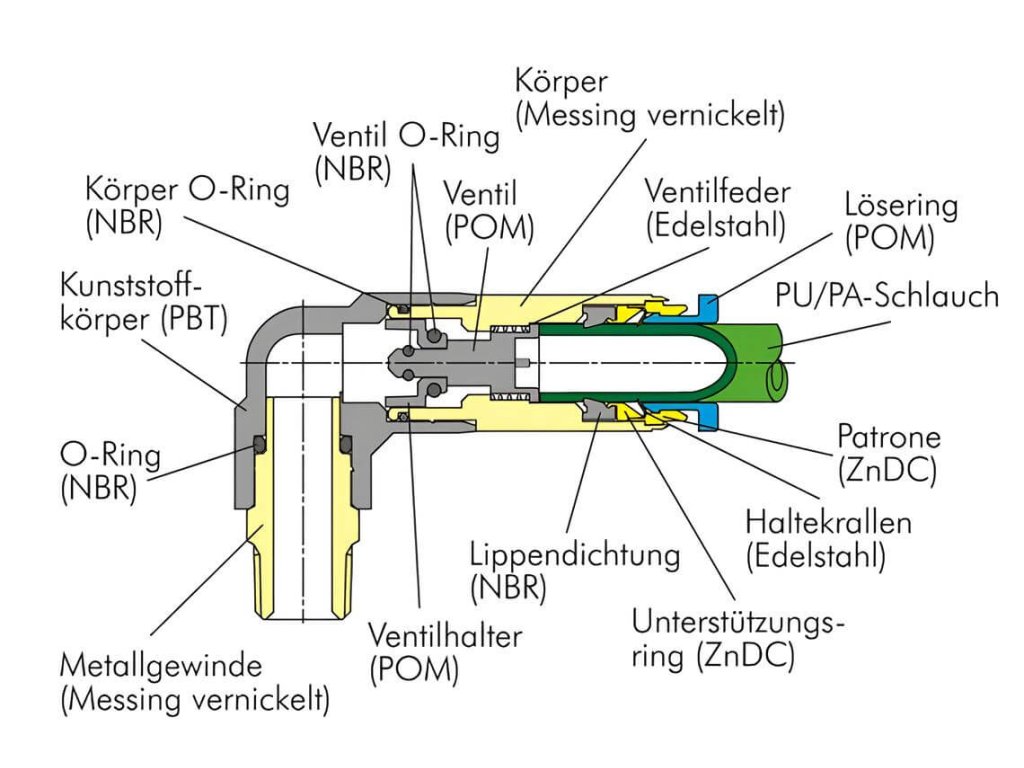

    Self-closing corner fitting male thread SPL-M56

    • Special couplings in lockable design

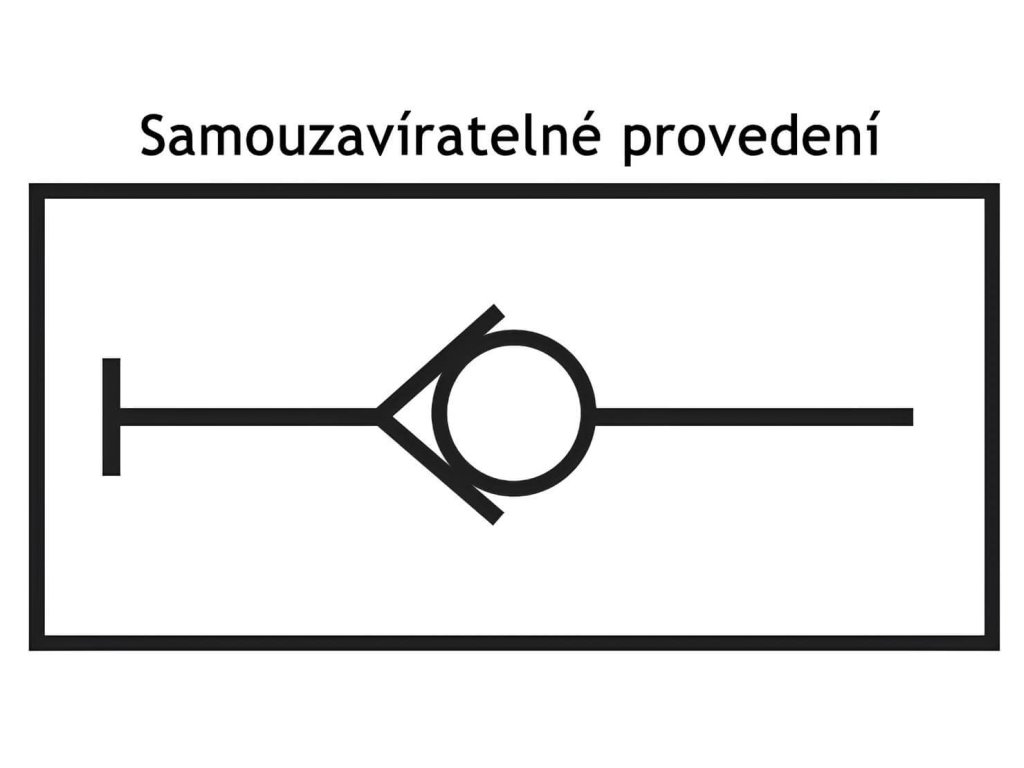

    • If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Corner self-closing L-couplings
    Pressure: 10 bars
    Functions: Self-closing clutch
    A tube: 6 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Metric outer
    Seals: PTFE
    Thread: M6
    Connection system: Plug-in system
