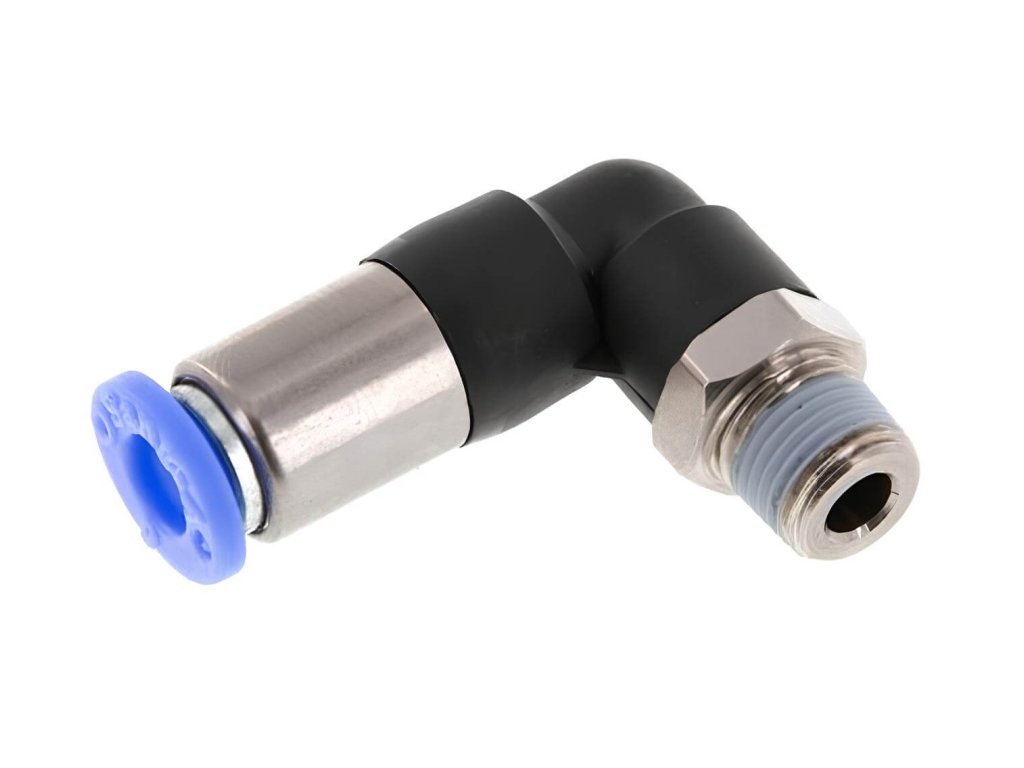

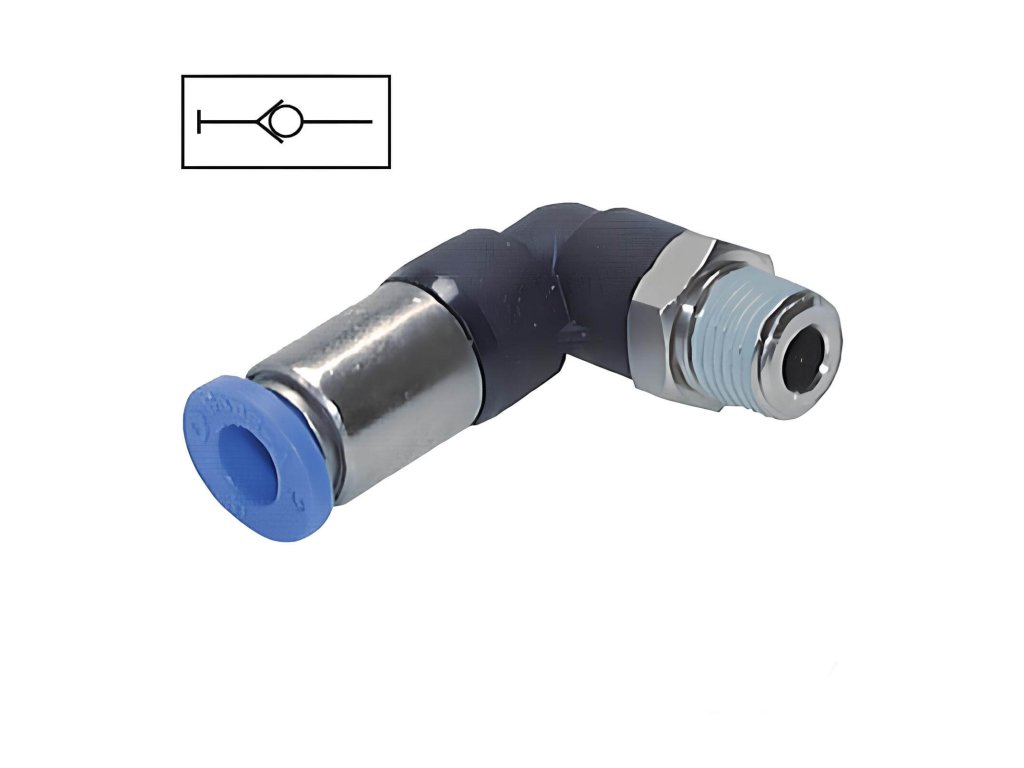

    Self-locking l-coupling swivel outer 4 mm - R1/8"

    Code: SPL-184
    Not rated
    243 Kč –4 %
    Self-locking l-coupling swivel outer 4 mm - R1/8"
    243 Kč –4 % 231 Kč / pcs 191 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024
    Special corner fitting in socket design with check valve for 4 mm hose and 1/8" male tapered thread. If the hose is inserted in the coupling, the coupling is through, otherwise it closes. Designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

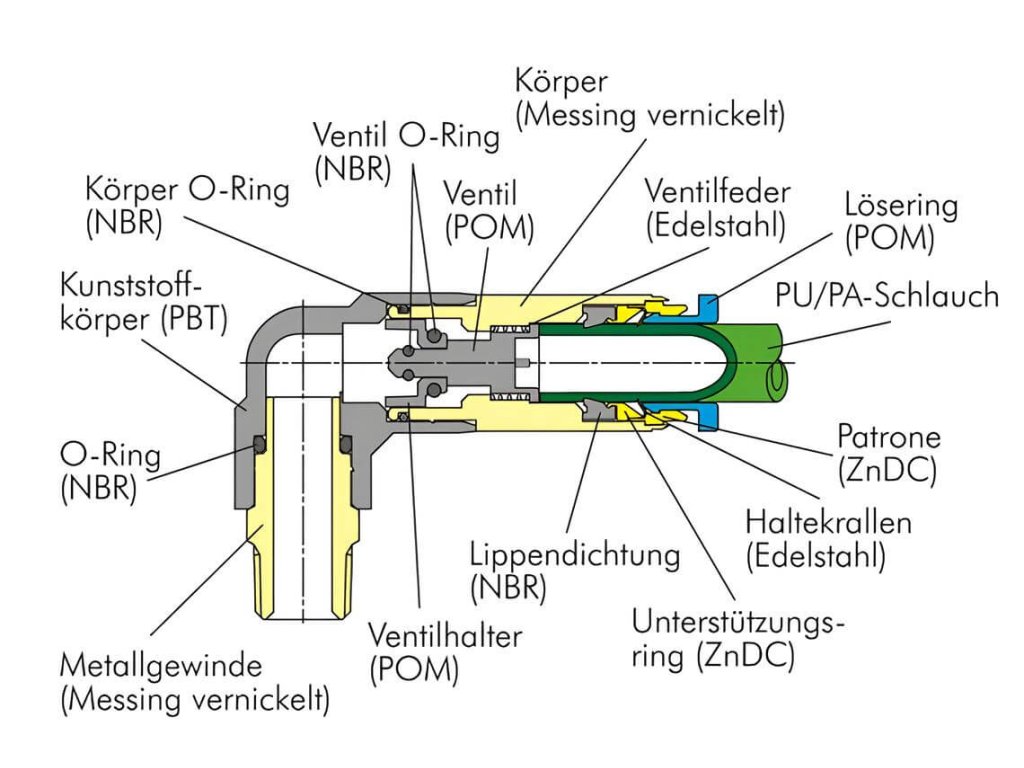

    Corner self-closing screwdriver male thread SPL-184

    • Special couplings in lockable design

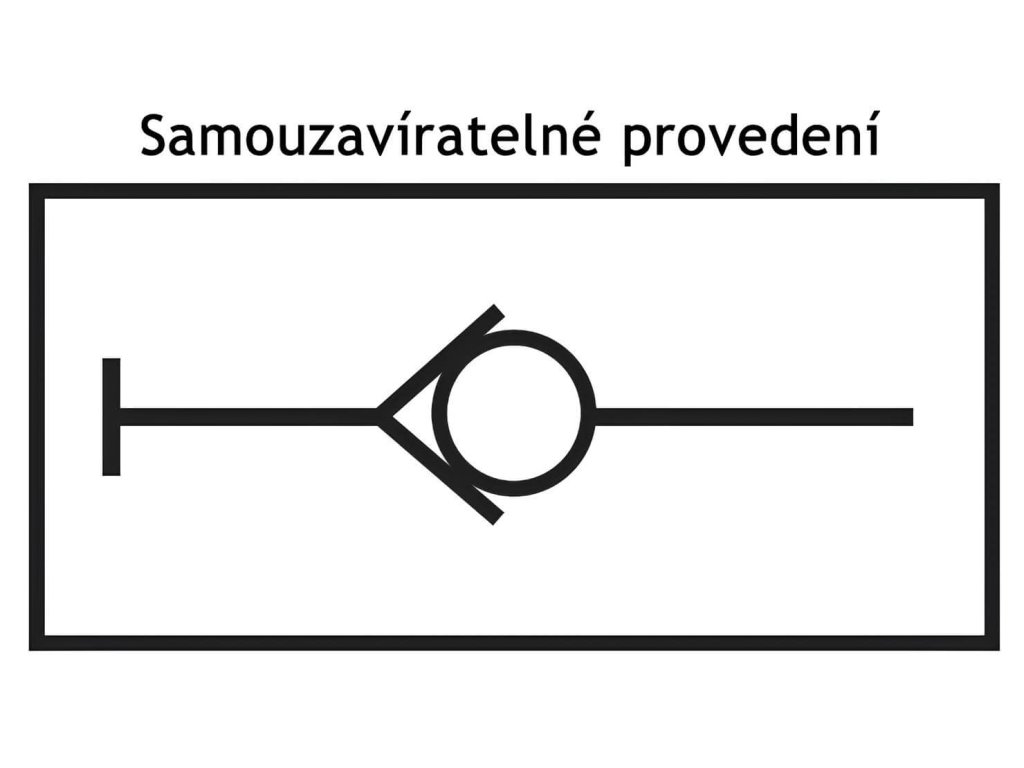

    • If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Corner self-closing L-couplings
    Pressure: 10 bars
    Functions: Self-closing clutch
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Outer taper R
    Seals: PTFE
    Thread: R 1/8"
    Connection system: Plug-in system
    L-coupling 4 - R1/8"
