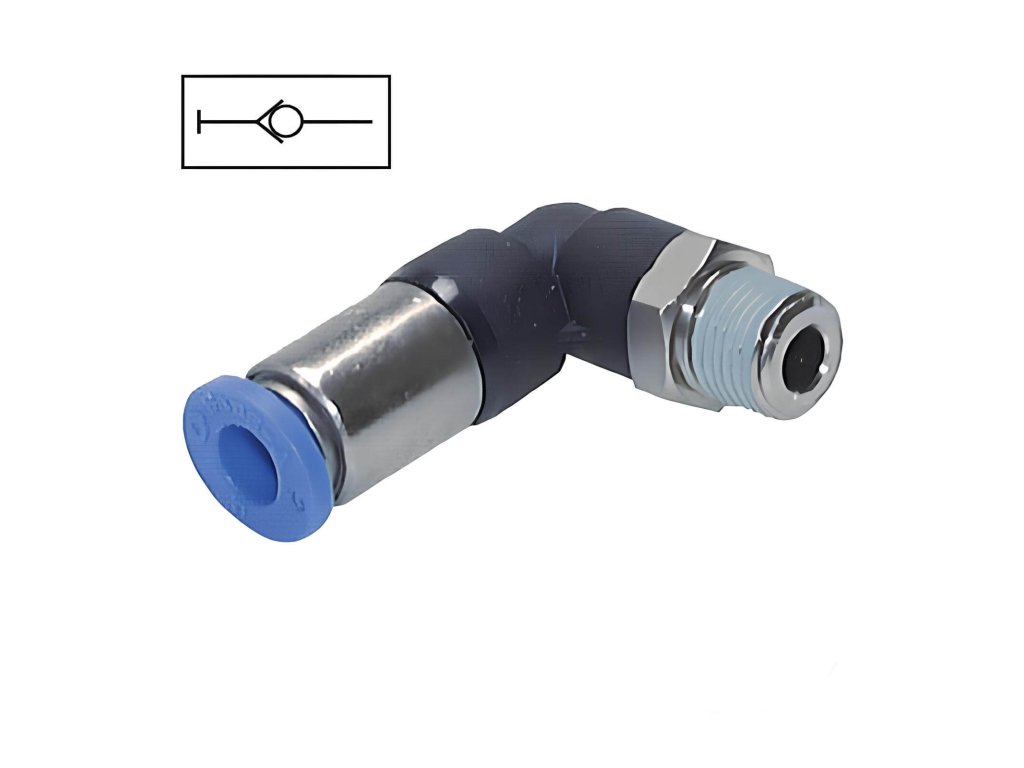

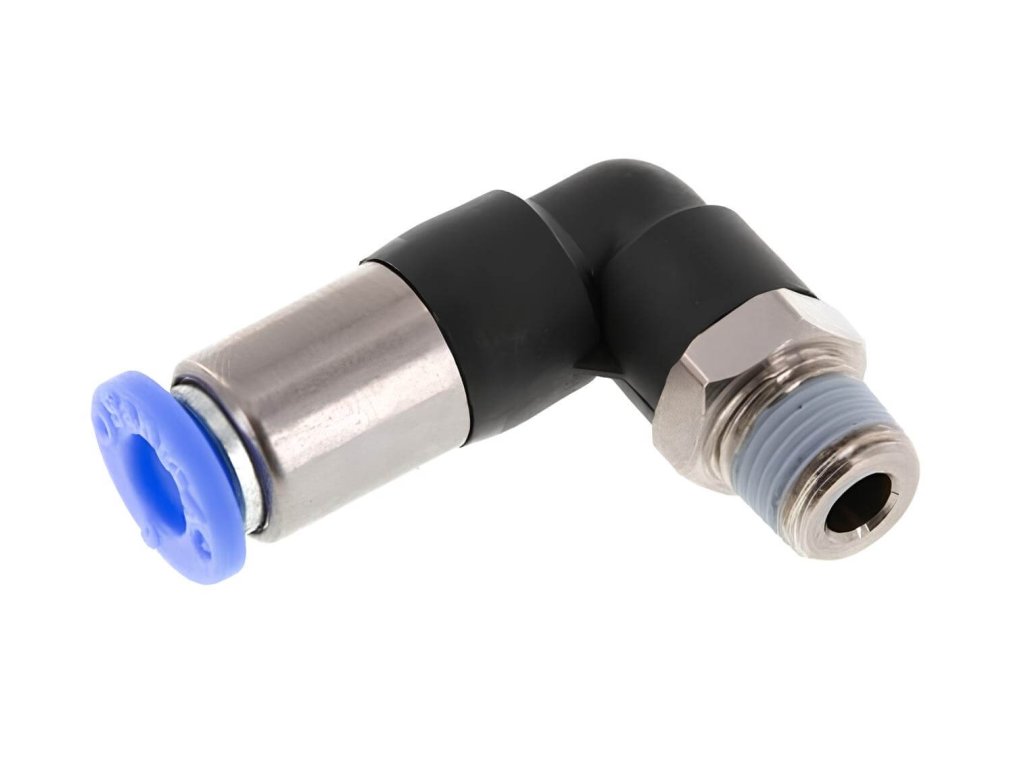

    Self-closing l-coupling, rotatable external 4 mm - M5

    Code: SPL-M54
    Not rated
    359 Kč –5 %
    Self-closing l-coupling, rotatable external 4 mm - M5
    359 Kč –5 % 341 Kč / pcs 282 Kč excl. VAT
    up to 14 days
    Delivery to:
    10.12.2024

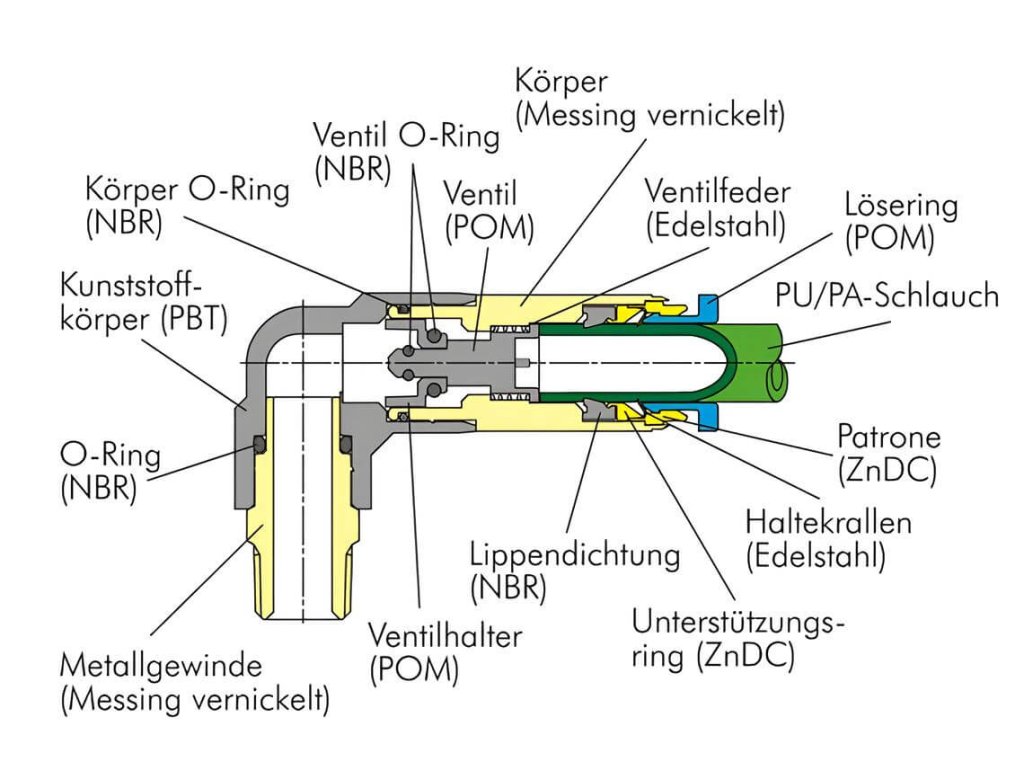

    Special corner fitting in socket design with check valve for 4 mm hose and M5 external metric thread. If the hose is inserted in the coupling, the coupling is through, otherwise it closes. Designed especially for automation, measuring and control technology and compressed air distribution in industry, engineering and automotive technology.

    Detailed information

    Product detailed description

    Self-closing corner fitting male thread SPL-M54

    • Special couplings in lockable design

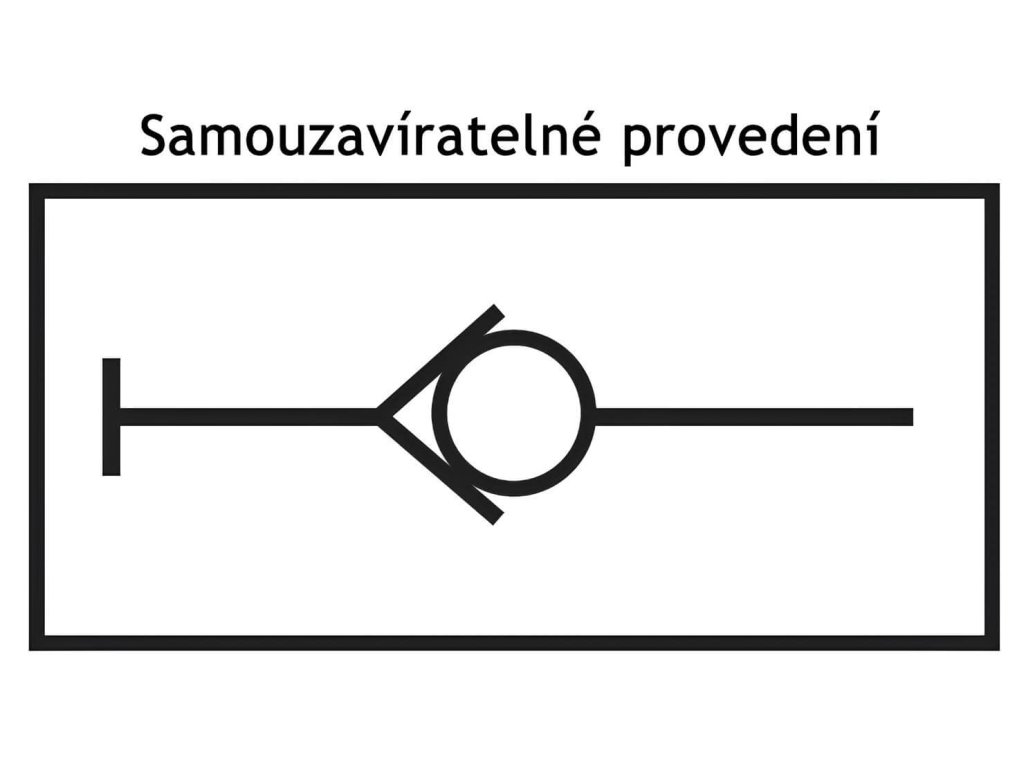

    • If the hose is inserted in the coupling, the coupling is through, otherwise it closes itself
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology

    Additional parameters

    Category: Corner self-closing L-couplings
    Pressure: 10 bars
    Functions: Self-closing clutch
    A tube: 4 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: 0 / +60 °C
    Thread design: Metric outer
    Seals: PTFE
    Thread: M5
    Connection system: Plug-in system
