Quick couplings with external pipe thread G1/2"
Code: ES12A
Related products
Product detailed description
Quick couplings with external pipe thread ES12A
- Universal quick couplings in pure or nickel-plated brass MS 58
- New mandrel contour for better hose fit and easier installation
- All quick couplings can be supplied with full flow (without valves) or with shut-off valve on request
- Materials used : Connecting parts, locking ring, valve body, valve in brass MS 58, springs, spacer ring, stainless steel ball, perbunan gasket, nipples in brass MS 58 or steel, galvanized and yellow chromated.
- Designed for compressed air in industry, crafts. Can also be used for water and other media.
Additional parameters
| Category: | Quick couplings EC male thread G |
|---|---|
| Pressure: | 35 bar |
| DN: | 7,2 |
| Material: | Brass |
| Maximum flow rate: | 1,100 l/min |
| Medium: | Air |
| Temperature: | -20/+100°C |

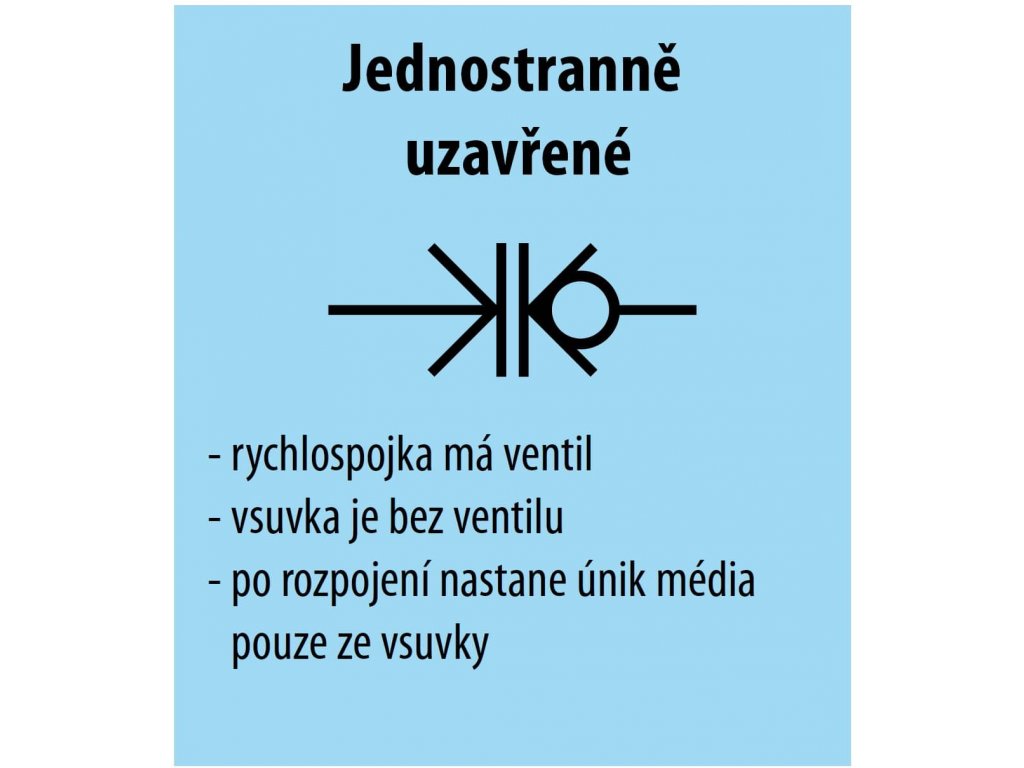

| Closure: | One-sided closed |
| Thread: | G 1/2" |
| Safety ring: | No |
| Clutch profile: | EC (DN7.2) |
| Male / female: | Quick coupler |
| Connection system: | Quick couplings |
