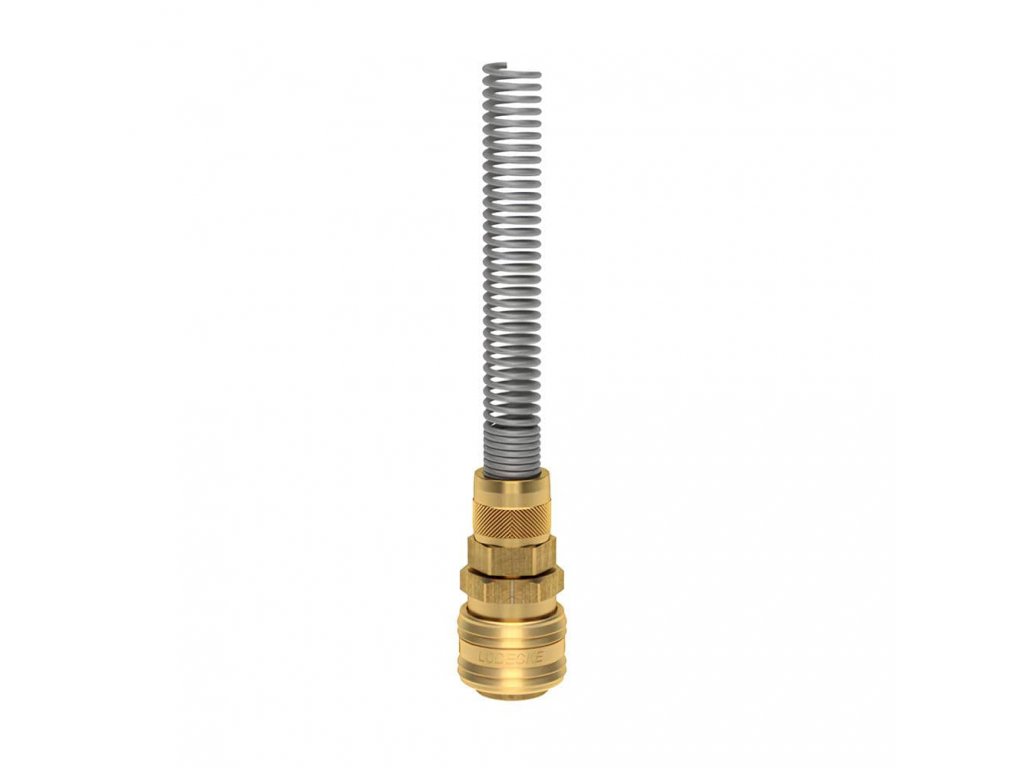

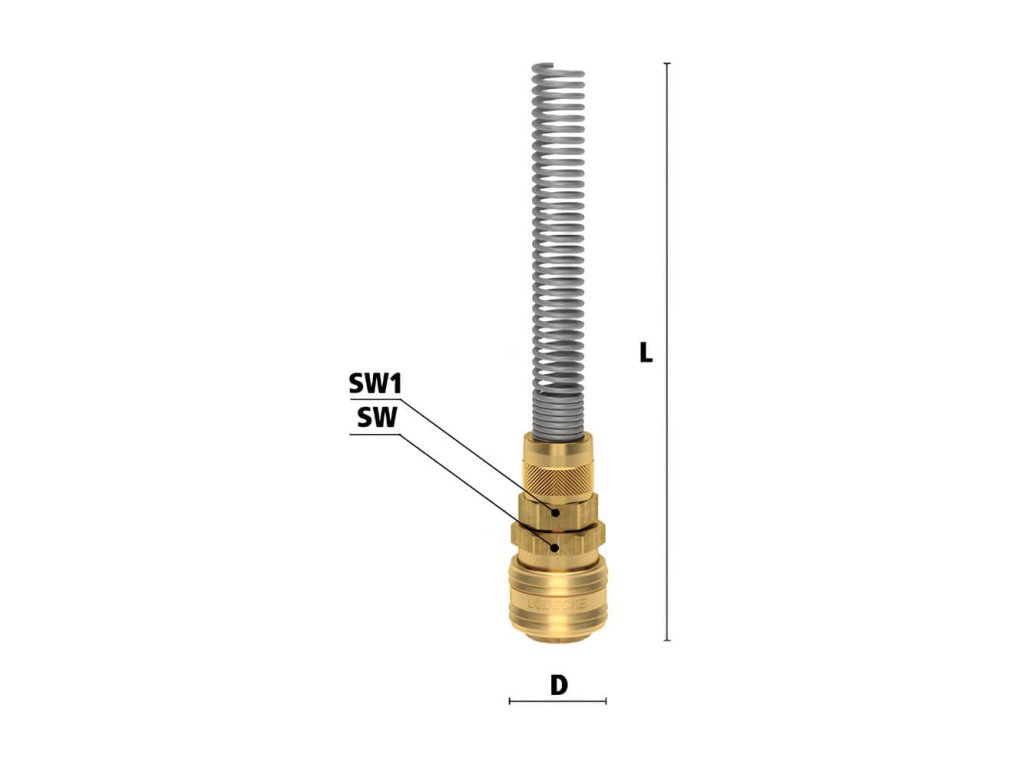

    Quick couplings with 10 x 8 mm union nut and spring

    Code: ES8TQF
    Tip
    Not rated
    Brand: Lüdecke
    220 Kč –5 %
    Quick couplings with 10 x 8 mm union nut and spring
    220 Kč –5 % 209 Kč / pcs 173 Kč excl. VAT
    Stock (30 pcs)
    Delivery to:
    20.11.2024

    Female quick coupling DN7,2 with mandrel, swivel nut and spring for 10/8 mm hose. Design in pure brass MS 58 equipped with shut-off valve. New mandrel contour for better seating of the anti-twist and easier mounting. Designed for compressed air in industry, crafts. Can also be used for water and other media. Maximum air flow 1 100 l/min.

    Detailed information

    Related products

    ES nipples with union nut for 8 x 10 mm hose
    Tip
    103 Kč –4 %
    ES nipples with union nut for 8 x 10 mm hose
    Stock (36 pcs)
    81 Kč excl. VAT
    98 Kč

    ES male male quick coupling DN7,2 with coupling nut for 8 x 10 mm hose. Pure brass version MS 58 with one-way closable valve at female quick coupling. New mandrel contour for...

    Code: ES8SQ
    ES nipples with union nut and spring for 8 x 10 mm hose
    Tip
    134 Kč –5 %
    ES nipples with union nut and spring for 8 x 10 mm hose
    Stock (27 pcs)
    105 Kč excl. VAT
    127 Kč

    ES male male quick coupling DN7,2 with coupling nut and protective spring for 8 x 10 mm hose. Pure brass version MS 58 with one-way closable valve at female quick coupling. New...

    Code: ES8SQF
    Nickel-plated nipple with screw and cap nut 10 x 8 mm
    224 Kč –4 %
    Nickel-plated nipple with screw and cap nut 10 x 8 mm
    up to 14 days
    176 Kč excl. VAT
    213 Kč

    Nipple ESN - male quick coupling DN7,2 with coupling nut for 8 x 10 mm hose. Version nickel-plated brass with one-way closable valve at the quick coupling - female. New mandrel...

    Code: ESN8SQ
    ESX812SQF rychlospojka DN72 LUDECKE
    Tip
    147 Kč –5 %
    ESX nipple with union nut and spring 8 x 10 mm
    Stock (117 pcs)
    115 Kč excl. VAT
    139 Kč

    Nipple for ESX DN7.2 quick coupling with coupling nut and protective spring for 8 × 10 mm hose. Design in pure brass MS 58 free passage without valve. Only the female can be...

    Code: ESX8SQF
    PUBM spiral hose without ends 12/8 mm - length 2 m
    946 Kč –5 %
    PUBM spiral hose without ends 12/8 mm - length 2 m
    Stock (5 pcs)
    742 Kč excl. VAT
    898 Kč

    High-quality blue spiral hose 12/8 mm with extreme spiral return capability of 2.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM81225
    PUBY spiral hose without ends 12/8 mm - length 2 m
    946 Kč –5 %
    PUBY spiral hose without ends 12/8 mm - length 2 m
    up to 30 days
    742 Kč excl. VAT
    898 Kč

    High quality yellow spiral hose 12/8 mm with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY81225
    PUBR spiral hose without ends 12/8 mm - length 2 m
    946 Kč –5 %
    PUBR spiral hose without ends 12/8 mm - length 2 m
    up to 30 days
    742 Kč excl. VAT
    898 Kč

    High quality red spiral hose 12/8 mm with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBR81225
    PUBS spiral hose without ends 12/8 mm - length 2 m
    946 Kč –5 %
    PUBS spiral hose without ends 12/8 mm - length 2 m
    up to 30 days
    742 Kč excl. VAT
    898 Kč

    High quality black 12/8 mm spiral hose with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBS81225
    PUBM spiral hose without ends 12/8 mm - length 3 m
    1 503 Kč –4 %
    PUBM spiral hose without ends 12/8 mm - length 3 m
    Stock (3 pcs)
    1 180 Kč excl. VAT
    1 428 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 5 m and long life. Made of branded granulate elastollan 1190 without end quick connectors....

    Code: PUBM8125
    PUBY spiral hose without ends 12/8 mm - length 3 m
    1 503 Kč –4 %
    PUBY spiral hose without ends 12/8 mm - length 3 m
    up to 30 days
    1 180 Kč excl. VAT
    1 428 Kč

    High quality yellow spiral hose 12/8 mm with extreme spiral return capability of 5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBY8125
    PUBR spiral hose without ends 12/8 mm - length 3 m
    1 503 Kč –4 %
    PUBR spiral hose without ends 12/8 mm - length 3 m
    up to 30 days
    1 180 Kč excl. VAT
    1 428 Kč

    High quality red spiral hose 12/8 mm with extreme spiral return capability of 5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBR8125
    PUBS spiral hose without ends 12/8 mm - length 3 m
    1 503 Kč –4 %
    PUBS spiral hose without ends 12/8 mm - length 3 m
    up to 30 days
    1 180 Kč excl. VAT
    1 428 Kč

    High quality black 12/8 mm spiral hose with extreme spiral return capability of 5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBS8125
    PUBM spiral hose without ends 12/8 mm - length 6 m
    2 069 Kč –5 %
    PUBM spiral hose without ends 12/8 mm - length 6 m
    Stock (2 pcs)
    1 624 Kč excl. VAT
    1 965 Kč

    High quality blue spiral hose 12/8 mm with extreme spiral return capability of 7.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM81275
    PUBY spiral hose without ends 12/8 mm - length 6 m
    2 069 Kč –5 %
    PUBY spiral hose without ends 12/8 mm - length 6 m
    Stock (2 pcs)
    1 624 Kč excl. VAT
    1 965 Kč

    High quality yellow spiral hose 12/8 mm with extreme spiral return capability of 7.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY81275
    PUBR spiral hose without ends 12/8 mm - length 6 m
    2 069 Kč –5 %
    PUBR spiral hose without ends 12/8 mm - length 6 m
    up to 30 days
    1 624 Kč excl. VAT
    1 965 Kč

    High quality red spiral hose 12/8 mm with extreme spiral return capability of 7.5 m and long life without quick couplings. Made of branded granular elastollan 1190. Designed for...

    Code: PUBR81275
    PUBS spiral hose without ends 12/8 mm - length 6 m
    2 069 Kč –5 %
    PUBS spiral hose without ends 12/8 mm - length 6 m
    up to 30 days
    1 624 Kč excl. VAT
    1 965 Kč

    High quality black 12/8 mm spiral hose with extreme spiral return capability of 7.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBS81275
    Show all related products Previous product Next product

    Product detailed description

    Quick coupling with overflow nut and spring - ES8TQF

    • Universal quick couplings in pure or nickel-plated brass MS 58
    • New mandrel contour for better hose fit and easier installation
    • All quick couplings can be supplied with full flow (without valves) or with shut-off valve on request
    • Materials used : Connecting parts, locking ring, valve body, valve in brass MS 58, springs, spacer ring, stainless steel ball, perbunan gasket, nipples in brass MS 58 or steel, galvanized and yellow chromated.
    • Designed for compressed air in industry, crafts. Can also be used for water and other media.

    Additional parameters

    Category: EC quick couplings with nut and protective spring
    Pressure: 35 bar
    DN: 7,2
    Material: Brass

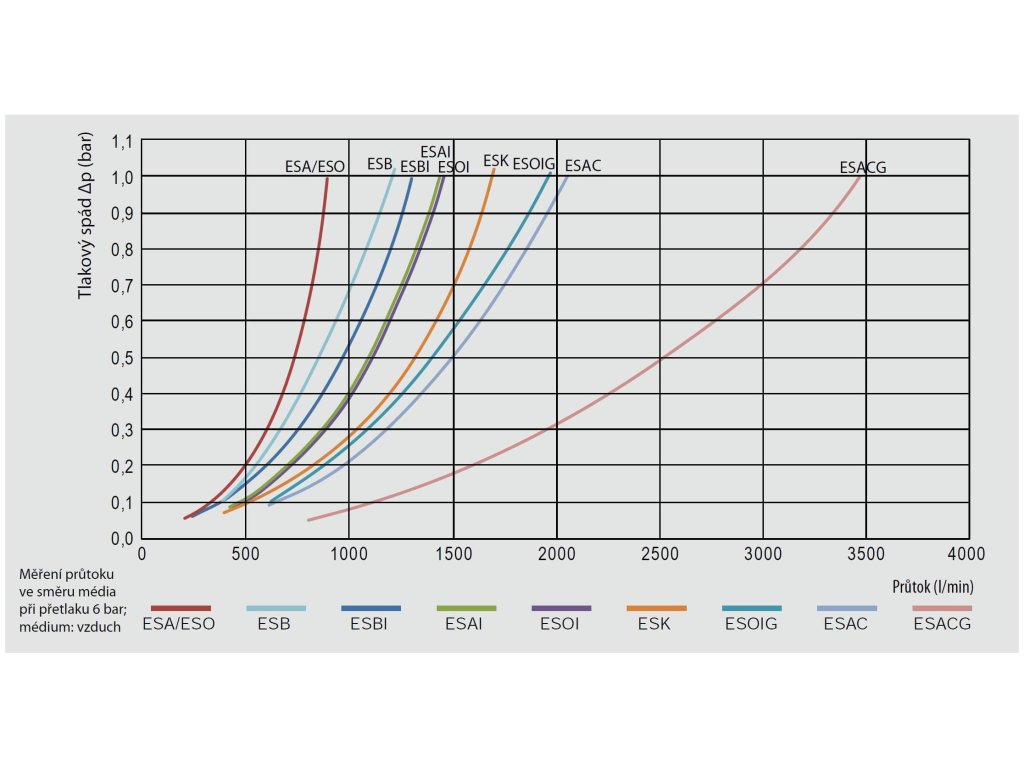

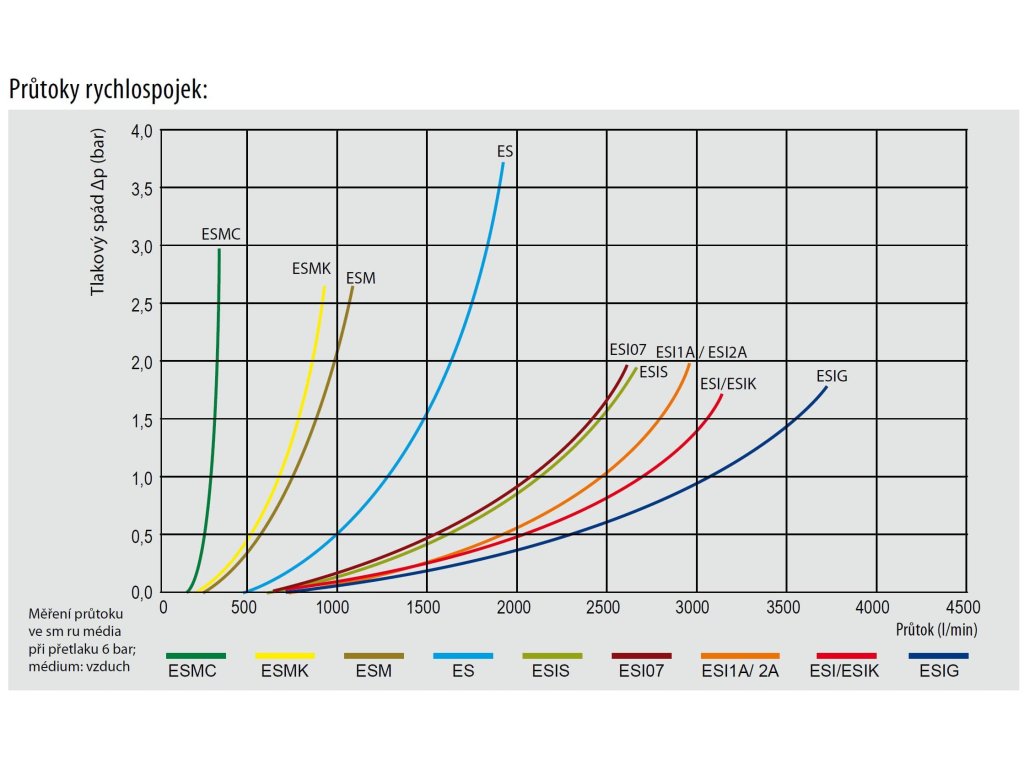

    Maximum flow rate: 1,100 l/min
    Medium: Air
    For the hose: 8 x 10 mm
    Temperature: -20/+100°C
    Thorn on the hose: 8 mm

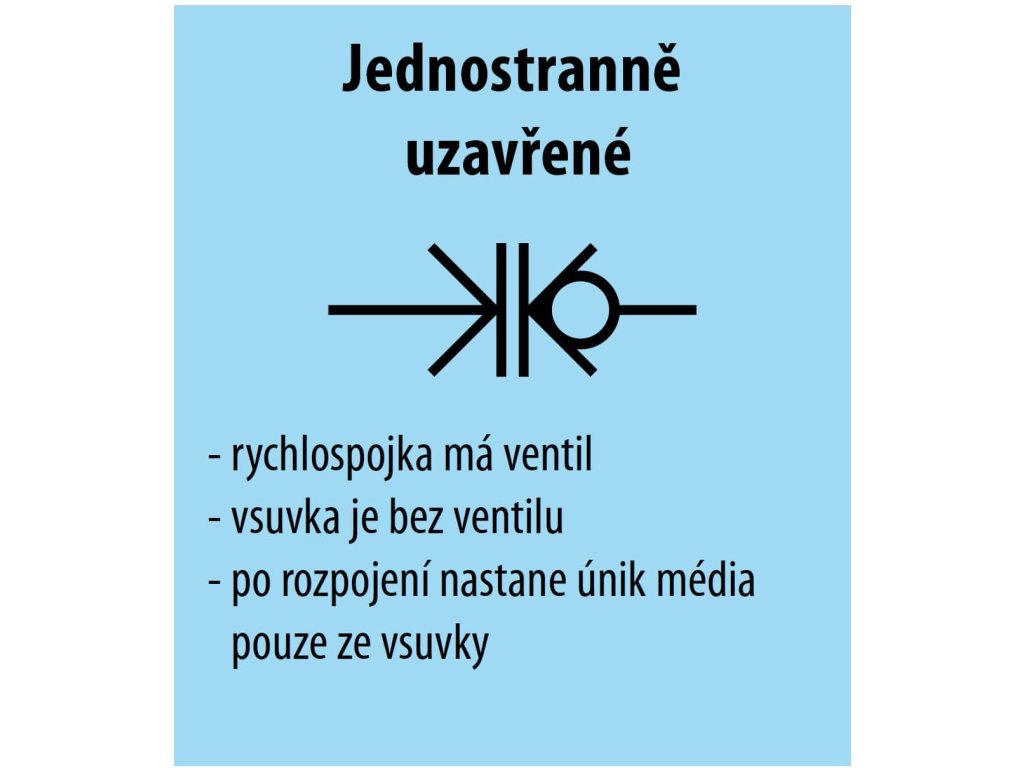

    Closure: One-sided closed
    Safety ring: No

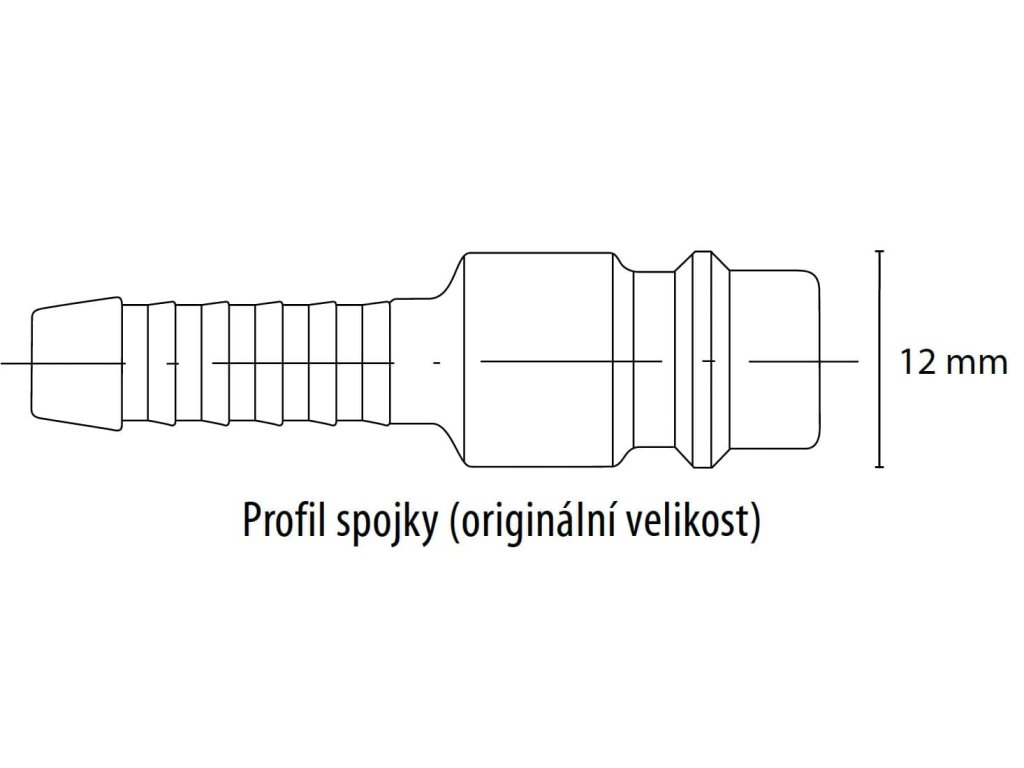

    Clutch profile: EC (DN7.2)
    Male / female: Quick coupler
    Connection system: Quick couplings
