    Quick couplings with union nut 10 x 6.5 mm and spring

    Code: ES6510TQF
    Tip
    Not rated
    Brand: Lüdecke
    234 Kč –4 %
    Quick couplings with union nut 10 x 6.5 mm and spring
    234 Kč –4 % 223 Kč / pcs 184 Kč excl. VAT
    Stock (18 pcs)
    Delivery to:
    20.11.2024

    Female quick coupling DN7,2 with shank, swivel nut and protection spring for 10 x 6,5 mm hose. Design in pure brass MS 58 with one-way closable valve. New mandrel contour for better seating of the anti-twist and easier mounting. Designed for compressed air in industry, crafts. Can also be used for water and other media. Maximum air flow 1 100 l/min.

    Detailed information

    Related products

    ES nipples with union nut and spring for 6.5 x 10 mm hose
    Tip
    163 Kč –4 %
    ES nipples with union nut and spring for 6.5 x 10 mm hose
    Stock (39 pcs)
    128 Kč excl. VAT
    155 Kč

    ES male male quick coupling DN7,2 with coupling nut and protective spring for 6,5 x 10 mm hose. Pure brass version MS 58 with one-way closable valve at female quick coupling....

    Code: ES6510SQF
    ESX6SQF rychlospojka DN72 LUDECKE
    Tip
    135 Kč –4 %
    ESX nipple with union nut and spring 6.5 x 10 mm
    Stock (525 pcs)
    107 Kč excl. VAT
    129 Kč

    Nipple for ESX DN7.2 quick coupling with coupling nut and protective spring for 6.5 × 10 mm hose. Design in pure brass MS 58 free passage without valve. Only the female can be...

    Code: ESX6510SQF
    PU spiral hose without ends 10/6.5 mm - length 3 m
    325 Kč –9 %
    PU spiral hose without ends 10/6.5 mm - length 3 m
    Stock (120 pcs)
    242 Kč excl. VAT
    293 Kč

    The blue plastic spiral hose 10/6.5 mm polyurethane in 5 m length is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ65105
    PU spiral hose without ends 10/6.5 mm - length 4.5 m
    450 Kč –10 %
    PU spiral hose without ends 10/6.5 mm - length 4.5 m
    Stock (3 pcs)
    335 Kč excl. VAT
    405 Kč

    The blue plastic spiral hose 10/6.5 mm made of polyurethane in a length of 7.5 m is characterized by high resistance to breakage, abrasion and pressure. The small diameter of...

    Code: PUBJ651075
    PU spiral hose without ends 10/6.5 mm - length 6.5 m
    632 Kč –9 %
    PU spiral hose without ends 10/6.5 mm - length 6.5 m
    Stock (45 pcs)
    470 Kč excl. VAT
    569 Kč

    The blue plastic spiral hose 10/6.5 mm polyurethane, 10 m long, is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ651010
    PU spiral hose without ends 10/6.5 mm - length 9 m
    870 Kč –10 %
    PU spiral hose without ends 10/6.5 mm - length 9 m
    Stock (11 pcs)
    647 Kč excl. VAT
    783 Kč

    The blue plastic spiral hose 10/6.5 mm polyurethane, 15 m long, is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ651015
    PUBM spiral hose without ends 10/6.5 mm - length 2 m
    837 Kč –5 %
    PUBM spiral hose without ends 10/6.5 mm - length 2 m
    Stock (5 pcs)
    657 Kč excl. VAT
    795 Kč

    High-quality blue spiral hose 10/6.5 mm with extreme spiral return capability of 2.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM651025
    PUBY spiral hose without ends 10/6.5 mm - length 2 m
    837 Kč –5 %
    PUBY spiral hose without ends 10/6.5 mm - length 2 m
    up to 30 days
    657 Kč excl. VAT
    795 Kč

    High quality yellow spiral hose 10/6.5 mm with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY651025
    PUBR spiral hose without ends 10/6.5 mm - length 2 m
    837 Kč –5 %
    PUBR spiral hose without ends 10/6.5 mm - length 2 m
    up to 30 days
    657 Kč excl. VAT
    795 Kč

    High quality red spiral hose 10/6.5 mm with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBR651025
    PUBS spiral hose without ends 10/6.5 mm - length 2 m
    837 Kč –5 %
    PUBS spiral hose without ends 10/6.5 mm - length 2 m
    up to 30 days
    657 Kč excl. VAT
    795 Kč

    High quality black 10/6.5 mm spiral hose with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBS651025
    PUBM spiral hose without ends 10/6.5 mm - length 4 m
    1 287 Kč –5 %
    PUBM spiral hose without ends 10/6.5 mm - length 4 m
    Stock (3 pcs)
    1 010 Kč excl. VAT
    1 222 Kč

    High quality blue spiral hose 10/6,5 mm with extreme spiral return capability of 5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM65105
    PUBY spiral hose without ends 10/6.5 mm - length 4 m
    1 287 Kč –5 %
    PUBY spiral hose without ends 10/6.5 mm - length 4 m
    up to 30 days
    1 010 Kč excl. VAT
    1 222 Kč

    High quality yellow spiral hose 10/6.5 mm with extreme spiral return capability of 2.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY65105
    PUBR spiral hose without ends 10/6.5 mm - length 4 m
    1 287 Kč –5 %
    PUBR spiral hose without ends 10/6.5 mm - length 4 m
    up to 30 days
    1 010 Kč excl. VAT
    1 222 Kč

    High quality red spiral hose 10/6.5 mm with extreme spiral return capability of 5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBR65105
    PUBS spiral hose without ends 10/6.5 mm - length 4 m
    1 287 Kč –5 %
    PUBS spiral hose without ends 10/6.5 mm - length 4 m
    up to 30 days
    1 010 Kč excl. VAT
    1 222 Kč

    High quality black spiral hose 10/6.5 mm with extreme spiral return capability of 5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBS65105
    PUBM spiral hose without ends 10/6.5 mm - length 6 m
    1 736 Kč –5 %
    PUBM spiral hose without ends 10/6.5 mm - length 6 m
    Stock (4 pcs)
    1 363 Kč excl. VAT
    1 649 Kč

    High-quality blue spiral hose 10/6.5 mm with extreme spiral return capability of 7.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM651075
    PUBY spiral hose without ends 10/6.5 mm - length 6 m
    1 736 Kč –5 %
    PUBY spiral hose without ends 10/6.5 mm - length 6 m
    up to 30 days
    1 363 Kč excl. VAT
    1 649 Kč

    High quality yellow spiral hose 10/6.5 mm with extreme spiral return capability of 7.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY651075
    Show all related products Previous product Next product

    Product detailed description

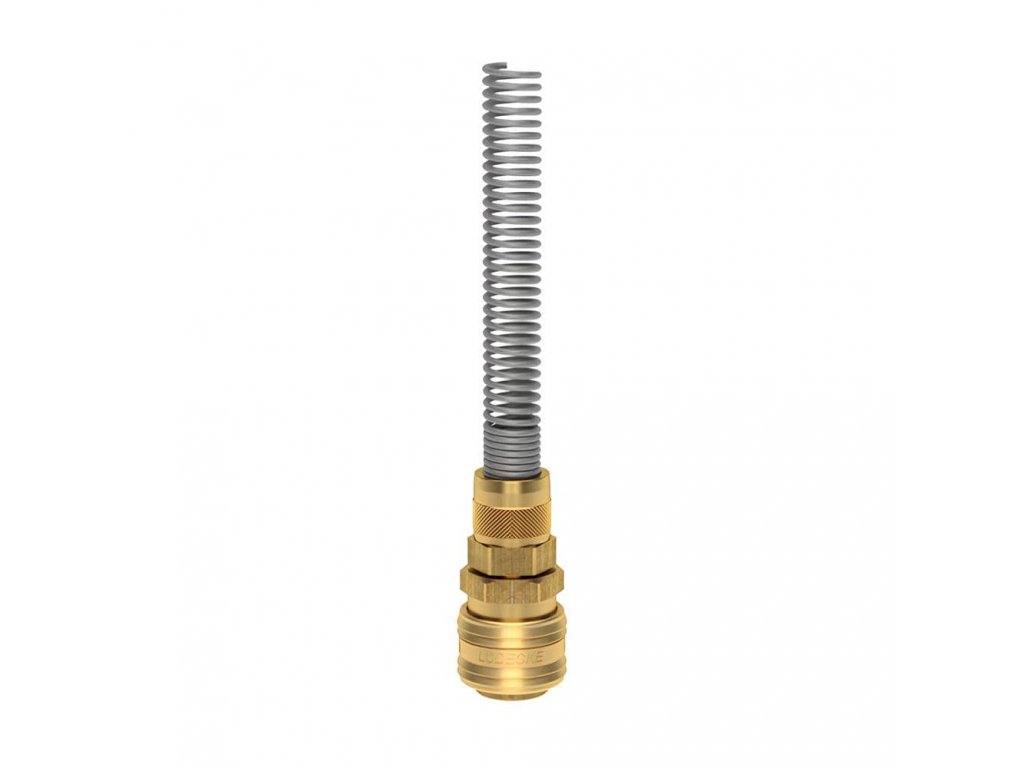

    Quick coupling with lock nut and protective spring - ES6510TQF

    • universal quick couplings in one-sided closable design
    • materials used:
    • body, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring: stainless steel 1.4310
    • pins: stainless steel 1.4305
    • seal: NBR
    • nipple: brass MS 58
    • designed for compressed air in industry and crafts, can be used for water and other media

    Additional parameters

    Category: EC quick couplings with nut and protective spring
    Pressure: 35 bar
    DN: 7,2
    Material: Brass

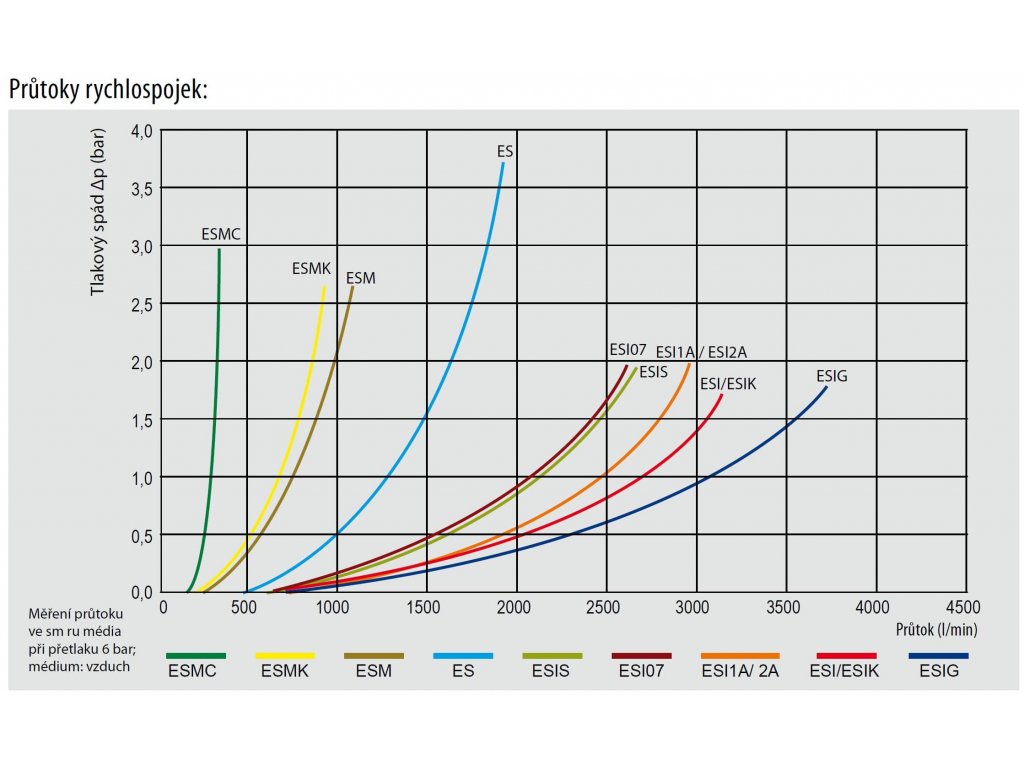

    Maximum flow rate: 1,100 l/min
    Medium: Air
    For the hose: 6.5 x 10 mm
    Temperature: -20/+100°C
    Thorn on the hose: 6.5 mm

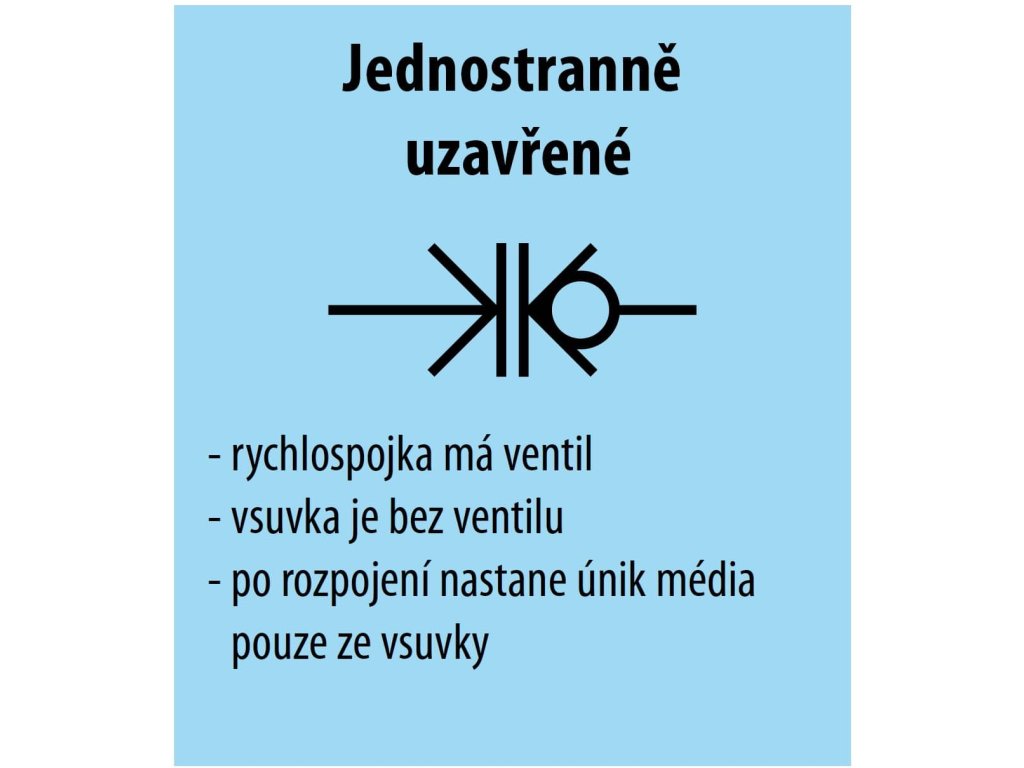

    Closure: One-sided closed
    Safety ring: No
    Clutch profile: EC (DN7.2)
    Male / female: Quick coupler
    Connection system: Quick couplings
