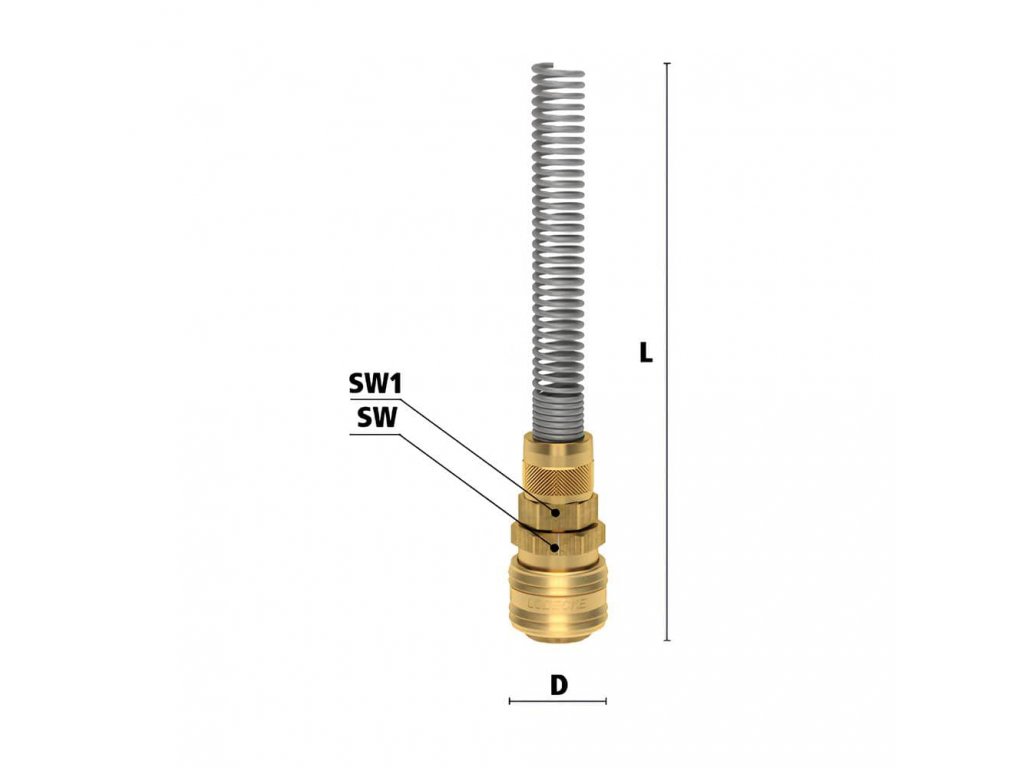

    Quick couplings with 6 x 4 mm union nut and spring

    Code: ES4TQF
    Tip
    Not rated
    Brand: Lüdecke
    233 Kč –5 %
    Quick couplings with 6 x 4 mm union nut and spring
    233 Kč –5 % 221 Kč / pcs 183 Kč excl. VAT
    Stock (19 pcs)
    Delivery to:
    25.12.2024

    Female quick coupling DN7,2 with shank, swivel nut and protection spring for 6 x 4 mm hose. Design in pure brass MS 58 with one-way closable valve. New mandrel contour for better seating of the anti-twist and easier mounting. Designed for compressed air in industry, crafts. Can also be used for water and other media. Maximum air flow 1 100 l/min.

    Detailed information

    Related products

    ES nipples with union nut for 4 x 6 mm hose
    Tip
    76 Kč –5 %
    ES nipples with union nut for 4 x 6 mm hose
    Stock (18 pcs)
    60 Kč excl. VAT
    72 Kč

    ES male male quick coupling DN7,2 with coupling nut for 4 x 6 mm hose. Pure brass version MS 58 with one-way closable valve at female quick coupling. New mandrel contour for...

    Code: ES4SQ
    ES nipples with union nut and spring for 4 x 6 mm hose
    Tip
    111 Kč –5 %
    ES nipples with union nut and spring for 4 x 6 mm hose
    Stock (32 pcs)
    87 Kč excl. VAT
    105 Kč

    ES male male quick coupling DN7,2 with coupling nut and protective spring for 4 x 6 mm hose. Pure brass version MS 58 with one-way closable valve at female quick coupling. New...

    Code: ES4SQF
    Nickel-plated nipple with screw and cap nut 6 x 4 mm
    174 Kč –5 %
    Nickel-plated nipple with screw and cap nut 6 x 4 mm
    Stock (20 pcs)
    136 Kč excl. VAT
    165 Kč

    Nipple ESN - male quick coupling DN7,2 with coupling nut for 4 x 6 mm hose. Version nickel-plated brass with one-way closable valve at the quick coupling - female. New mandrel...

    Code: ESN4SQ
    PU spiral hose without ends 6/4 mm - length 10 m
    253 Kč –9 %
    PU spiral hose without ends 6/4 mm - length 10 m
    Stock (17 pcs)
    188 Kč excl. VAT
    228 Kč

    The blue plastic spiral hose 6/4 mm polyurethane, 10 m long, is characterised by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ4610
    PU spiral hose without ends 6/4 mm - length 3 m
    136 Kč –10 %
    PU spiral hose without ends 6/4 mm - length 3 m
    Stock (81 pcs)
    101 Kč excl. VAT
    122 Kč

    The blue plastic spiral hose 6/4 mm polyurethane, 5 m long, is characterised by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves space....

    Code: PUBJ465
    PU spiral hose without ends 6/4 mm - length 4.5 m
    175 Kč –9 %
    PU spiral hose without ends 6/4 mm - length 4.5 m
    Stock (71 pcs)
    131 Kč excl. VAT
    158 Kč

    The blue plastic spiral hose 6/4 mm made of polyurethane in a length of 7.5 m is characterised by high resistance to breakage, abrasion and pressure. The small diameter of the...

    Code: PUBJ4675
    PU spiral hose without ends 6/4 mm - length 9 m
    310 Kč –10 %
    PU spiral hose without ends 6/4 mm - length 9 m
    Stock (41 pcs)
    231 Kč excl. VAT
    279 Kč

    The blue plastic spiral hose 6/4 mm polyurethane, 15 m long, is characterized by high resistance to breakage, abrasion and pressure. The small diameter of the spiral saves...

    Code: PUBJ4615
    PUBM spiral hose without ends 4/2.5 mm - length 1 m
    500 Kč –5 %
    PUBM spiral hose without ends 4/2.5 mm - length 1 m
    up to 14 days
    393 Kč excl. VAT
    475 Kč

    High-quality blue spiral hose 4/2.5 mm with extreme spiral return capability of 1.5 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM25415
    PUBY spiral hose without ends 4/2.5 mm - length 1 m
    500 Kč –5 %
    PUBY spiral hose without ends 4/2.5 mm - length 1 m
    up to 30 days
    393 Kč excl. VAT
    475 Kč

    High quality yellow spiral hose 4/2.5 mm with extreme spiral return capability of 1.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY25415
    PUBR spiral hose without ends 4/2.5 mm - length 1 m
    500 Kč –5 %
    PUBR spiral hose without ends 4/2.5 mm - length 1 m
    up to 30 days
    393 Kč excl. VAT
    475 Kč

    High-quality 4/2.5 mm red spiral hose with extreme spiral return capability of 1.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBR25415
    PUBS spiral hose without ends 4/2.5 mm - length 1 m
    500 Kč –5 %
    PUBS spiral hose without ends 4/2.5 mm - length 1 m
    up to 30 days
    393 Kč excl. VAT
    475 Kč

    High quality black 4/2.5 mm spiral hose with extreme spiral return capability of 1.5 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBS25415
    PUBM spiral hose without ends 4/2.5 mm - length 2 m
    612 Kč –4 %
    PUBM spiral hose without ends 4/2.5 mm - length 2 m
    up to 14 days
    481 Kč excl. VAT
    582 Kč

    High-quality blue spiral hose 4/2.5 mm with extreme spiral return capability of 3 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM2543
    PUBY spiral hose without ends 4/2.5 mm - length 2 m
    612 Kč –4 %
    PUBY spiral hose without ends 4/2.5 mm - length 2 m
    up to 30 days
    481 Kč excl. VAT
    582 Kč

    High quality yellow spiral hose 4/2.5 mm with extreme spiral return capability of 3 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed...

    Code: PUBY2543
    PUBR spiral hose without ends 4/2.5 mm - length 2 m
    612 Kč –4 %
    PUBR spiral hose without ends 4/2.5 mm - length 2 m
    up to 30 days
    481 Kč excl. VAT
    582 Kč

    High quality red spiral hose 4/2.5 mm with extreme spiral return capability of 3 m and long life without quick couplings. Made of branded granular elastollan 1190. Designed for...

    Code: PUBR2543
    PUBS spiral hose without ends 4/2.5 mm - length 2 m
    612 Kč –4 %
    PUBS spiral hose without ends 4/2.5 mm - length 2 m
    up to 30 days
    481 Kč excl. VAT
    582 Kč

    High quality black 4/2.5 mm spiral hose with extreme spiral return capability of 3 m and long life without quick couplers. Made of branded granular elastollan 1190. Designed for...

    Code: PUBS2543
    PUBM spiral hose without ends 4/2.5 mm - length 3 m
    651 Kč –4 %
    PUBM spiral hose without ends 4/2.5 mm - length 3 m
    Stock (3 pcs)
    512 Kč excl. VAT
    619 Kč

    High-quality blue spiral hose 4/2.5 mm with extreme spiral return capability of 4 m and long service life. Made of branded granulate elastollan 1190 without end quick...

    Code: PUBM2544
    Show all related products Previous product Next product

    Product detailed description

    Quick coupling with overflow nut and protective spring - ES4TQF

    • universal quick couplings in one-sided closable design
    • materials used:
    • body, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring: stainless steel 1.4310
    • pins: stainless steel 1.4305
    • seal: NBR
    • nipple: brass MS 58
    • designed for compressed air in industry and crafts, can be used for water and other media

    Additional parameters

    Category: EC quick couplings with nut and protective spring
    Pressure: 35 bar
    DN: 7,2
    Material: Brass
    Maximum flow rate: 1,100 l/min
    Medium: Air
    For the hose: 4 x 6 mm
    Temperature: -20/+100°C
    Thorn on the hose: 4 mm
    Closure: One-sided closed
    Safety ring: No

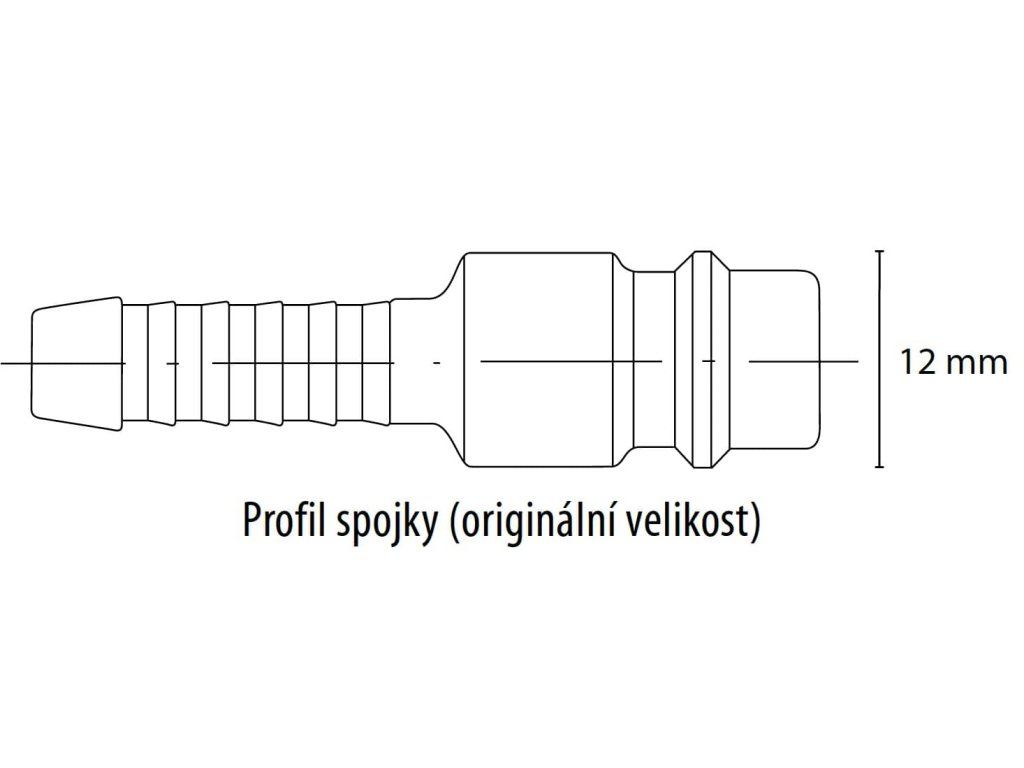

    Clutch profile: EC (DN7.2)
    Male / female: Quick coupler
    Connection system: Quick couplings
