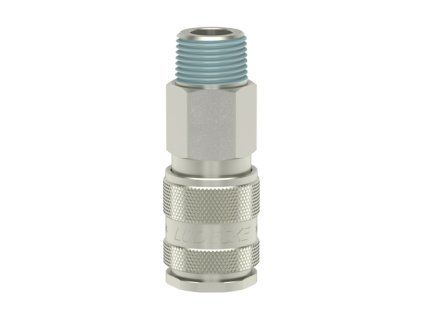

    ESOI quick couplings with external thread

    Rychlospojky s vnějším závitem, švýcarský a benelux profil
    • high flow rate with low pressure gradient due to optimised passage and routing in the valve
    • made of nickel-plated brass MS 58 and hardened steel, perbunan NBR seal
    • interchangeable with ARO 210 and ORION 44510
    • designed for compressed air in industry, crafts, etc.

    Quick couplings with external tapered thread - Swiss and Benelux profile
    Ord. C. Thread
    "    		 SW Length
    mm    		 Diameter
    mm    		 Thread length
    mm    		 Weight
    g
    ESOI14A R1/4" 19 61 23 12 95
    ESOI38A R3/8" 19 61 23 12 98
    ESOI12A R1/2" 22 66 23 17 120
