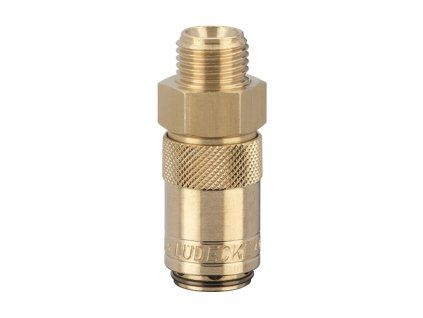

    ESDMF quick couplings with straight male thread

    Rychlospojky s přímým vnějším závitem, bez/s ventilem
    • with flat seal and two-hand operation (type "Jiffy-Tite")
    • optional full flow, single or double-sided closable
    • only for hoses with standard shank
    • made of brass MS 58 and 2.0401, sealing made of FKM
    • designed for plastic joints and moulds with hot and cold water, tempering oils

    Quick couplings with straight male thread, w/o valve (internal taper DIN3863)
    Without valve With valve Thread SW l d Thread length Nipple width Lightness Weight
    ESDMF14A ESDMF14AAB 1/4" 17 46 17 13 9,4 6 60
    ESDMF38A ESDMF38AAB 3/8" 19 46 17 13 9,4 6 70
    ESDMF101A ESDMF101AAB M10X1 17 44 17 7 9,4 6 60
    ESDMF1415A ESDMF1415AAB M14X1.5 17 46 17 13 9,4 6 60
    ESDMF1615A ESDMF1615AAB M16X1.5 19 46 17 13 9,4 6 70

    Bestsellers

    Quick coupling with straight external thread M16x1.5
    824 Kč –4 %
    Quick coupling with straight external thread M16x1.5
    up to 14 days
    Code: ESDMF1615AAB
    Was: 824 Kč  (–4 %)
    783 Kč
    (647 Kč excl. VAT)
    Quick coupling with straight external thread M16x1.5
    676 Kč –5 %
    Quick coupling with straight external thread M16x1.5
    up to 14 days
    Code: ESDMF1615A
    Was: 676 Kč  (–5 %)
    642 Kč
    (531 Kč excl. VAT)
    Quick coupling with straight external thread M14x1.5
    783 Kč –5 %
    Quick coupling with straight external thread M14x1.5
    up to 14 days
    Code: ESDMF1415AAB
    Was: 783 Kč  (–5 %)
    743 Kč
    (614 Kč excl. VAT)
    Quick coupling with straight external thread M14x1.5
    636 Kč –5 %
    Quick coupling with straight external thread M14x1.5
    up to 14 days
    Code: ESDMF1415A
    Was: 636 Kč  (–5 %)
    604 Kč
    (499 Kč excl. VAT)
    Quick coupling with straight external thread M10x1
    783 Kč –5 %
    Quick coupling with straight external thread M10x1
    up to 14 days
    Code: ESDMF101AAB
    Was: 783 Kč  (–5 %)
    743 Kč
    (614 Kč excl. VAT)
    Quick coupling with straight external thread M10x1
    636 Kč –5 %
    Quick coupling with straight external thread M10x1
    up to 14 days
    Code: ESDMF101A
    Was: 636 Kč  (–5 %)
    604 Kč
    (499 Kč excl. VAT)
    Quick coupling with direct external thread G3/8"
    824 Kč –4 %
    Quick coupling with direct external thread G3/8"
    up to 14 days
    Code: ESDMF38AAB
    Was: 824 Kč  (–4 %)
    783 Kč
    (647 Kč excl. VAT)
    Quick coupling with direct external thread G3/8"
    676 Kč –5 %
    Quick coupling with direct external thread G3/8"
    up to 14 days
    Code: ESDMF38A
    Was: 676 Kč  (–5 %)
    642 Kč
    (531 Kč excl. VAT)
    Quick coupling with direct external thread G1/4"
    783 Kč –5 %
    Quick coupling with direct external thread G1/4"
    Stock (50 pcs)
    Code: ESDMF14AAB
    Was: 783 Kč  (–5 %)
    743 Kč
    (614 Kč excl. VAT)
    Quick coupling with direct external thread G1/4"
    636 Kč –5 %
    Quick coupling with direct external thread G1/4"
    up to 14 days
    Code: ESDMF14A
    Was: 636 Kč  (–5 %)
    604 Kč
    (499 Kč excl. VAT)
    Show more products
    10 items total
    Quick coupling with direct external thread G1/4"
    783 Kč –5 %
    Quick coupling with direct external thread G1/4"
    Stock (50 pcs)
    614 Kč excl. VAT
    743 Kč / pcs

    Quick coupling with straight male thread G1/4" with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system. Adjustable flow to...

    Code: ESDMF14AAB
    Quick coupling with direct external thread G1/4"
    636 Kč –5 %
    Quick coupling with direct external thread G1/4"
    up to 14 days
    499 Kč excl. VAT
    604 Kč / pcs

    Quick coupling with straight male thread G1/4" without valve with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system....

    Code: ESDMF14A
    Quick coupling with direct external thread G3/8"
    824 Kč –4 %
    Quick coupling with direct external thread G3/8"
    up to 14 days
    647 Kč excl. VAT
    783 Kč / pcs

    Quick coupling with straight male thread G3/8" with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system. Adjustable flow to...

    Code: ESDMF38AAB
    Quick coupling with direct external thread G3/8"
    676 Kč –5 %
    Quick coupling with direct external thread G3/8"
    up to 14 days
    531 Kč excl. VAT
    642 Kč / pcs

    Quick coupling with straight male thread G3/8" without valve with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system....

    Code: ESDMF38A
    Quick coupling with straight external thread M10x1
    783 Kč –5 %
    Quick coupling with straight external thread M10x1
    up to 14 days
    614 Kč excl. VAT
    743 Kč / pcs

    Quick coupling with straight male thread M10x1 with 9,4mm nipple valve. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system. Adjustable...

    Code: ESDMF101AAB
    Quick coupling with straight external thread M10x1
    636 Kč –5 %
    Quick coupling with straight external thread M10x1
    up to 14 days
    499 Kč excl. VAT
    604 Kč / pcs

    Quick coupling with straight external thread M10x1 without valve with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system....

    Code: ESDMF101A
    Quick coupling with straight external thread M14x1.5
    783 Kč –5 %
    Quick coupling with straight external thread M14x1.5
    up to 14 days
    614 Kč excl. VAT
    743 Kč / pcs

    Quick coupling with straight external thread M14x1,5 with 9,4mm valve nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system....

    Code: ESDMF1415AAB
    Quick coupling with straight external thread M14x1.5
    636 Kč –5 %
    Quick coupling with straight external thread M14x1.5
    up to 14 days
    499 Kč excl. VAT
    604 Kč / pcs

    Quick coupling with straight external thread M14x1,5 without valve with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite...

    Code: ESDMF1415A
    Quick coupling with straight external thread M16x1.5
    824 Kč –4 %
    Quick coupling with straight external thread M16x1.5
    up to 14 days
    647 Kč excl. VAT
    783 Kč / pcs

    Quick coupling with straight external thread M16x1,5 with 9,4mm valve nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite system....

    Code: ESDMF1615AAB
    Quick coupling with straight external thread M16x1.5
    676 Kč –5 %
    Quick coupling with straight external thread M16x1.5
    up to 14 days
    531 Kč excl. VAT
    642 Kč / pcs

    Quick coupling with straight external thread M16x1,5 without valve with 9,4mm nipple. Made of brass MS58 and 2.0401. The quick coupling has a flat coupling and Jiffy-Tite...

    Code: ESDMF1615A
