    Quick couplings EC hose shank 90°

    Rychlospojka ES DN7,2 s trnem na hadici 90°
    • universal quick couplings in one-sided closable design
    • materials used:
    • body, locking ring, valve body, valve: brass MS 58
    • springs, spacer ring: stainless steel 1.4310
    • pins: stainless steel 1.4305
    • seal: NBR
    • nipple: brass MS 58
    • designed for compressed air in industry and crafts, can be used for water and other media

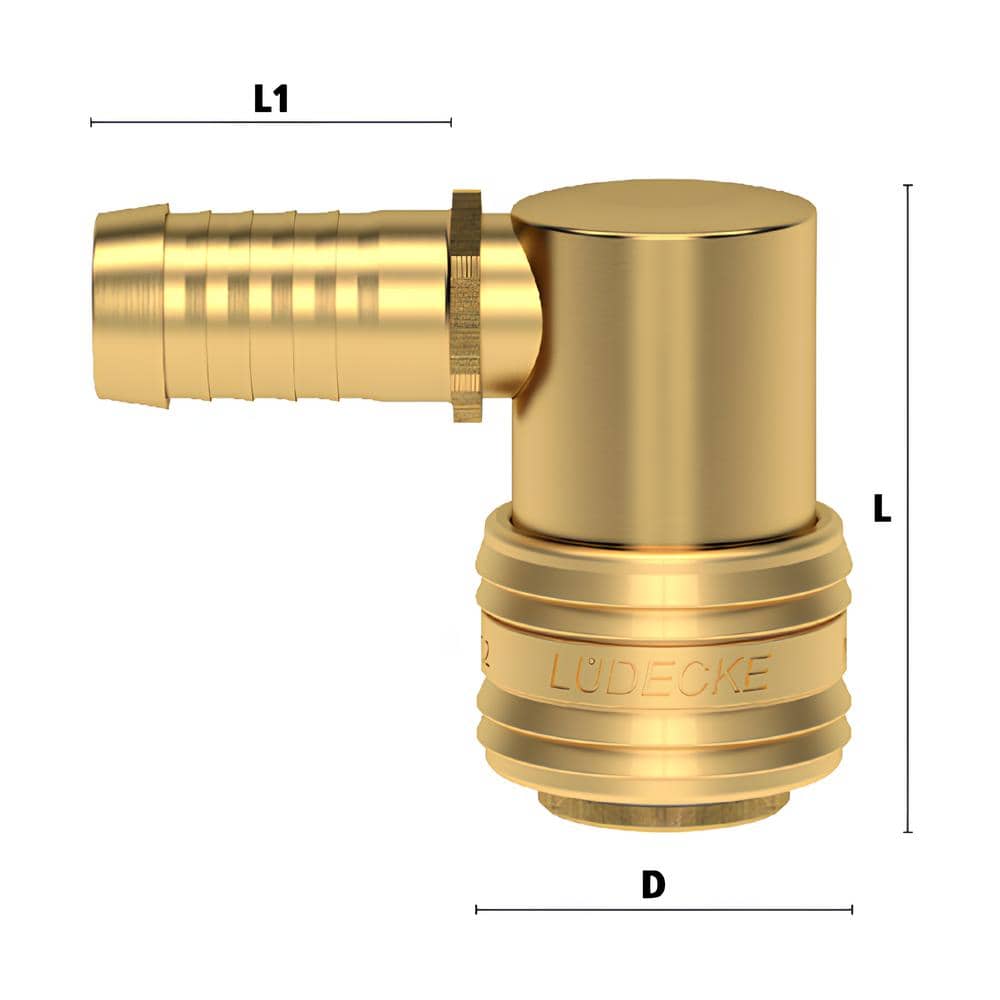

    Quick couplings ES - DN7,2 with hose shank 90°
    Ordering
    number    		 Hose barb
    mm    		 Length
    mm    		 Diameter
    mm    		 Thread length
    mm    		 Weight
    g
    ES6T-90 6 mm 44 27 27 105
    ES9T-90 9 mm 44 27 27 105
    ES13T-90 13 mm 44 27 30 115
