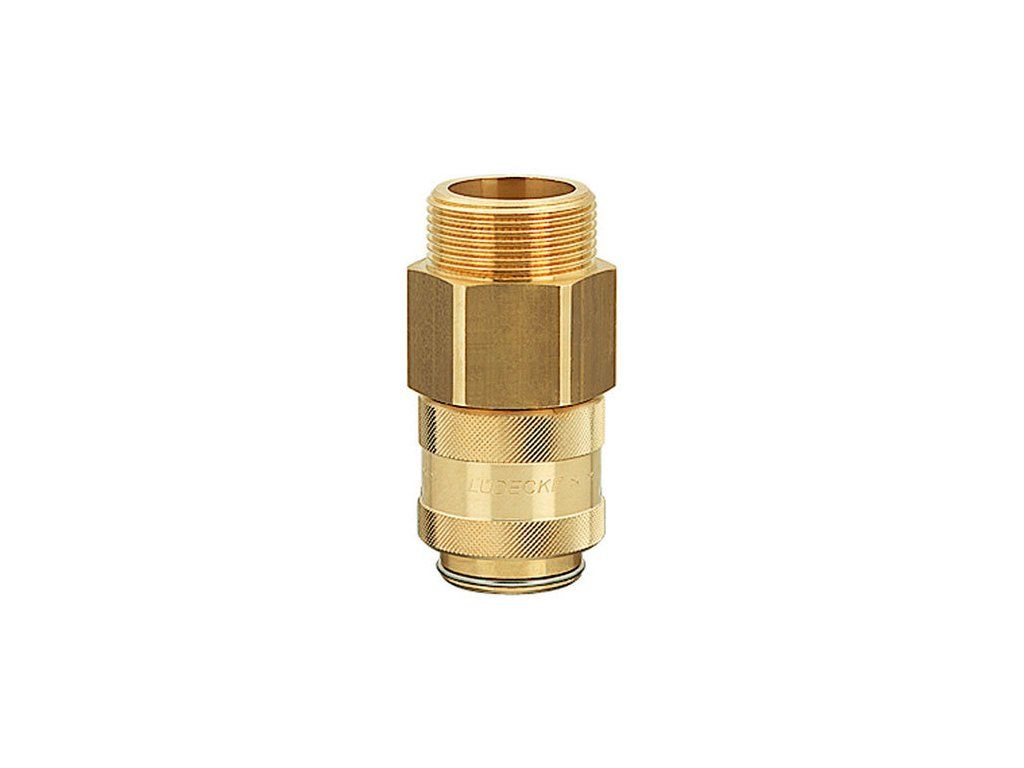

Quick coupling with external thread G1"
Code: ESG10AAB
Related products
Product detailed description
Quick coupling with external thread ESG10AAB
- in pure brass MS58, perbunan gasket
- working temperature -20/+100 °C
- max. flow 8000 l/min, DN19
- high quality and robust, one-sided quick-closing couplings
- very high flow rate at low pressure gradient
- designed for pneumatic tools and machines with extremely high compressed air consumption
Additional parameters
| Category: | Quick couplings with external thread |
|---|---|
| Pressure: | 35 bar |
| DN: | 19 |
| Material: | Brass |
| Maximum flow rate: | 8,000 l/min |
| Medium: | Air |
| Average: | 46 mm |
| Temperature: | -20/+100°C |
| Closure: | One-sided closed |
| Thread: | G 1" |
| Safety ring: | No |
| Clutch profile: | ESG (DN19) |
| Male / female: | Quick coupler |
| Connection system: | Quick couplings |
