Quick coupling with mandrel for hose 45° - 13 mm
Code: ES13T-45
Product detailed description

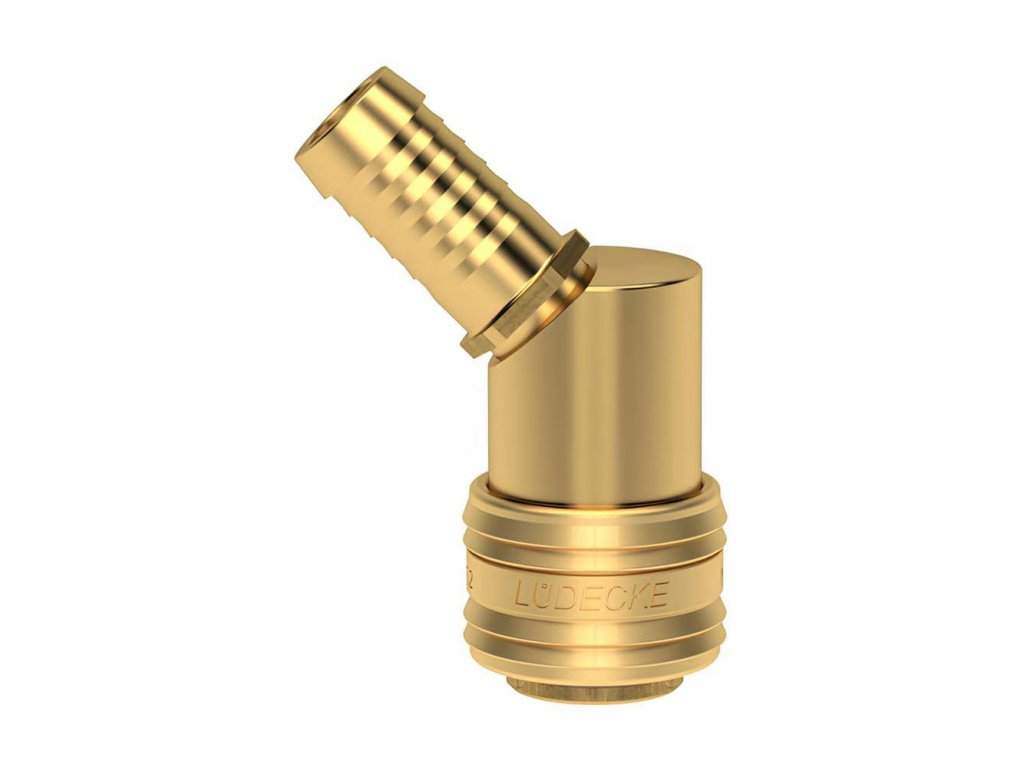

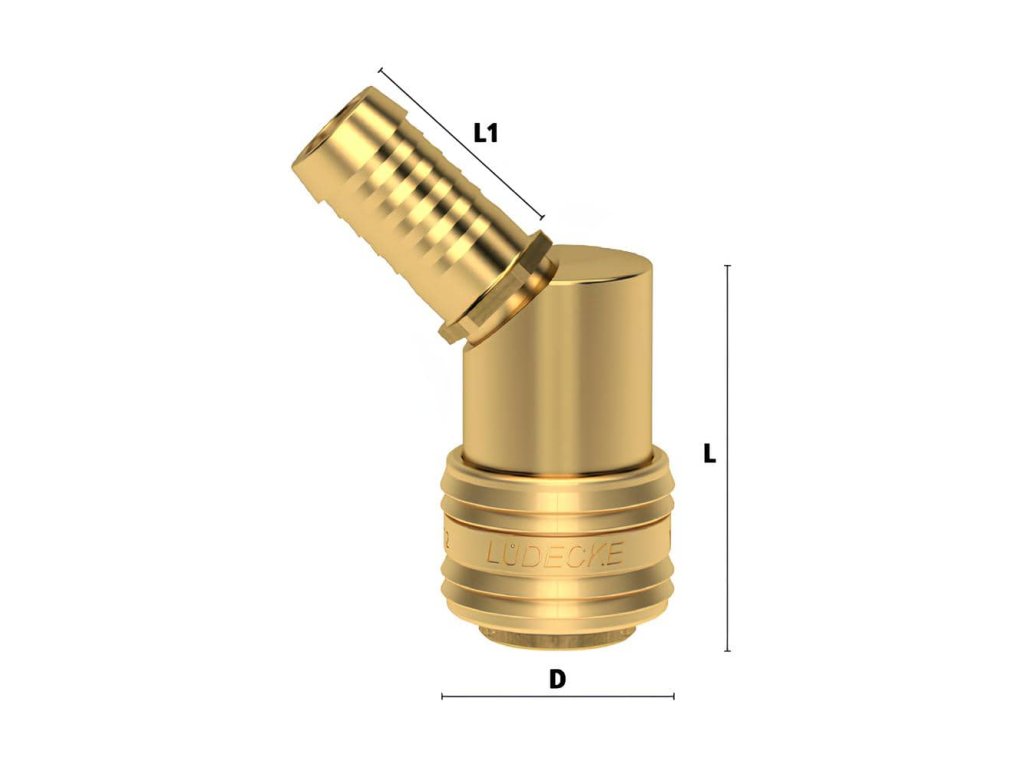

Quick coupling ES DN7,2 with 45° hose shank - ES13T-45
- universal quick couplings in one-sided closable design
- materials used:
- body, locking ring, valve body, valve: brass MS 58
- springs, spacer ring: stainless steel 1.4310
- pins: stainless steel 1.4305
- seal: NBR
- nipple: brass MS 58
- designed for compressed air in industry and crafts, can be used for water and other media
Additional parameters
| Category: | QUICK COUPLINGS ES HOSE BARB 45° |
|---|---|
| Pressure: | 35 bar |
| DN: | 7,2 |
| Material: | Brass |
| Maximum flow rate: | 1,100 l/min |
| Medium: | Air |
| Temperature: | -20/+100°C |
| Thorn on the hose: | 13 mm |
| Closure: | One-sided closed |
| Safety ring: | No |
| Clutch profile: | EC (DN7.2) |
| Male / female: | Quick coupler |
| Connection system: | Quick couplings |
