Quick coupling with direct internal thread G3/8"

Quick coupling with direct internal thread G3/8"
876 Kč –5 %
876 Kč –5 % 832 Kč / pcs 688 Kč excl. VAT
up to 14 days
Set up a watchdog
We deliver to:
07.04.2025
Delivery offer

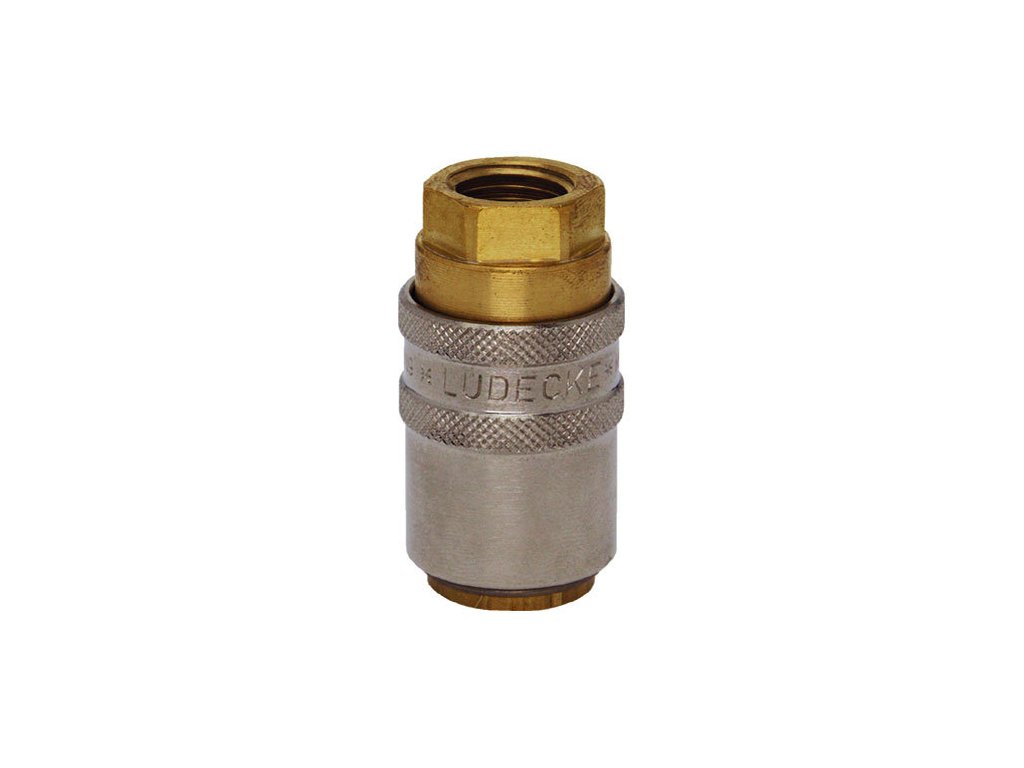

Quick coupling with straight female thread G3/8" without valve with 13 mm nipple. Made of brass MS58 and 2.0401. Adjustable flow to free flow, double-sided and single-sided closure. Designed for plastic machines and moulds with hot and cold water and tempering oils.

Detailed information

Code: ESH38I
Brand: Lüdecke
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Quick coupling with straight female thread ESH38I

  • optional full flow, single or double-sided closable
  • made of brass MS58 and 2.0401, sealing made of FKM
  • designed for plastic joints and moulds with hot and cold water, tempering oils
Product is included in the following categories: Fasteners Quick couplings and nipples ESH quick couplings ESH quick couplings

Technical parameters

Category: ESH quick couplings with straight female thread
Version: Without valve
Pressure: 15 bar (15 atm, 218 PSI, 1,5 MPa)
DN: 9
Material: Brass, Steel
Medium: Air, Water, Oil, Vacuum
Average: 22 mm
Temperature: -20/+200°C
Closure: One-sided closed
Thread: G 3/8"
Safety ring: No
Clutch profile: ESH (DN9)
Male / female: Quick coupler
Connection system: Plastic quick couplings
