Quick coupling with direct internal thread G3/4"
Code: ESHG34IAB
Related products
Product detailed description

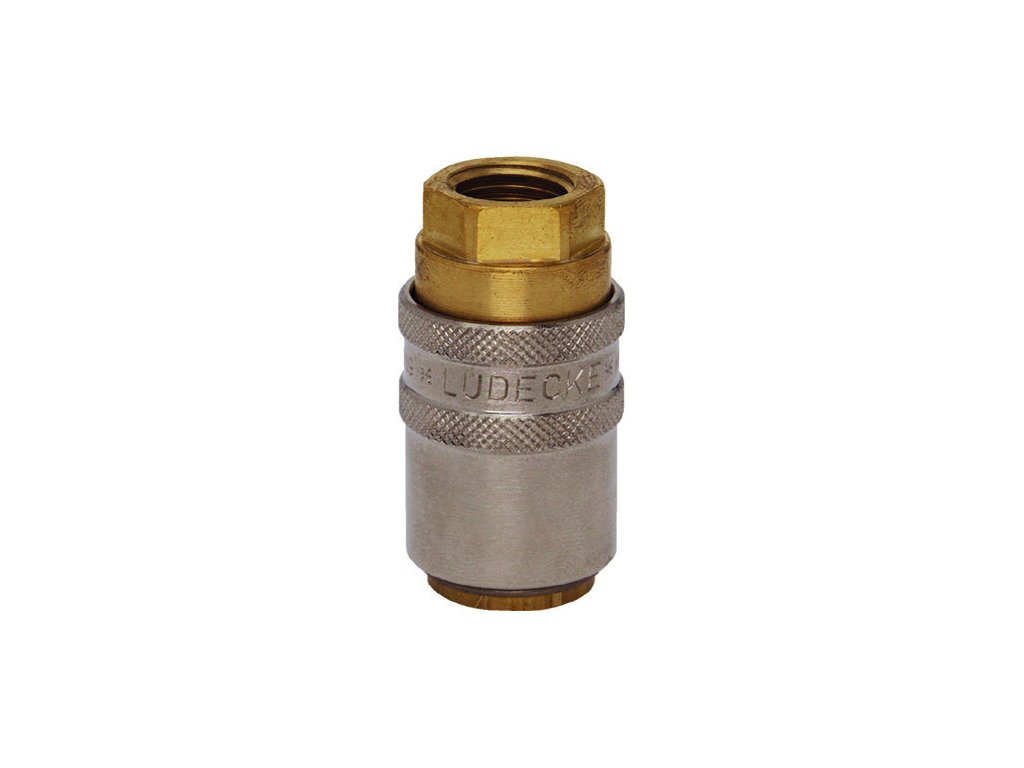

Quick coupling with straight female thread ESHG34IAB
- optional full flow, single or double-sided closable
- made of brass MS 58 and 2.0401, sealing made of FKM
- designed for plastic joints and moulds with hot and cold water, tempering oils
Additional parameters
| Category: | ESHG quick couplings with female thread |
|---|---|
| Version: | With valve |
| Pressure: | 15 bar |
| DN: | 13 |
| Material: | Brass, Steel |
| Medium: | Air, Water, Oil, Vacuum |
| Average: | 31 |
| Temperature: | -20/+200°C |
| Closure: | Closed on both sides |
| Thread: | G 3/4" |
| Safety ring: | No |
| Clutch profile: | ESHG (DN13) |
| Male / female: | Quick coupler |
| Connection system: | Plastic quick couplings |
