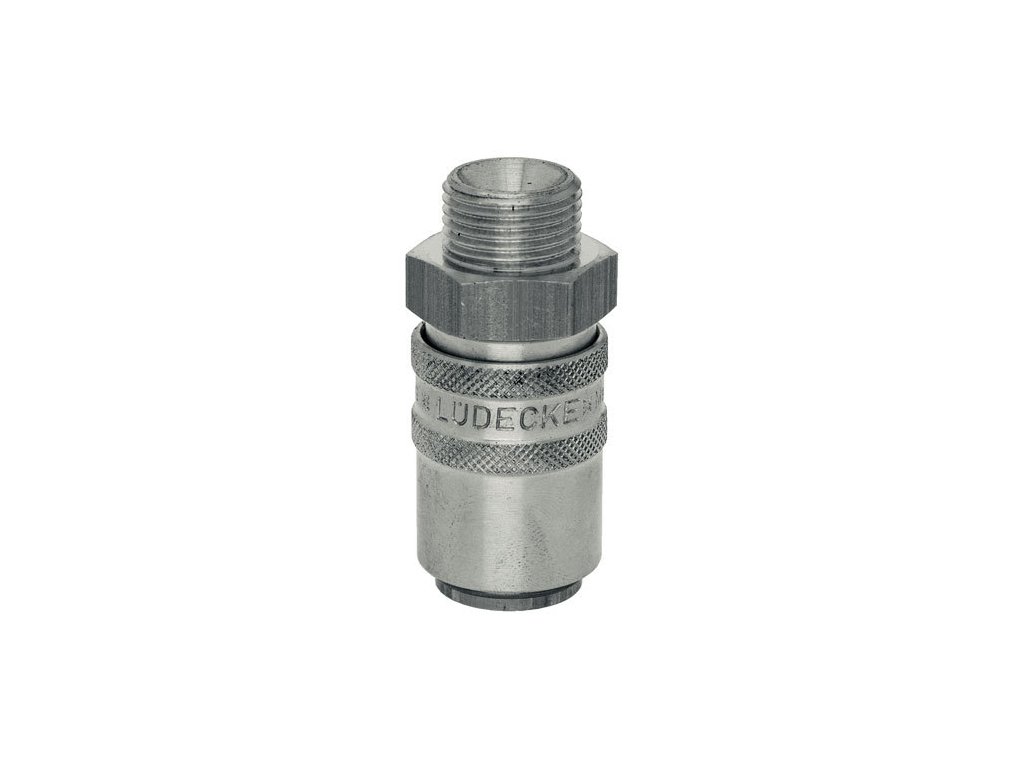

Quick coupling with direct external thread G1/4"
Code: ESHME14AAB
Product detailed description
Quick coupling with straight male thread ESHME14AAB
- optional full flow, single or double-sided closable
- made of stainless steel 1.4305 and 1.4310, FKM sealing
- designed for plastic joints and moulds with hot and cold water, tempering oils
Additional parameters
| Category: | ESHME quick couplings with straight external thread in stainless steel |
|---|---|
| Pressure: | 15 bar |
| DN: | 6 |
| Material: | Stainless steel |
| Medium: | Air, Water, Oil, Vacuum |
| Average: | 17 mm |
| Temperature: | -20/+200°C |
| Closure: | Closed on both sides |
| Thread: | G 1/4" |
| Safety ring: | No |
| Clutch profile: | ESHM (DN6) |
| Male / female: | Quick coupler |
| Connection system: | Plastic quick couplings |
