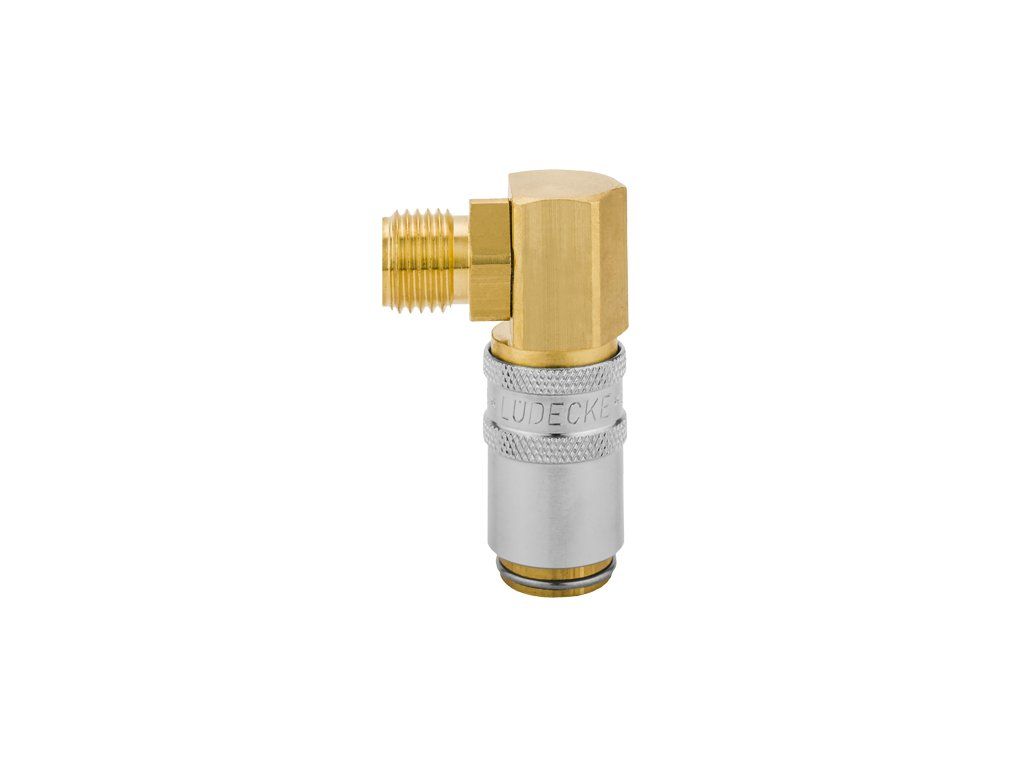

Quick coupling with 90° external thread G1/4"

Quick coupling with 90° external thread G1/4"
1 021 Kč –5 %
1 021 Kč –5 % 970 Kč / pcs 802 Kč excl. VAT 4 850 Kč / 5 pcs
up to 14 days 1 pcs
Set up a watchdog
In store 0 pcs
External warehouse 1 pcs
We deliver to:
25.04.2025
Delivery offer
Quick coupling with 90° male thread G1/4" with 9mm nipple size valve. Optional full flow, single or double-sided closable. Made of brass MS 58 and 2.0401. Use for plastic machines and moulds with hot and cold water, tempering oils.

Detailed information

Code: ESHM14A-90AB
Brand: Lüdecke
Add to inquiry
Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Quick coupling with 90° male thread ESHM14A-90AB

  • optional full flow, single or double-sided closable
  • made of brass MS 58/2.0401 and stainless steel, FKM potefloned seal
  • designed for plastic joints and moulds with hot and cold water, tempering oils
Product is included in the following categories: Fasteners Quick couplings and nipples ESHM quick couplings Quick couplings

Technical parameters

Category: ESHM quick couplings with 90° male thread
Pressure: 15 bar (15 atm, 218 PSI, 1,5 MPa)
DN: 6
Material: Brass, Steel
Medium: Air, Water, Oil, Vacuum
Average: 17 mm
Temperature: -20/+200°C
Closure: Closed on both sides
Thread: G 1/4"
Safety ring: No
Clutch profile: ESHM (DN6)
Male / female: Quick coupler
Connection system: Plastic quick couplings
