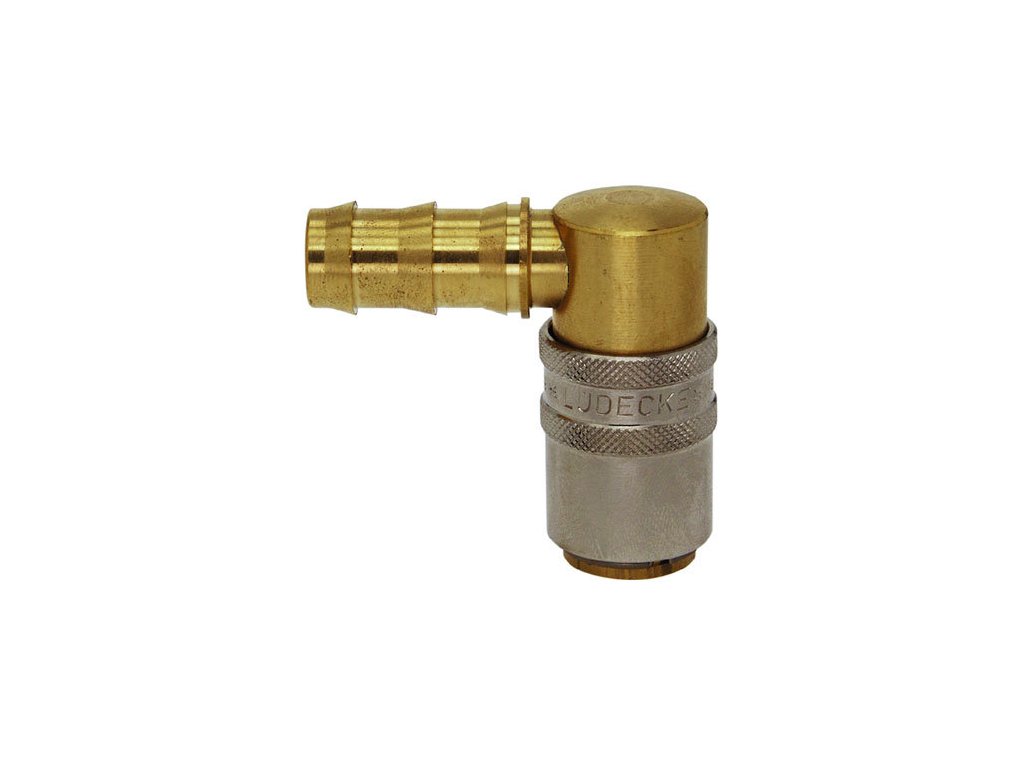

Quick coupling with 90° mandrel for 13 mm push-in hose
Code: ESH13T-90
Product detailed description
Quick coupling with 90° shank for hose nozzle ESH13T-90
- optional full flow, single or double-sided closable
- made of brass MS58 and 2.0401, sealing made of FKM
- designed for plastic joints and moulds with hot and cold water, tempering oils
Additional parameters
| Category: | ESH quick couplings with 90° shank for nozzle hose |
|---|---|
| Pressure: | 15 bar |
| Mandrel length: | 33 mm |
| DN: | 9 |
| Material: | Brass, Steel |
| Medium: | Air, Water, Oil, Vacuum |
| Average: | 22 mm |
| Temperature: | -20/+200°C |
| Thorn on the hose: | 13 mm |
| Closure: | One-sided closed |
| Safety ring: | No |
| Clutch profile: | ESH (DN9) |
| Male / female: | Quick coupler |
| Connection system: | Plastic quick couplings |
