Fixed quick coupler with protective spring 5 x 8 mm

Code: ES5SVK
570 Kč –4 %
Fixed quick coupler with protective spring 5 x 8 mm
570 Kč –4 % 542 Kč / pcs 448 Kč excl. VAT
Stock (4 pcs)
Delivery to:
03.04.2025
Delivery offer

Fixed quick coupling with protective spring for 5 x 8 mm hose in DN7.2. Designed for spiral hoses. All end caps can be disassembled and are reusable. It is characterized by extreme tensile and compressive strength.

Detailed information

Free shipping
Free shipping
For purchases over 5,000 CZK
We guarantee
We guarantee
Extended warranty and service
Discount voucher
Discount voucher
For every purchase
Return of goods within 30 days
Return of goods within 30 days
Completely at our expense

Product detailed description

Fixed quick coupling with protective spring ES5SVK

  • special series of hose ends made with dimensions exactly for spiral hoses, all ends are disassembled - can be reused
  • construction with extreme resistance to pressure and tension, the swivel design is sealed with a double o-ring and seeger lock
  • external tapered threads with Loctite sealing coating, quick couplings and nipples in dimensions DN7,2 and DN5

Additional parameters

Category: ES-SVK spring-loaded end caps for spiral hoses
Pressure: 15 bar
DN: 7,2
Material: Brass
Medium: Air
For the hose: 5 x 8 mm
Temperature: -40/+85°C
Thorn on the hose: 5 mm

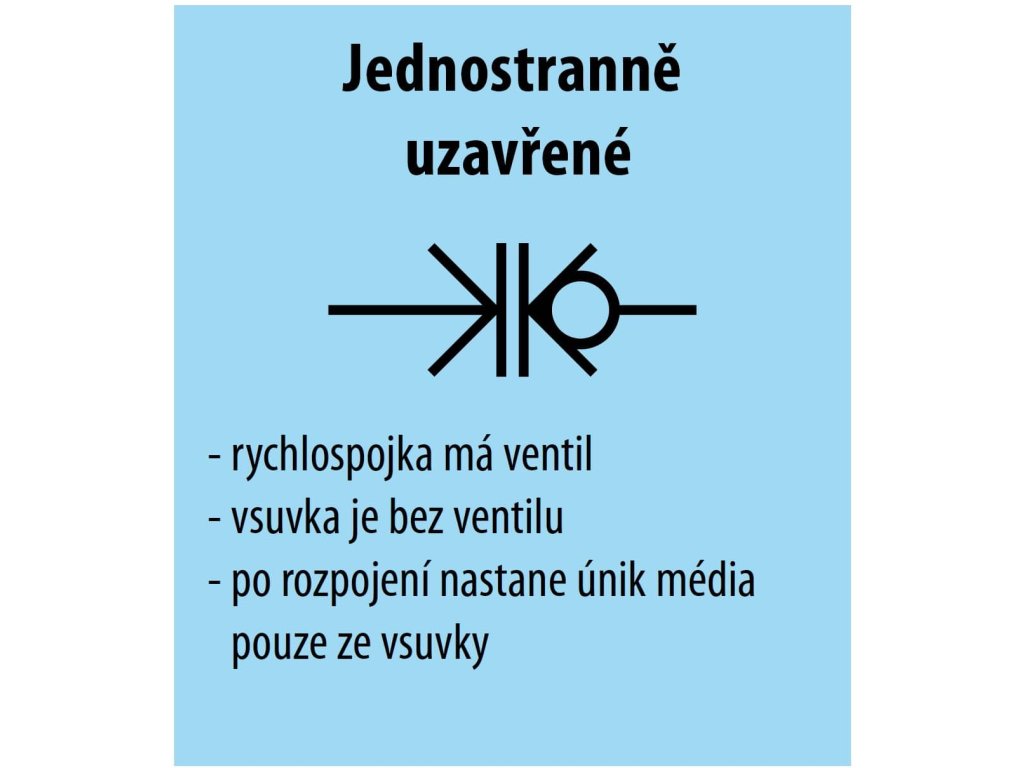

Closure: One-sided closed
Safety ring: No

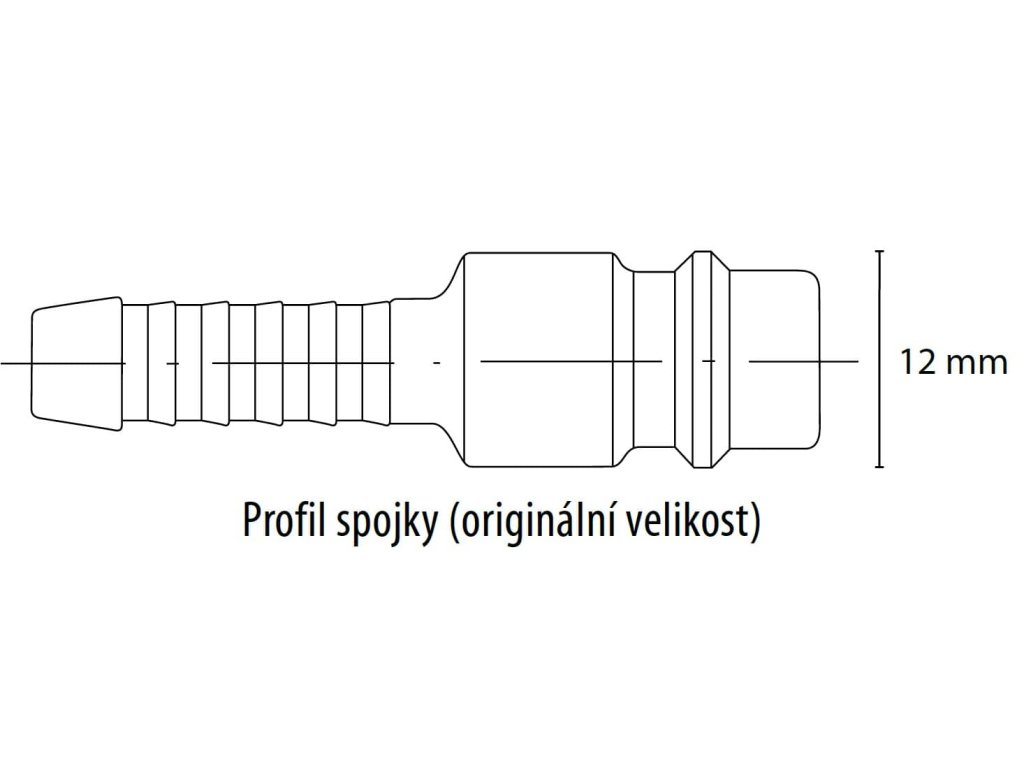

Clutch profile: EC (DN7.2)
Male / female: Quick coupler
Connection system: Quick couplings
