Quick coupling ES-AAB external thread M14x1.5
Code: ES1415AAB
Related products
Product detailed description

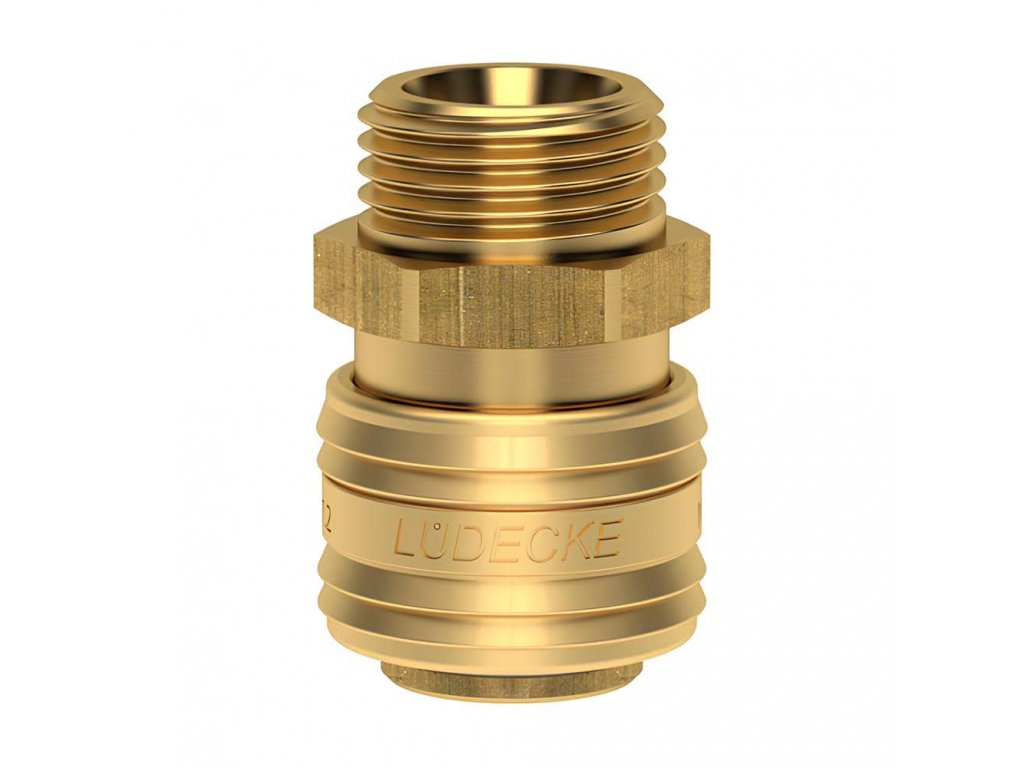

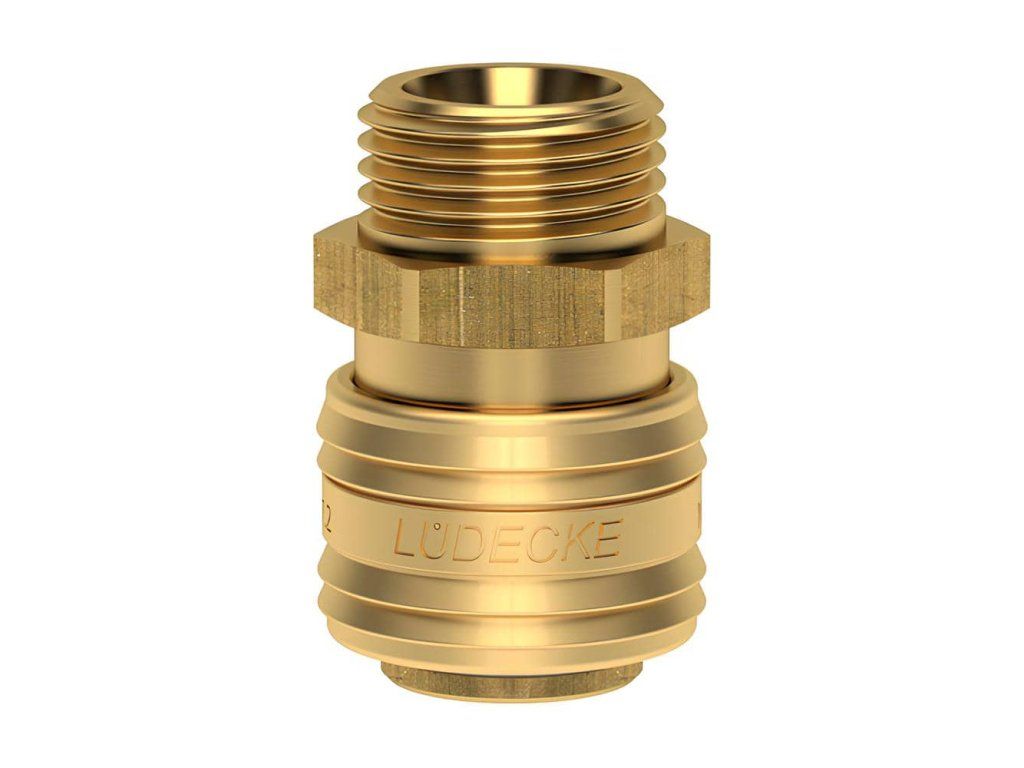

Reversible quick coupling with external pipe thread ES1415AAB
- universal quick couplings in reversible design
- materials used:
- body, locking ring, valve body, valve, connecting parts: brass MS 58
- seal: NBR
- springs, spacer ring, quick coupling pin : Stainless steel 1.4310
- nipple: brass MS 58
- designed especially for universal applications for fluids in mechanical engineering, measuring, control and regulation technology
Additional parameters
| Category: | Quick couplings ES-AAB male thread G - double-sided |
|---|---|
| Pressure: | 35 bar |
| DN: | 7,2 |
| Material: | Brass |
| Medium: | Various |
| Temperature: | -20/+100°C |
| Closure: | Closed on both sides |
| Thread: | M14 x 1.5 |
| Safety ring: | No |
| Clutch profile: | EC (DN7.2) |
| Male / female: | Quick coupler |
| Connection system: | Quick couplings |
