Manually operated valve AM04520

Code: 030261
1 685 Kč –5 %

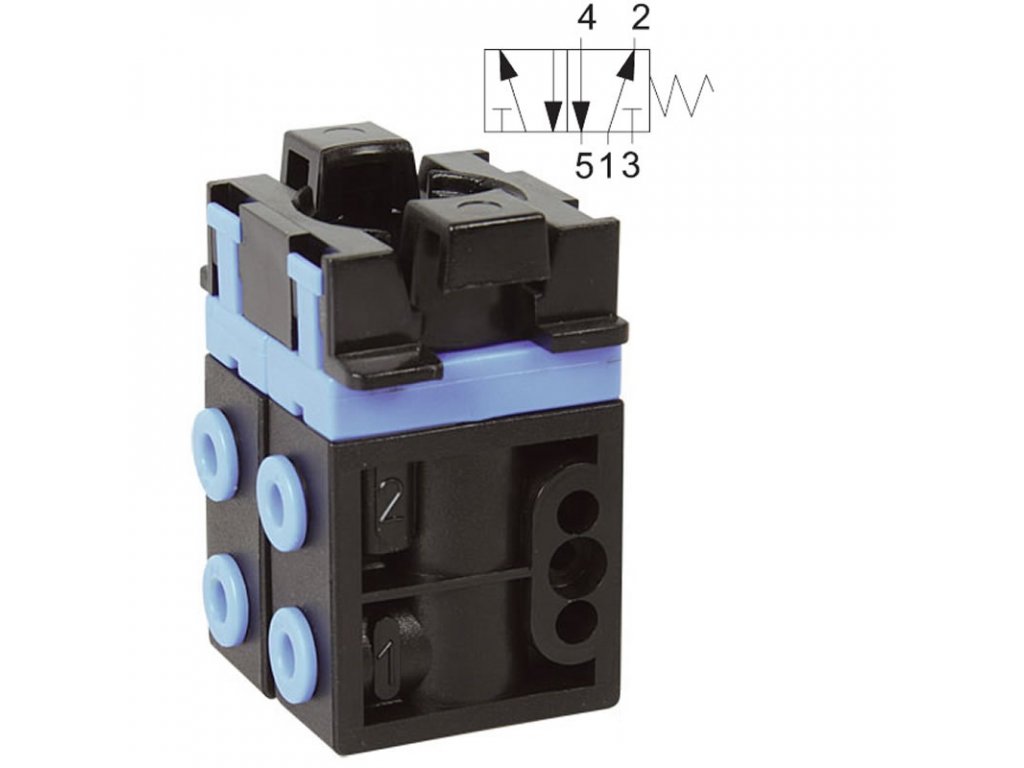

Manually operated valve AM04520
1 685 Kč –5 % 1 600 Kč / pcs 1 322 Kč excl. VAT
up to 14 days
Delivery to:
13.01.2025

Manually operated valve - version 5/2, without locking. Bottom connection using 4 mm socket couplings. Working pressure 0 - 8 bar. Control force 5N. The maximum flow rate is 80 l/min. Miniature base valve for control bodies, designed especially for mounting in control panels and switch cabinet doors.

Detailed information

Product detailed description

AM04520 Manually Operated Valves

  • working pressure 0 - 8 bar, working temperature -20 to +80 °C
  • materials used : body - acetal resin, gasket - NBR
  • miniature base valves for control bodies, designed especially for installation in control panels and switch cabinet doors

Additional parameters

Category: Manually operated valves for superstructure
Pressure: 8 bar
Connecting: Plug connector 4 mm

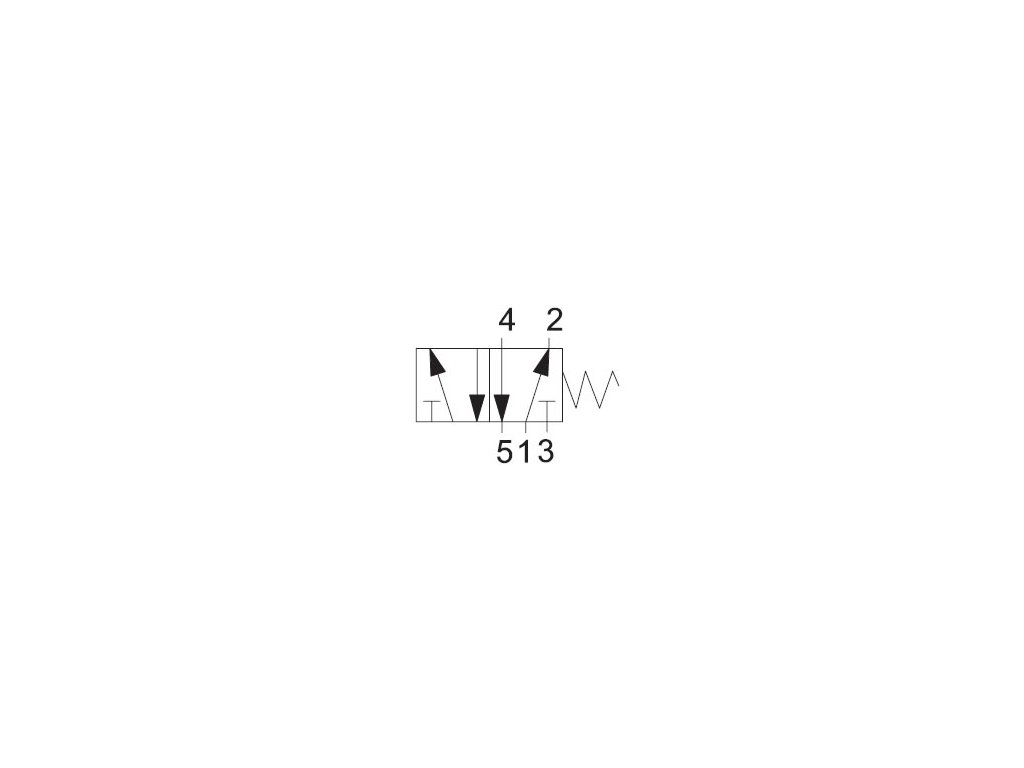

Functions: 5/2
Medium: Air
Controlling power: 10 N
Flow: 80 l/min
Tělo: Acetal
Temperature: -20 / +80 °C
Seals: NBR
Controls: Handheld
Arrest: No
