Manually operated valve AM04132CL

Code: 030254
943 Kč –4 %
am04132cl ventil rucni nastavba
943 Kč –4 % 896 Kč / pcs 740 Kč excl. VAT
Stock (1 pcs)
Delivery to:
30.09.2024

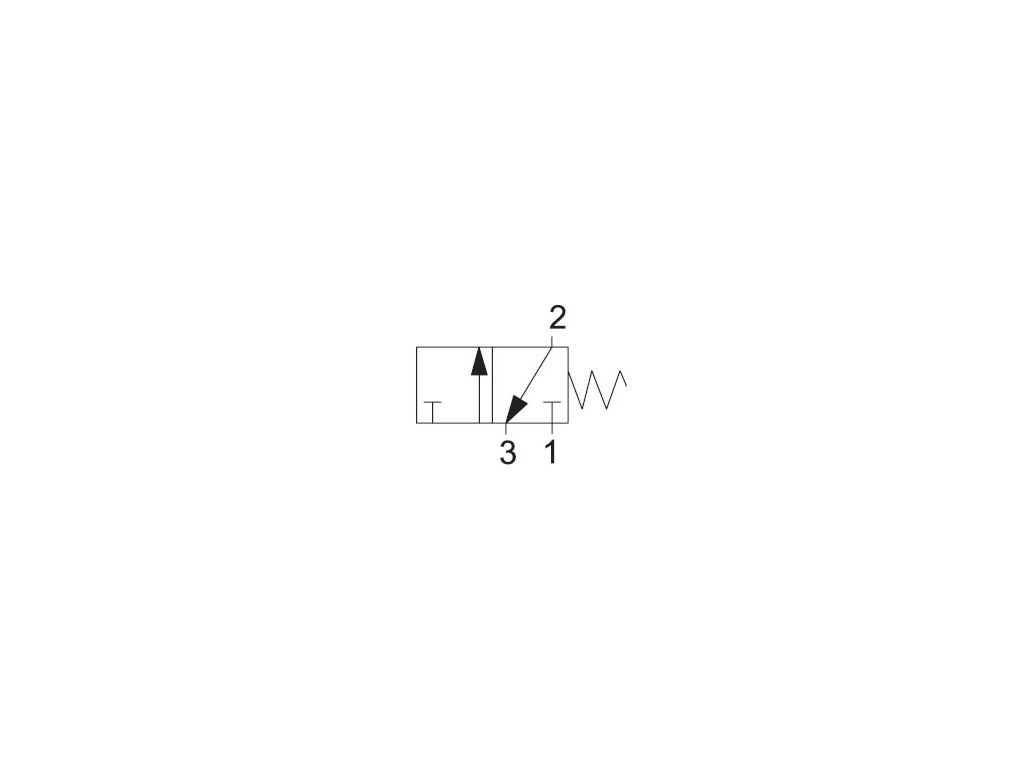

Manually operated valve - version 3/2 NC. Side connection using 4 mm socket couplings. Working pressure 0 - 8 bar. Control force 5N. The maximum flow rate is 80 l/min. Miniature base valve for control bodies, designed especially for mounting in control panels and switch cabinet doors.

Detailed information

Product detailed description

AM04132CL Manually Operated Valves

  • working pressure 0 - 8 bar, working temperature -20 to +80 °C
  • materials used : body - acetal resin, gasket - NBR
  • miniature base valves for control bodies, designed especially for installation in control panels and switch cabinet doors

Additional parameters

Category: Manually operated valves for superstructure
Pressure: 8 Bar
Connecting: Plug connector 4 mm
Functions: 3/2 NC
Medium: Air
Controlling power: 5 N
Flow: 80 l/min
Tělo: Acetal
Temperature: -20 / +80 °C
Seals: NBR
Controls: Handheld

Be the first who will post an article to this item!

Do not fill out this field:

Be the first who will post an article to this item!

Do not fill out this field:

Advanced Pneumatic Industries - Pneumatic Components for Automation Technology

Rich Experience Complements a Wide Range

One of the traditional suppliers of pneumatic components is the company API (Advanced Pneumatic Industries), which was established in the late 1980s near Milan, Italy. More than three decades of experience have helped API to perfect the production of all pneumatic components. At the turn of the new millennium, the company invested a significant amount in its own development and thus began its own production of valves and cylinders. Since 2007, the API catalog has included the widest possible range in its field, and products are soon shipped worldwide. Currently, the company offers manufacture and assembly of valves, cylinders, and mounting accessories not only from aluminum and steel, but also stainless steel materials in its offerings. Beyond the standard offering, API stands out with the option of supplying solutions such as valve terminal assemblies or special ATEX versions.

api-provozovna
API

Quality Certificate at a Good Price

For the entire range of the Italian company, it holds true that customers can rely on it. These are products with good technical properties, while the price remains within reasonable limits. These words are confirmed by hundreds of our satisfied customers (mainly from the industrial sector), for whom API is the preferred brand. Beside words, however, the reliability of the products is demonstrated by rigorous quality systems such as ISO 9001, CISQ, ICIM, or IQNet, whose certificates the products proudly bear. The supplier program currently offers pneumatic cylinders, grippers, rotary actuators, accessories for cylinders and mounting brackets, electromagnetic, pneumatic, mechanical and manual valves, air treatment devices, fittings, couplings, and hoses.

The offered range from API is brought to you by our company Compressors air technology here.
