Manually operated valve AM04132C

Code: 030252
922 Kč –4 %
am04132c ventil
922 Kč –4 % 876 Kč / pcs 724 Kč excl. VAT
Stock (3 pcs)
Delivery to:
20.11.2024

Manually operated valve - version 3/2 NC. Bottom connection using 4 mm socket couplings. Working pressure 0 - 8 bar. Control force 5N. The maximum flow rate is 80 l/min. Miniature base valve for control bodies, designed especially for mounting in control panels and switch cabinet doors.

Detailed information

Product detailed description

AM04132C Manually Operated Valves

  • working pressure 0 - 8 bar, working temperature -20 to +80 °C
  • materials used : body - acetal resin, gasket - NBR
  • miniature base valves for control bodies, designed especially for installation in control panels and switch cabinet doors

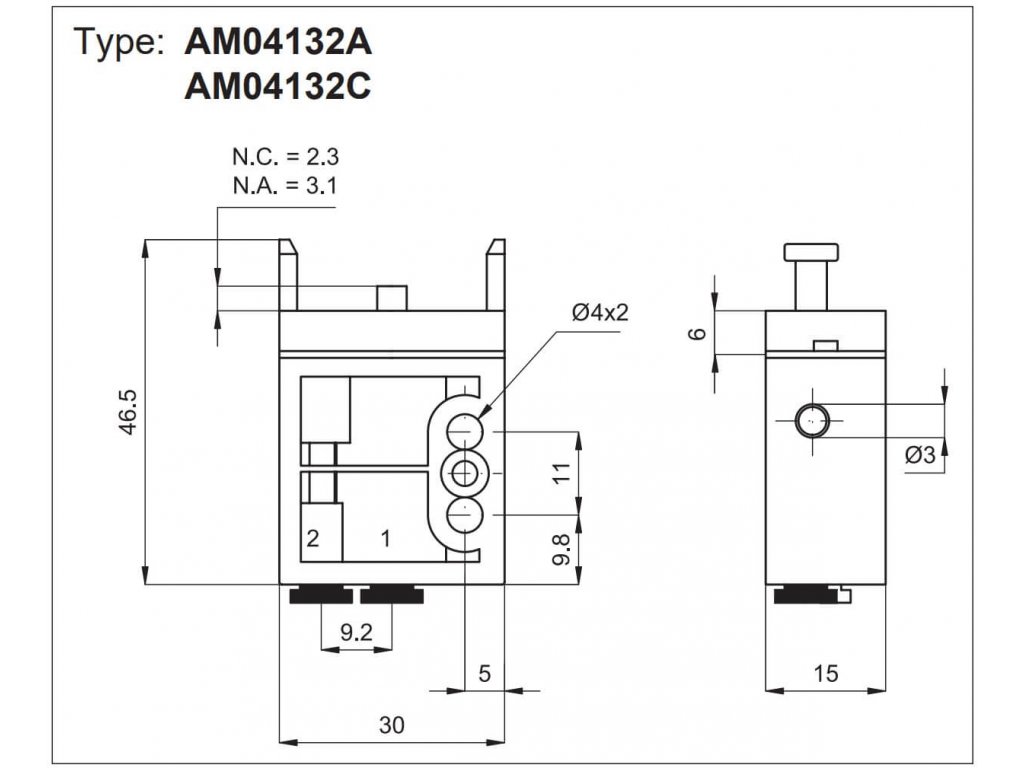

Ručně ovládané ventily výkres AM04132AC API automatizace

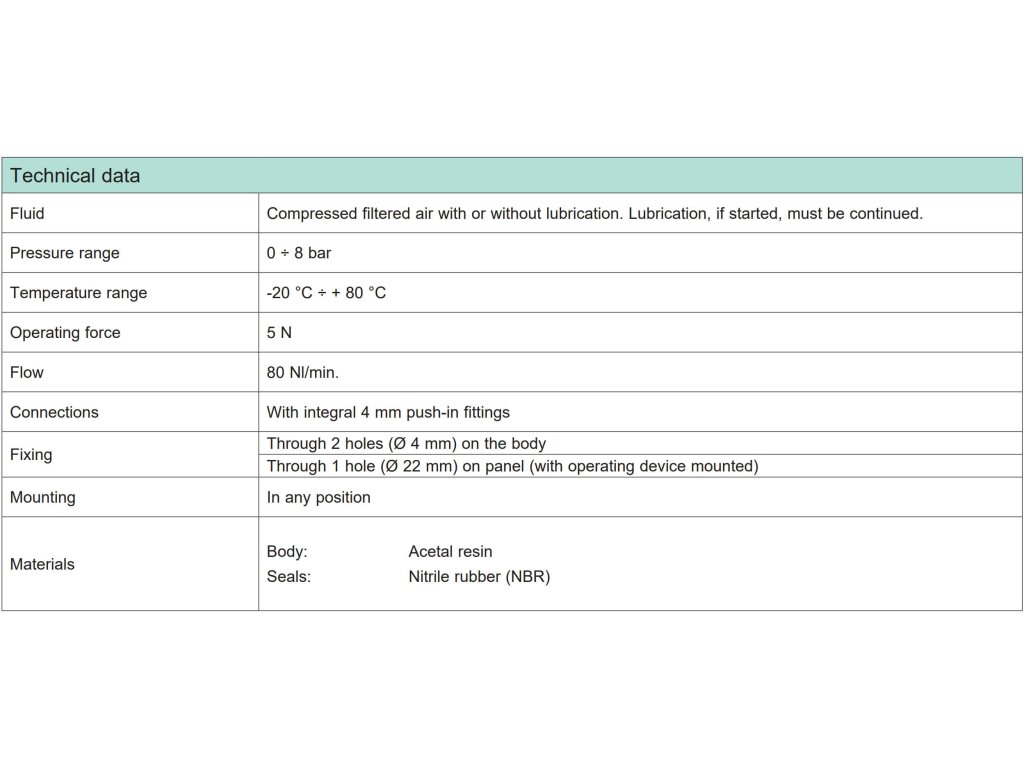

Ručně ovládané ventily tabulka data AM04132A a AM04132AC API automatizace

Additional parameters

Category: Manually operated valves for superstructure
Pressure: 8 bar
Connecting: Plug connector 4 mm
Functions: 3/2 NC
Medium: Air
Controlling power: 5 N
Flow: 80 l/min
Tělo: Acetal
Temperature: -20 / +80 °C
Seals: NBR
Controls: Handheld
