Manually operated valve A1MA271LL

Code: 034081
3 376 Kč –5 %
a1ma171ll rucni ventil vzduch automatizace
3 376 Kč –5 % 3 207 Kč / pcs 2 650 Kč excl. VAT
Stock (9 pcs)
Delivery to:
30.09.2024

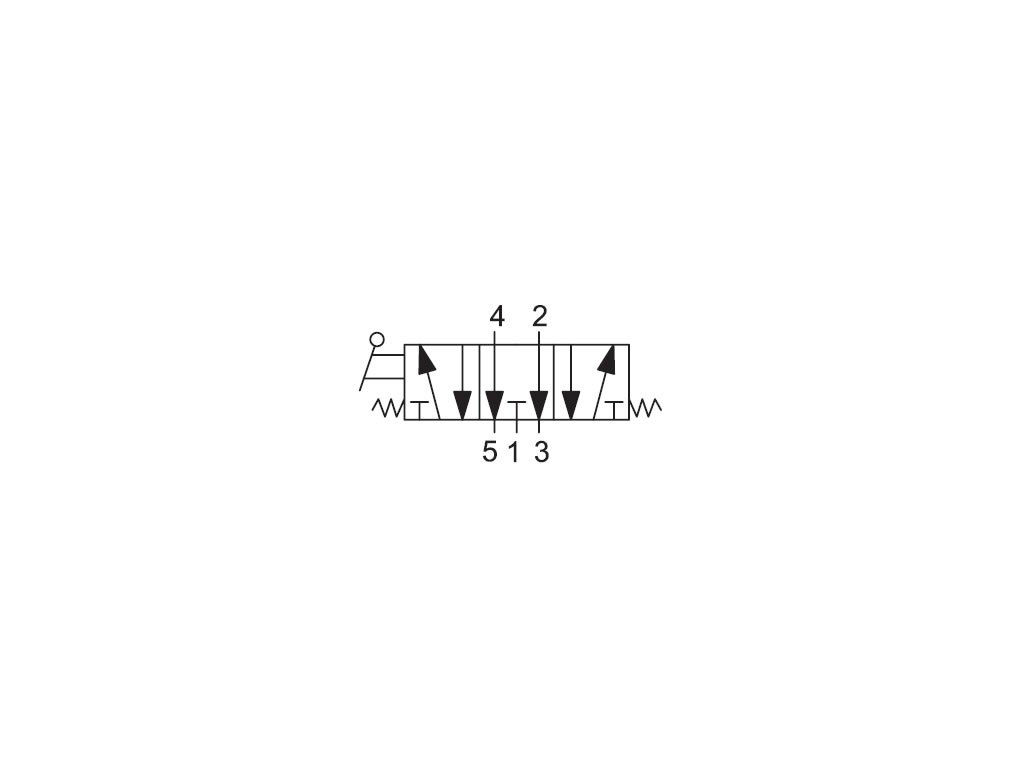

Manually operated valve - design 5/3, lever 90°, without lock, middle position vented with 1/4" threads. Working pressure 0 -10 bar, working temperature: -10 to +80 °C, materials used: body - aluminium/acetal resin, gasket - NBR.

Detailed information

Product detailed description

Manually operated valve A1MA271LL

  • series of lever and pushbutton valves
  • working pressure 0 -10 bar, working temperature: -10 to +80 °C
  • materials used: body - aluminium/acetal resin, gasket - NBR

Additional parameters

Category: Manually operated pneumatic valves 1/4"
Pressure: 10 bars
Connecting: 1/4"
Functions: 5/3 middle position ventilated
Medium: Air
Flow: 1,700 l/min
Lightness: 8 mm
Tělo: Aluminum / acetal
Temperature: -10 / +80 °C
Seals: NBR
Controls: Handheld
Description: Lever 90°
Arrest: No
