    Home / Fasteners / Plastic socket couplings; socket blue / Distribution couplings; reduced / Distribution clutch reduced 6 - 8

    Distribution clutch reduced 6 - 8

    Code: PKG-68
    Tip
    Not rated
    175 Kč –10 %
    Distribution clutch reduced 6 - 8
    175 Kč –10 % 157 Kč / pcs 130 Kč excl. VAT
    Stock (81 pcs)
    Delivery to:
    22.11.2024

    Socket coupling 8 mm inlet 3 x 6 mm reduced tap and 8 mm outlet. Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology. Reduced size and weight for quick and easy installation of plastic tubing.

    Detailed information

    Product detailed description

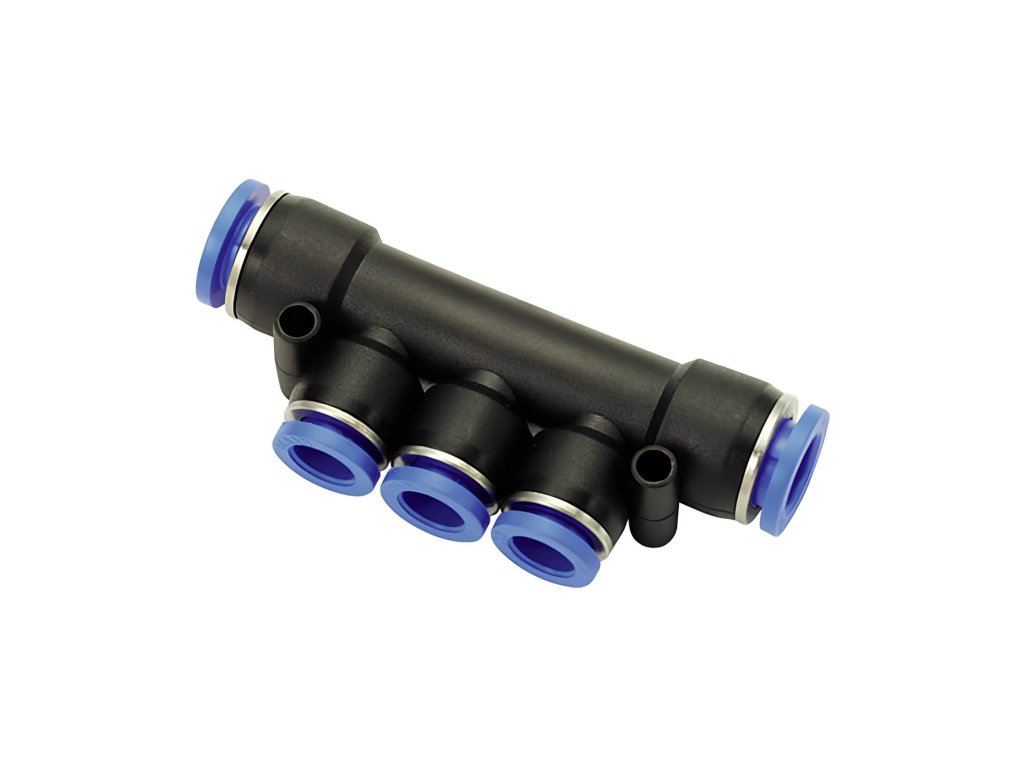

    Plastic socket coupling 8 - 6 mm

    • Socket couplings with reduced dimensions and weight, for quick and easy assembly of plastic tubing
    • Materials used : nylon, polyurethane and nickel-plated brass MS 58, threads with Teflon coating or O-ring sealing
    • Designed especially for automation, measuring and control technology and pneumatic compressed air distribution in industry, engineering and automotive technology.

    Additional parameters

    Category: Reduced distribution plug connectors
    Pressure: 10 bars
    A tube: 2 x 8 mm
    Material: Brass, PU
    Medium: Compressed air
    Working temperature: -10 / +60 °C
    Reducing: 3 x 6 mm
    Width: 28 mm
    Connection system: Plug-in system
